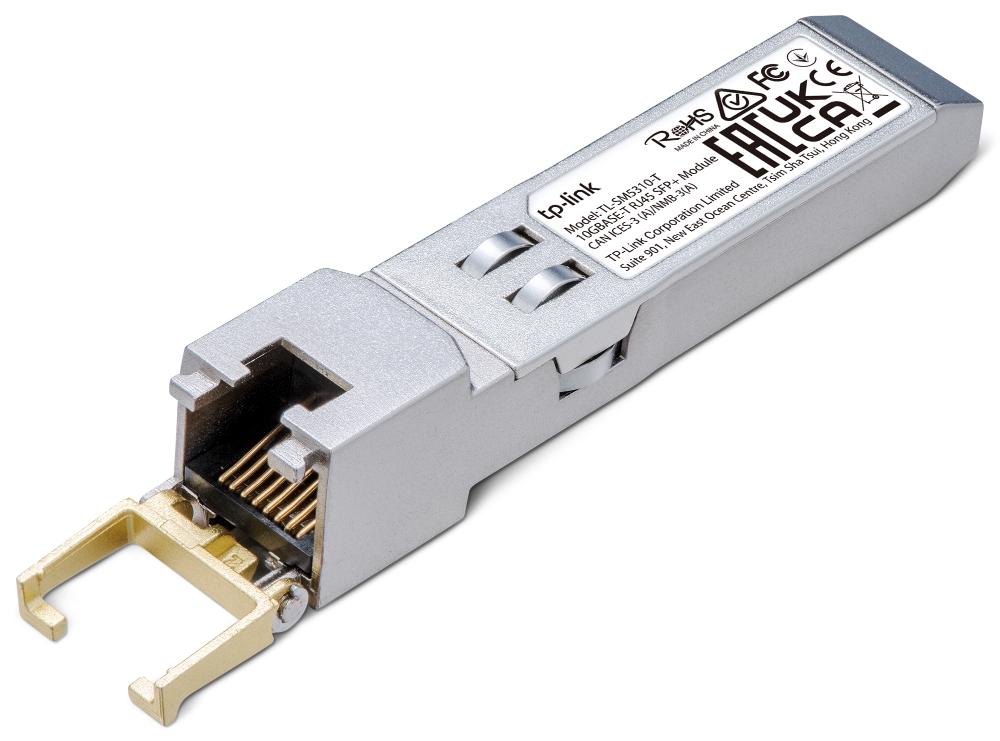

10G BASE-T RJ45 SFP+ Module

Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
Transmit data up to 30mx at 10 Gbps (UTP cat.6a or above)
Support DDM (Temperature and Voltage)
Hot-Pluggable SFP+ Footprint Features
Support TX Disable function
Commercial Product Operating Temperature Range: 0-70 C
Fully Metallic Enclosure for Low EMI Specifications: Hardware Features
– Hot Swappable: Yes Media Converter & Module
– Dimensions (WxDxH): 2.7×0.5×0.5 in (67.4×13.75×13.8 mm) Transceiver
– Standards and Protocols: IEEE Std 802.3, 802.3ab, 802.3bz, 802.3an
– Power Supply: 3.3...V
– Max. Cable Length:
– 100BASE-TX: UTP cat. 5 or above (max. 100m)
– 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
– 10GBASE-T: UTP cat.6a or above (max. 30m)
– Data Rate: 10.3 Gbps
– Port Type: 1× 10G RJ45 Port
– Safety & Emission: FCC, CE, RoHS Environment
– Operating Temperature: 0-70 (32-158 )
– Storage Temperature: -40-85 (-40-185 ) What’s in the box
10G BASE-T RJ45 SFP+ Module
Installation Guide
