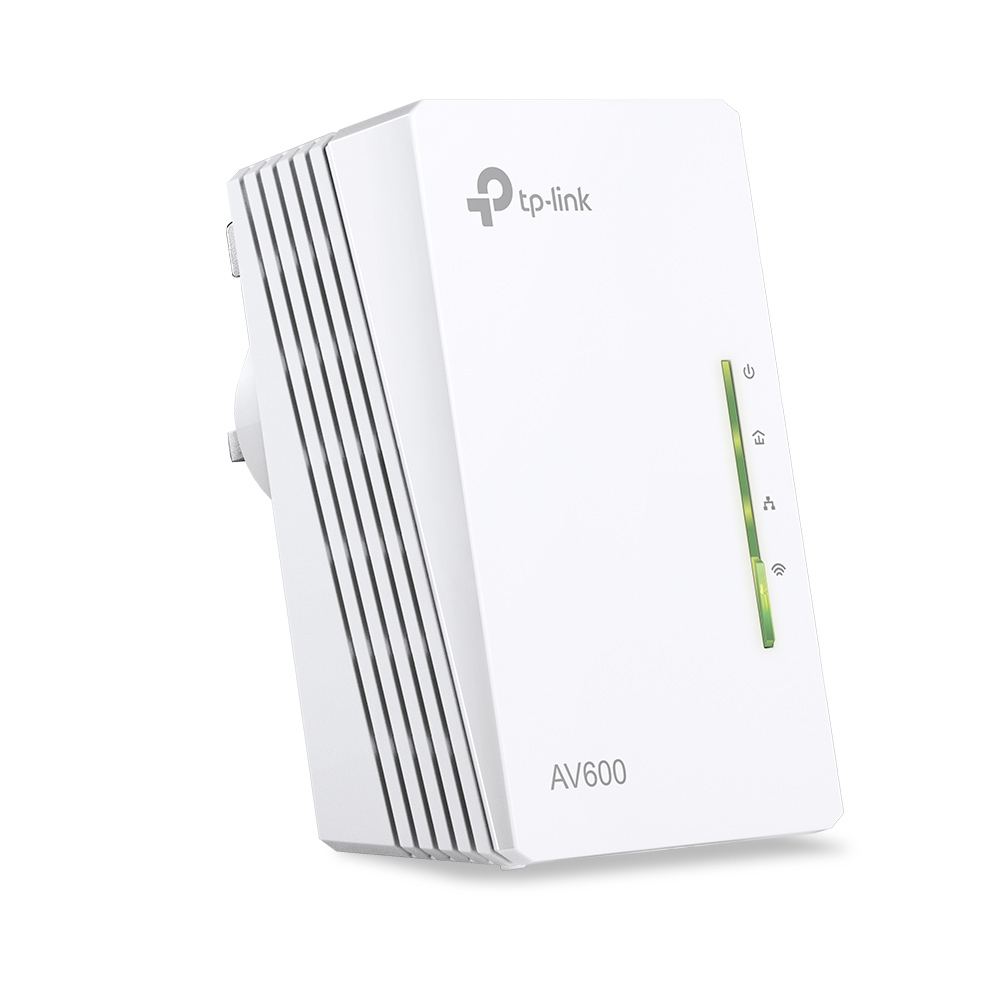

300Mbps AV600 Wi-Fi Powerline Extender

Extend wired and wireless network to any room using your home’s existing electrical system One Touch Super Range Extension – Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network HomePlug AV standard providing up to 600Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office HARDWARE FEATURES Interface:<...span> 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption: Maximum – 5.308W (220V/50Hz)
Typical – 5.086W (220V/50Hz)
Standby – 4.170W (220V/50Hz)
LED Indicator PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions: 94×54×40mm
Range: 300 Meters over electrical circuit WIRELESS FEATURES
Frequency: 2.4-2.4835GHz
Signal Rate: 11n –  Up to 300Mbps(dynamic)
11g – Up to 54Mbps(dynamic)
11b – Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Advanced Functions: Enable/DisableWireless Radio,WMM, Wireless Statistics
Transmission Power: CE:<20dBm(2.4GHz)
FCC:<30dBm What’s in the box
AV600 Powerline Wi-Fi Extender: TL-WPA4220
Ethernet Cable × 1
Quick Installation Guide
