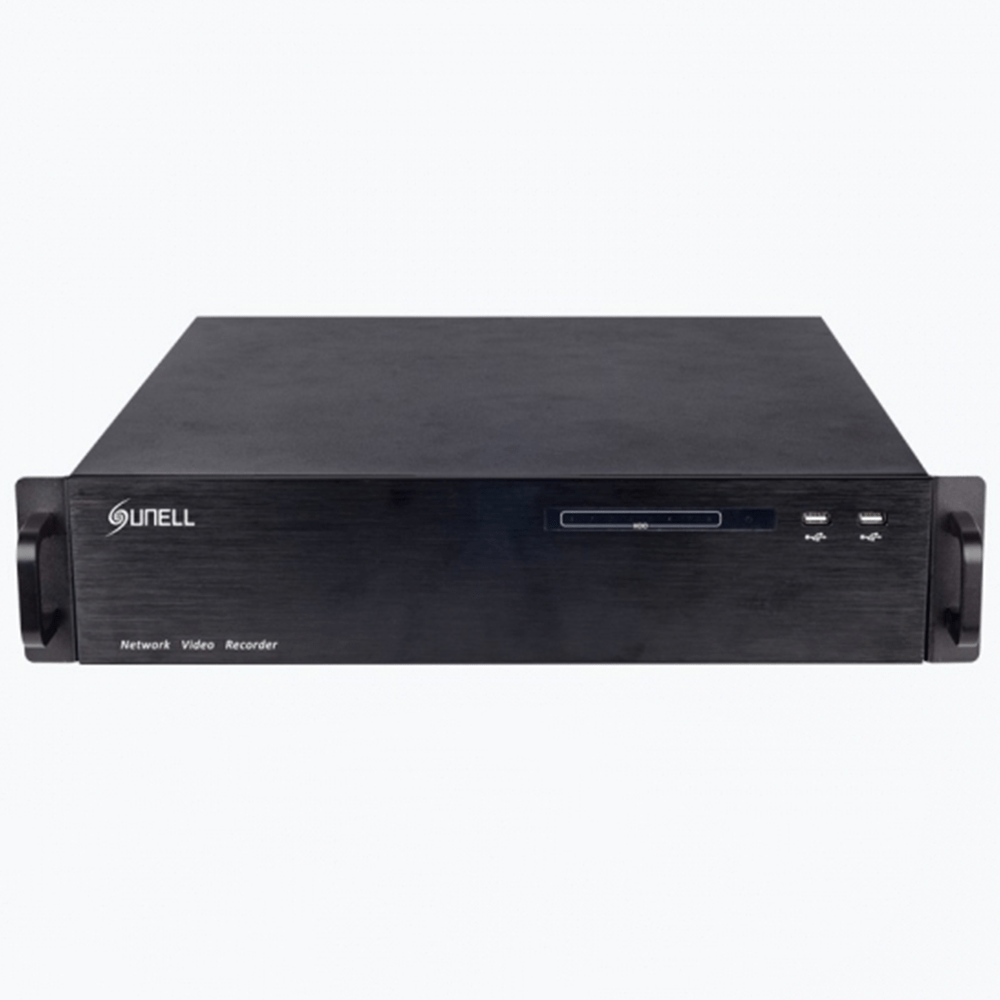

32-ch 8 HDDs 4K NVR

4K IP Camera Video Input and 4K Local Video Output
Supporting 4K IP camera video input and 4K local video output, NVR can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.

Multi-screen Display
Sunell NVR3632 Series supports Multi-screen Output in two way: Synchronous outputs appoint the same channel on different screens, while Auxiliary screen outputs to display various channels independently.

Smart Search
The NVRs support alarm management and event search of Sunell’s video analytics and Smart alarm. Search rules and information such as time search, picture grid, and event (alarm input, motion-detection, camera tamper, video loss, intelligent analysis alarm and abnormal alarm) can be shown on playback search. The user can search by single or multiple event types, playback triggered events and then export these search results to video clips.

Disk Management
The disk management supported by Sunell’s NVR can help users detect the status of the hard disk, prevent partition damage to the hard disk and avoid data loss. And it can help users calculate storage capacity in two ways: capacity and time, so that users can set code stream parameters and storage strategies reasonably.

Intelligent Analysis Management
Sunell’s NVR supports alarm configurations and event search of Sunell Intelligent Analysis (IVS). Once suspicious events detected, the devices can trigger alarms and recordings, helping you improve video surveillance efficiency.

Dual Lan Giga Network Ports
The dual network port function can separate the monitoring from the usual office network and set it in different network segments, which is convenient for management and maintenance. LAN1 is used to configure the default gateway, and LAN2 is used for the internal network.

Versatile Interfaces
The NVR comes with a whole array of function interfaces such as 2 LAN ports, power supply interface, 2 HDMI ports, VGA port, RS232 port, eSATA port, USB port, audio I/O and alarm I/O. The full set of interfaces provides all necessary features for effective surveillance.

Video Input

IP Camera Input
32 Channel

Incoming Bandwidth
320Mbps

Outgoing Bandwidth
320Mbps

Video Output

HDMI Output
HDMI 1: 1920×1080,1440×900, 1280×1024
HDMI 2: 3840×2160,1920×1080, 1440×900, 1280×1024

VGA Output
1920×1080, 1440×900, 1280×1024

Different Source Output

Support
Decoding Capacity

1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch 720P

Dual Stream Support

Multi-screen Display

1st Screen: 1/4/8/9/16/32/36

2nd Screen: 1/4/8/9/16

Recoding

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

16/9/4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network, eSATA

Network

Interface

2 RJ-45 port (10/100/1000Mbps)

PoE

N/A

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF, SDK, CGI

Storage

HDD

8 SATA Ports, up to 12TB for each HDD

eSATA

1 eSATA Port

Cloud Storage

Support
Disk Array

Array Type
RAID 5, RAID 6, RAID 10

Interface

Audio I/O
1/1

Alarm Input
16ch

Alarm Output
4ch

USB
3 ports (USB 2.0 × 2, USB3.0 × 1)
RS485
1 Port
RS232
1 Port

General

Power Supply
AC100 ~ 240V

Power Consumption
< 15 W (without HDD)

Operating Conditions
-10 °C ~ 50 °C (14 °F ~ 122 °F)

Storage Conditions
Less than 90% RH

Certifications
CE/FCC

Dimensions
440 × 433.5 × 93 mm (17.32 × 17.1 × 3.66 inch)

Net Weight
7.2 kg (15.87 lb) without HDD

What’s in the box
1 x NVR
