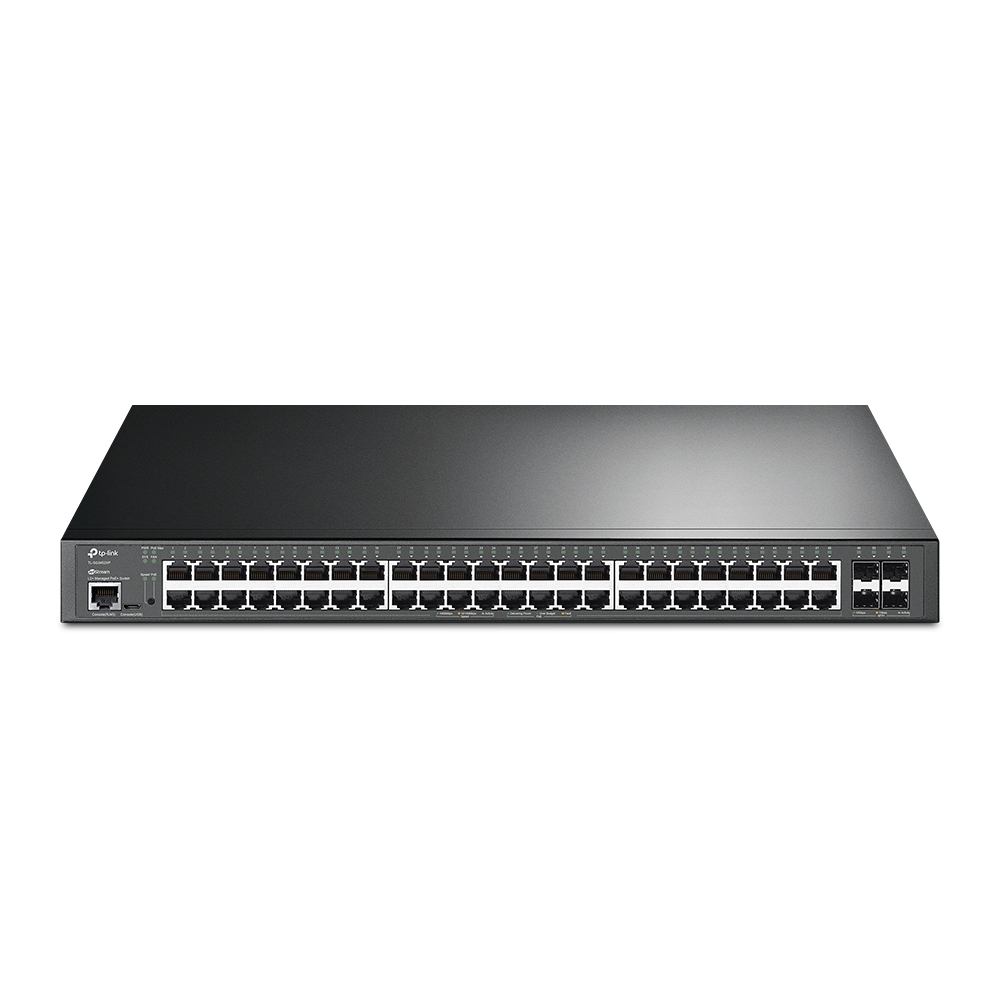

48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications:

Hardware Features
– Interface:
– 48× 10/100/1000 Mbps RJ45 PoE+ Ports
– 4× 10G SFP+ Slots
– 1× RJ45 Console Port
– 1× Micro-USB Console Port
– Fan Quantity: 3
– Power Supply: 100-240 V AC~50/60 Hz
– PoE+ Ports (RJ45):
– Standard: 802.3at/af compliant
– 48 Ports, up to 30 W per port
– Power Budget: 500 W
– Dimensions: 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
– Mounting: Rack Mountable
– Max Power Consumption:
– 49.19 W (no PD connected)
– 635.7 W (with 500 W PD connected)
– Max Heat Dissipation:
– 167.85 BTU/hr (no PD connected)
– 2169.2 BTU/hr (with 500 W PD connected)

Performance
– Switching Capacity: 176 Gbps
– Packet Forwarding Rate: 130.9 Mpps
– MAC Address Table: 16 K
– Packet Buffer Memory: 12 Mbit
– Jumbo Frame: 9 KB

Software Features
– Quality of Service:
– 8 priority queues
– 802.1p CoS/DSCP priority
– Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
– Bandwidth Control: Port/Flow based Rating Limiting
– Mirror, Redirect, Rate Limit, QoS Remark
– L3 Features:
– 16 IPv4/IPv6 Interfaces
– Static Routing: 48 static routes
– Static ARP: 128 Static Entries
– Proxy ARP, Gratuitous ARP
– DHCP Server, DHCP Relay (Interface, VLAN, L2)
– L2 and L2+ Features:
– Link Aggregation: Static, 802.3ad LACP, Up to 8 groups, 8 ports per group
– Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP
– Loopback Detection: Port-based, VLAN-based
– Flow Control: 802.3x, HOL Blocking Prevention
– Mirroring: Port, CPU, One-to-One, Many-to-One, Tx/Rx/Both
– L2 Multicast:
– IGMP Snooping: IGMP v1/v2/v3, Fast Leave, Querier, Authentication
– MLD Snooping: MLD v1/v2, Fast Leave, Querier, Static Group Config, Limited IP Multicast
– MVR, Multicast Filtering: 256 profiles, 16 entries per profile
– Advanced Features:
– Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading
– Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule
– VLAN:
– Max 4K VLAN Groups, 802.1Q Tagged VLAN, MAC VLAN (30 Entries)
– Protocol VLAN (Template 16, Protocol VLAN 16), Private VLAN, GVRP
– VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ
– Voice VLAN
– Access Control List (ACL):
– Time-based ACL, MAC ACL, IP ACL, Combined ACL, Packet Content ACL, IPv6 ACL
– Policies: Mirroring, Redirect, Rate Limit, QoS Remark
– ACL apply to Port/VLAN
– Security:
– IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard (100 Entries)
– IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard (100 Entries)
– DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses per port)
– Broadcast/Multicast/Unicast Storm Control, 802.1X (Port/Mac base authentication, VLAN Assignment, MAB, Guest VLAN, RADIUS authentication)
– AAA (including TACACS+), Port Isolation, Secure web management (HTTPS with SSLv3/TLS 1.2), Secure CLI management (SSHv1/SSHv2)
– IP/Port/MAC based access control

IPv6
– IPv6 Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing
– IPv6 neighbor discovery (ND), Path MTU discovery, ICMP version 6
– TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet v6, IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP)

MIBs
– MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643)
– Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021)
– Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618)
– Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB

Management
– Omada App: Yes, requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
– Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller (OC300/OC200), Omada Software Controller
– Cloud Access: Yes, requires OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
– Zero-Touch Provisioning: Yes, requires Omada Cloud-Based Controller
– Management Features:
– Web-based GUI, CLI through the console port, telnet
– SNMP v1/v2c/v3 (Trap/Inform), RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client
– 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring
– Cable Diagnostics, EEE, Password Recovery, SNTP, System Log

Others
– Certification: CE, FCC, RoHS
– System Requirements: Windows 98SE/NT/2000/XP/Vista/7/8/10/11, MAC OS, NetWare, UNIX, Linux
– Environment:
– Operating Temperature: 0-40 (32-104 )
– Storage Temperature: -40-70 (-40-158 )
– Operating Humidity: 10-90% RH non-condensing
– Storage Humidity: 5-90% RH non-condensing

What’s in the box
TL-SG3452XP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
