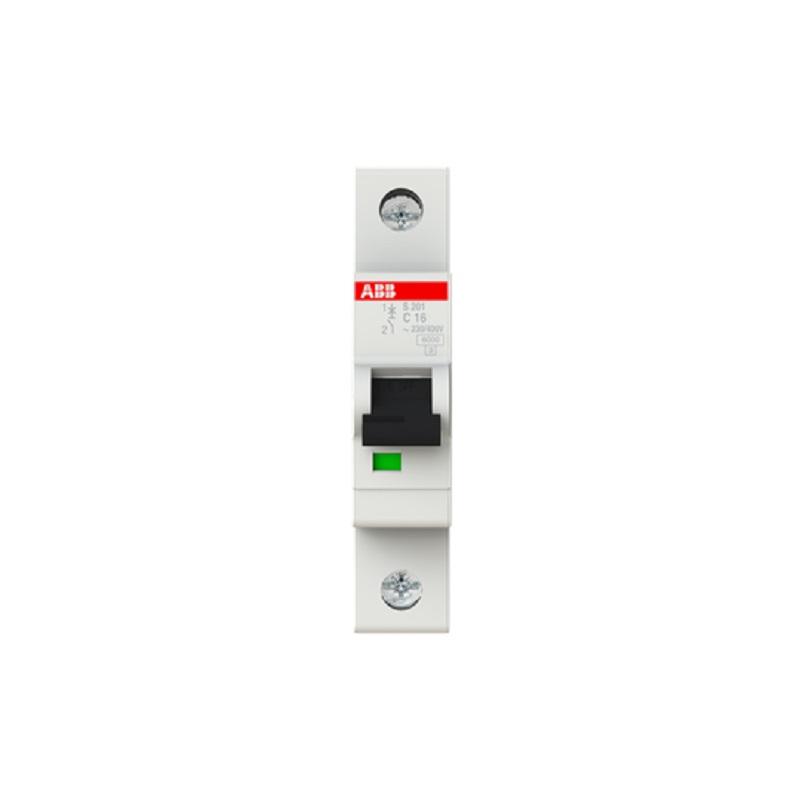

ABB System M Pro 16A Mini Circuit Breaker 1P Curve C

Series: S200
Number of Poles: 1
Current Rating: 16A
Tripping Characteristics: Type C
Rated AC Voltage: 253V
Rated DC Voltage: 72V
Breaking Capacity at Maximum Voltage Rating: 16 kA
Length: 88mm
Width: 17.5mm
Depth: 75.8mm System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The product range S200 ...comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space. ABB is a leading global technology company that energizes the transformation of society and industry to achieve a more productive, sustainable future. By connecting software to its electrification, robotics, automation and motion portfolio, ABB pushes the boundaries of technology to drive performance to new levels. With a history of excellence stretching back more than 130 years, ABB’s success is driven by about 110,000 talented employees in over 100 countries. What’s in the box
1 x Circuit breaker
