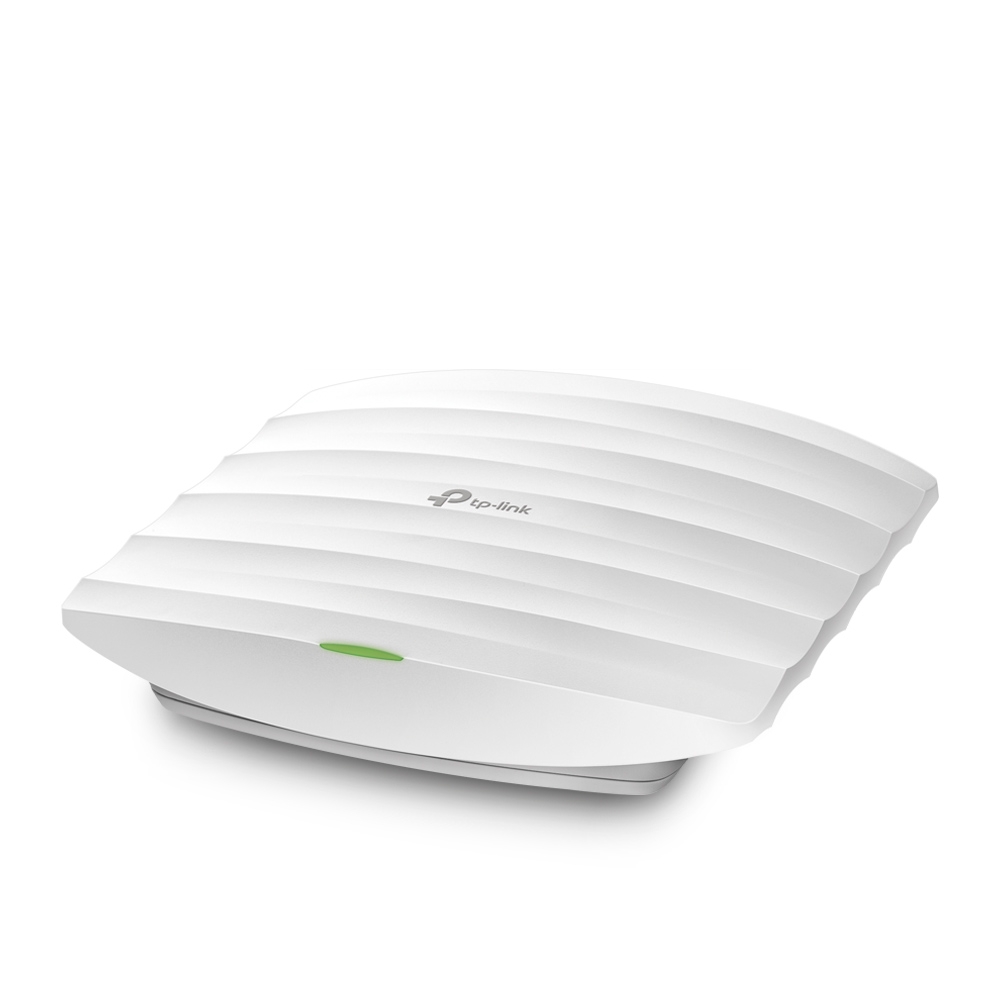

Ac1350 Wireless Dual Band Ceiling/Wall Access Point

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
– Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
– Free EAP Controller Software lets administrators easily manage hundreds of EAPs
– Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
– Captive portal provides a convenient method for guest authentication
– Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
– MU-MIMO means access points simultaneously transfer data ...with multiple devices, speeding up connections
– Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience Supports management VLAN for an enhanced network management
Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
An Affordable Business-Class 802.11ac MU-MIMO Wi-Fi Solution Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time. Traditional SU-MIMO: (Single-User MIMO) AP sends data to one device at a time that causes more latency
MU-MIMO (Multi-User MIMO) EAP: simultaneously sends data to multiple devices for faster speed Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective. Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible. Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants. Wireless Throughput:
– 2.4GHz: 450Mbps
– 5GHz: 867Mbps Ethernet Port:
Gigabit Port x 1 Internal Antennas:
– 2.4GHz: 3 x 4dBi
– 5GHz: 2 x 5dBi Specifications:
– PoE Mode: 802.3af and Passive PoE
– Mounting: Ceiling mount or wall mount (mounting kit included)
– Physical Security Lock: Yes
– Hardware Watch Dog: Yes
– Button: Reset
– Power Supply: 802.3af PoE or passive PoE
– Power Consumption: 12.6W
– Dimensions: 8.1 × 7.1 × 1.5 in. (205.5 × 181.5 × 37.1 mm) Interface:
Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af or passive PoE) Antenna Type: Internal omni directional
– 2.4GHz: 4dBi x 3
– 5GHz: 5dBi x 2 Wireless Features:
– Wireless Standards: IEEE 802.11ac/n/g/b/a
– Frequency: 2.4GHz and 5GHz Signal Rate:
– 5GHz:Up to 867Mbps
– 2.4GHz:Up to 450Mbps Wireless Functions:
– Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
– Enable/Disable Wireless Radio
– Automatic Channel Assignment
– Transmit Power Control (Adjust Transmit Power on dBm)
– QoS(WMM)
– Band Steering
– Load Balance
– MU-MIMO
– Airtime Fairness
– Beamforming
– Rate Limit
– Reboot Schedule
– Wireless Schedule
– Wireless Statistics based on SSID/AP/Client Wireless Security:
– Captive Portal Authentication
– Access Control
– Wireless Mac Address Filtering
– Wireless Isolation Between Clients
– SSID to VLAN Mapping
– Rogue AP Detection
– 802.1X Support Transmission Power:
– 24dBm(2.4GHz)
– 22dBm(5GHz) Management:
– EAP Controller Software: Yes
– Email Alerts: Yes
– LED ON/OFF Control: Yes
– Management MAC Access Control: Yes
– SNMP: v1,v2c
– System Logging Local/Remote Syslog: Local/Remote Syslog
– Telnet: Yes
– Web-based Management: HTTP/HTTPS
– L3 Management: Yes
– Multi-site Management: Yes
– Management VLAN: Yes Certification:
FCC, RoHS System Requirements:
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux Environment:
– Operating Temperature: 0 degrees Celsius to 60 degrees Celsius
– Storage Temperature: -40 degrees Celsius to 70 degrees Celsius
– Operating Humidity: 10%-90% non-condensing
– Storage Humidity: 5%-90% non-condensing What’s in the box
AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
Passive PoE Adapter
Power Cord
Mounting Kit
Installation Guide
