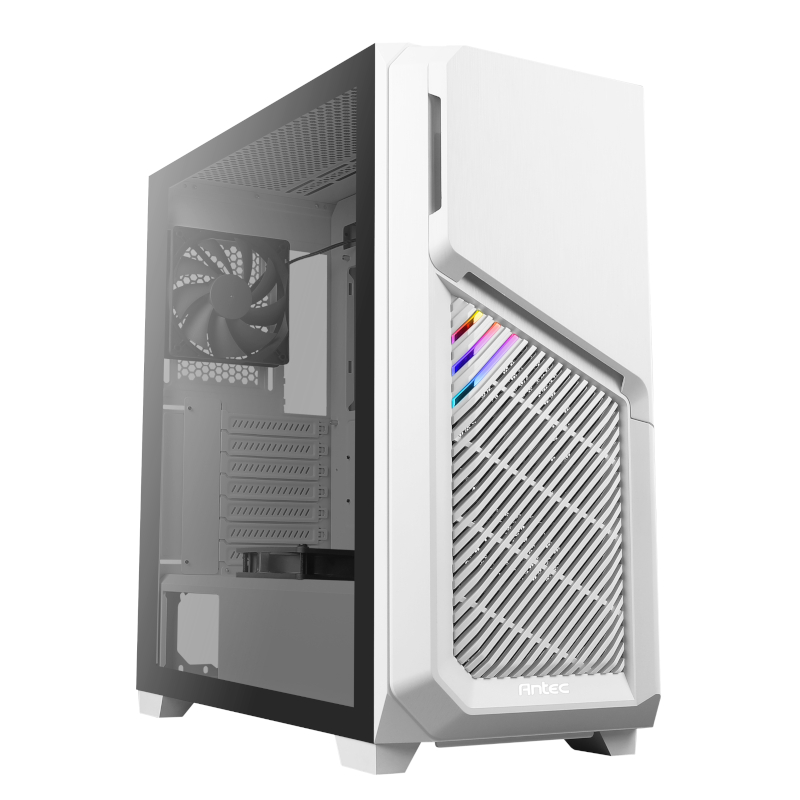

Antec DP502 FLUX White ATX Mid-Tower Gaming Chassis

The Antec DP502 FLUX White mid-tower gaming chassis is well equipped with an industry-leading design of advanced ventilation, taking the Antec Dark league gaming cases to the next generation. To cope with the stress of enhanced heat dissipation, Antec developed a revolutionary structure for airflow, providing an improved and powerful cooling solution for your system. The F-LUX Platform. What is the F-LUX Platform? The definition of FLUX is Flow Luxury. The F-LUX Platform is a new industry-leading and highly efficient ...design by Antec featuring an advanced case structure for excellent airflow combined with 5 x 120 mm fans included. A core element of the design ethos was to enhance GPU cooling performance. The electroplating-processed LED on the top left-hand side of the front panel presents a Sci-Fi vibe. The DP502 also comes with a 4mm thick tempered glass side panel. With a tool-free thumbscrew design at the rear of the tempered glass side panel, which gives you quick access to the interior, and enhances the solidity. Features:
– ATX | Micro-ATX | ITX support
– 3 x Front and 1 x Rear and 1 x PSU Shroud Fans Included
– 4 mm Tempered Glass Side Panel
– Sci-Fi Designed Vented Front Panel
– Built-in LED Controller
– USB3.0 and ARGB Control on I/O panel
– 405mm GPU support
– 175mm CPU cooler Support Specifications:
– Materials: Steel | Plastic
– Dimensions: 46.3 x 22 x 48.6 cm
– Form Factor: Mid-Tower
– Motherboard Support: ATX, Micro-ATX, ITX
– I/O Ports: Power, LED Control Button, 2 x USB3.0, HD-Audio
– Side Panel: 4 mm Tempered Glass Side Panel
– Expansion & Drive Bays
– Expansion Slots x7
– 5.25? x1
– 3.5?/2.5? (convertible) x3/2
– 2.5? x3
Fan Support:
– Front 3 x 120mm / 2 x 140mm
– Top 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket), 2 x 120 mm / 2 x 140 mm (w/o ODD but with ODD bracket) 2 x 120 mm / 1 x 140 mm (When ODD is installed)
– Power Supply Shroud 2 x 120mm
– Rear 1 x 120mm
– Included Fans 3 x 120mm fans in front, 1 x 120mm fan (Reverse Fan) on PSU shroud & 1 x 120mm fan in rear
Radiator Support:
– Front ? 360mm (? 55 mm thickness when fans are installed outside of front panel) (? 30 mm thickness when fans are installed inside of front panel) [Max Radiator Length ? 405 mm] – Top ? 360mm (w/o ODD and w/o ODD bracket) 240/280 mm (w/o ODD but with ODD bracket) 120 mm(When ODD is installed) [Max Radiator Length ? 405 mm] – Rear 120mm
Clearance:
– Max GPU Length ? 405mm
– Max CPU Cooler Height ? 175mm
– Max PSU Length ? 205mm
– Dust Filters: Front/Top/Bottom/Right Hand Side
– Weight: 7550 g What’s in the box
1 x Antec DP502 FLUX White ATX Mid-Tower Gaming Chassis
