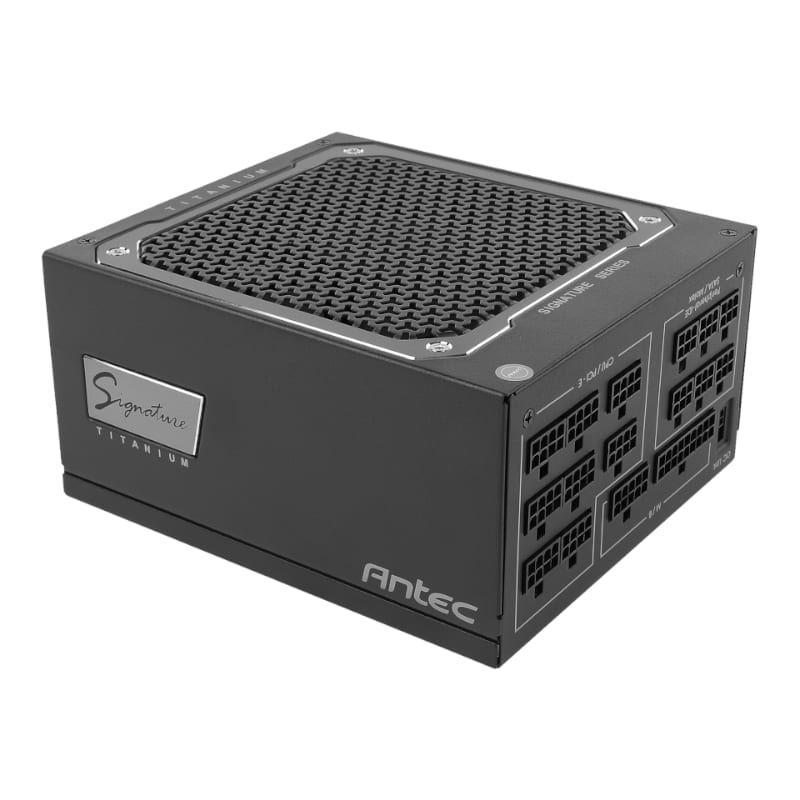

Antec Signature 1000W Titanium Modular PSU

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Antec Signature 1000W Titanium Modular PSU boasts unparalleled stability and 80 PLUS® Titanium-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers ...and professionals. Featuring a whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity. The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it. Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance. It also features a server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology. The OC Link™ Feature allows 2 Signature PSUs to work in tandem to power the most demanding systems. The fully modular cable management enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow. Features:
– Continuous Power
– 80 PLUS Titanium Certified
– 100% Japanese Heavy-Duty Caps
– Fully Modular Cable Management
– PhaseWave™ DC-DC Converter Design OC Link™ Design
– FDB 135mm Silent Fan
– Zero RPM Mode SPECIFICATIONS:
– Type: ATX
– Modular: Fully Modular
– Dimension: 15 x 17 x 8.6 cm
– Input Voltage: 100-240 VAC ±10%
– Input Current: 13A-6.5A
– Input Frequency Range: 47Hz-63Hz
– PFC: Active PFC at half load: >0.95 at AC 110v 60Hz(typical)
– PFC: Active PFC at full load:>0.90 at AC 230v 50Hz(typical)
– Power Good Signal: 100-500ms
– Efficiency: At 10% / 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 94% / 90%.
– Protection: OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO
– Output Capacity: 1000W
– Fan: 135 x 135 x 25(mm) FDB Silent Fan
– Certifications: 80 Plus Titanium
Connector
– 1 x MB 24(20+4) Pin
– 2 x 8(4+4) Pin EPS 12V
– 8 x 8(6+2) Pin PCI-E
– 16 x SATA
– 5 x Molex
– 1 x FDD What’s in the box
1 x Antec Signature 1000W Titanium Modular PSU
