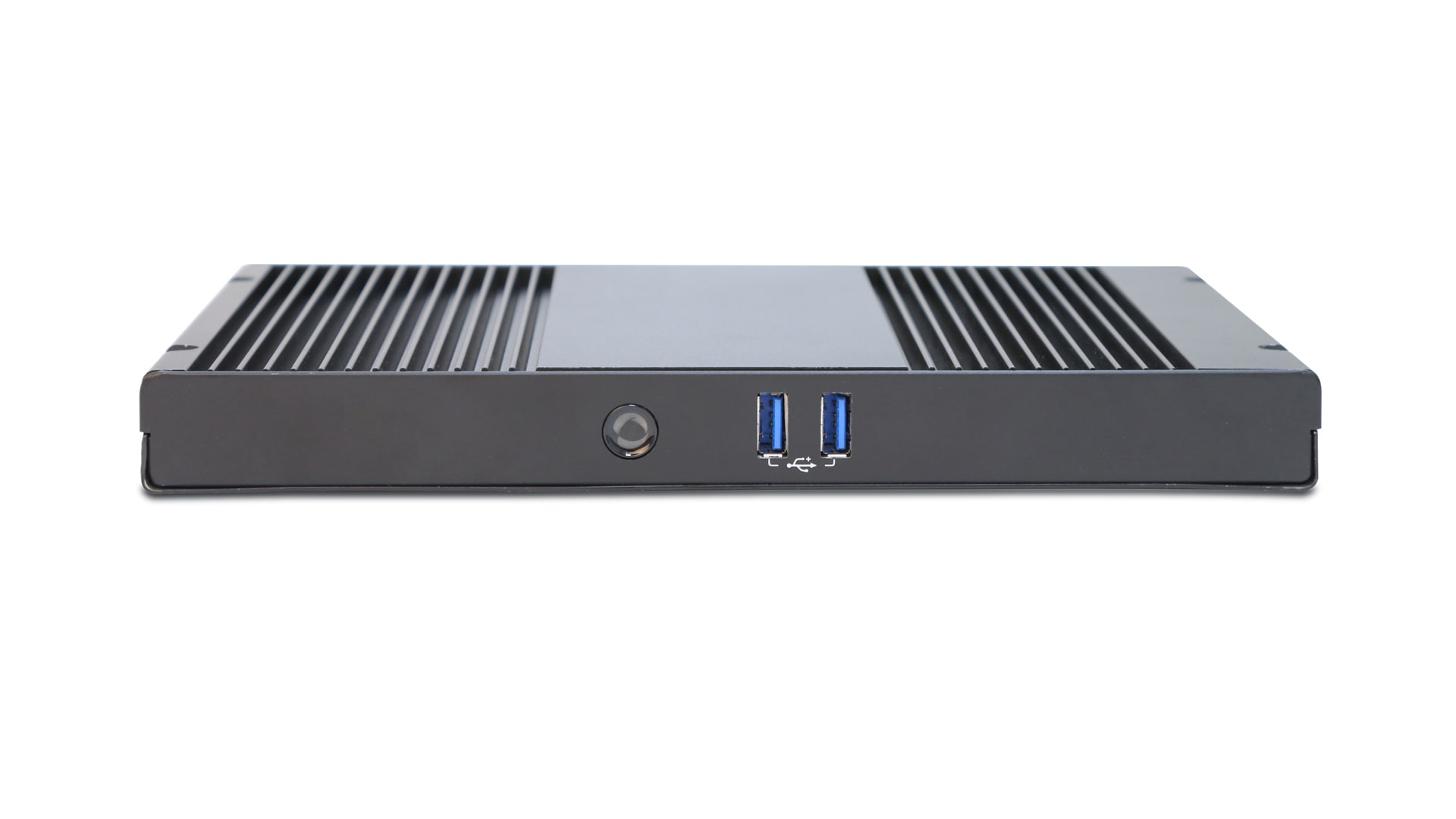

AOPEN Full System I5-7200 + 4X2 MEM, SSD 128GB, WIN10 Media Player

The DEX5550 is a two output UHD (4K) high-definition media player. It has a high performance, but low power consumption because of the mobile processor. It is fanless and solid state, slim (only 25mm) and designed for a long product life cycle and high performance. The DEX5550 is the perfect solution for digital applications and has no issues running in tough, moving, greasy or dusty environments.
The DEX5550 and the DE5500 are both based on the Intel Core-I platform. ...More specifically, on the 7th generation. These computing devices are available in i3, i5 and i7, and therefore in different SKU’s.
This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840×2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k).
This form factor ensures an easy integration into kiosks or behind screens. The AOPEN small form factor is a standard that is used for Digital Engine (DE) models. The size of our Digital Engine series is set to maximum 166x48x177 mm. Its width set to 166 mm. Do the math and you will see that a Digital Engine is an investment that will last, even after replacing the item in a kiosk or mount that already exists.
These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps. Dimension WxHxD 240 x 25 x 158 mm
9.45 x 0.98 x 6.22 inch
Volume 0.95L
Weight 1.4 kg(3.09 lbs)
CPU Intel 7th Gen Kaby Lake U ?15W
Chipset —
AiCU AiCU 1.0
Memory DDR4 SO-DIMM 2133 x2, Max. 32GB
Graphics Intel HD Graphics 610 / 620 /640
Expansion M.2 slot x 1, 2242(key B for SSD)
M.2 slot x 1, 2242(key B for AiCU/SSD/WLAN)
M.2 slot x 1, 2230(key E for wifi),
Audio Realtek HD AUDIO CODEC ALC269Q
LAN Intel GIGA LAN x 2 (i210AT/i219LM)
Storage Bay M.2 x 1
Power Button & indicator Power Button and Power, HDD indicator LED
Front Panel I/O USB 3.0 x 2
Rear Panel I/O DC Jack 12/19V, 5517 x 1
HDMI2.0 x 2 (4096×2160@60Hz)
USB 3.0 x 2
RJ 45 LAN Jack x 2
Line-out x 1
Antenna Holes x 2
COM port x 2 (RS232)
Extended power switch x 1
CPU Thermal Module AOpen FanlessThermal Module
WatchDog Timer 1 ~255 sec/min
Adapter 65W
DC 12/19V input
Input Voltage
MTBF 50,000hrs
Operating Temperature 0ºC ~ 45ºC
Storage Temperature -20 ~ 60ºC
Relative Humidity 95% RH (45ºC non-condensing) What’s in the box
1x AOPEN Full System DEX5550 Media Player
