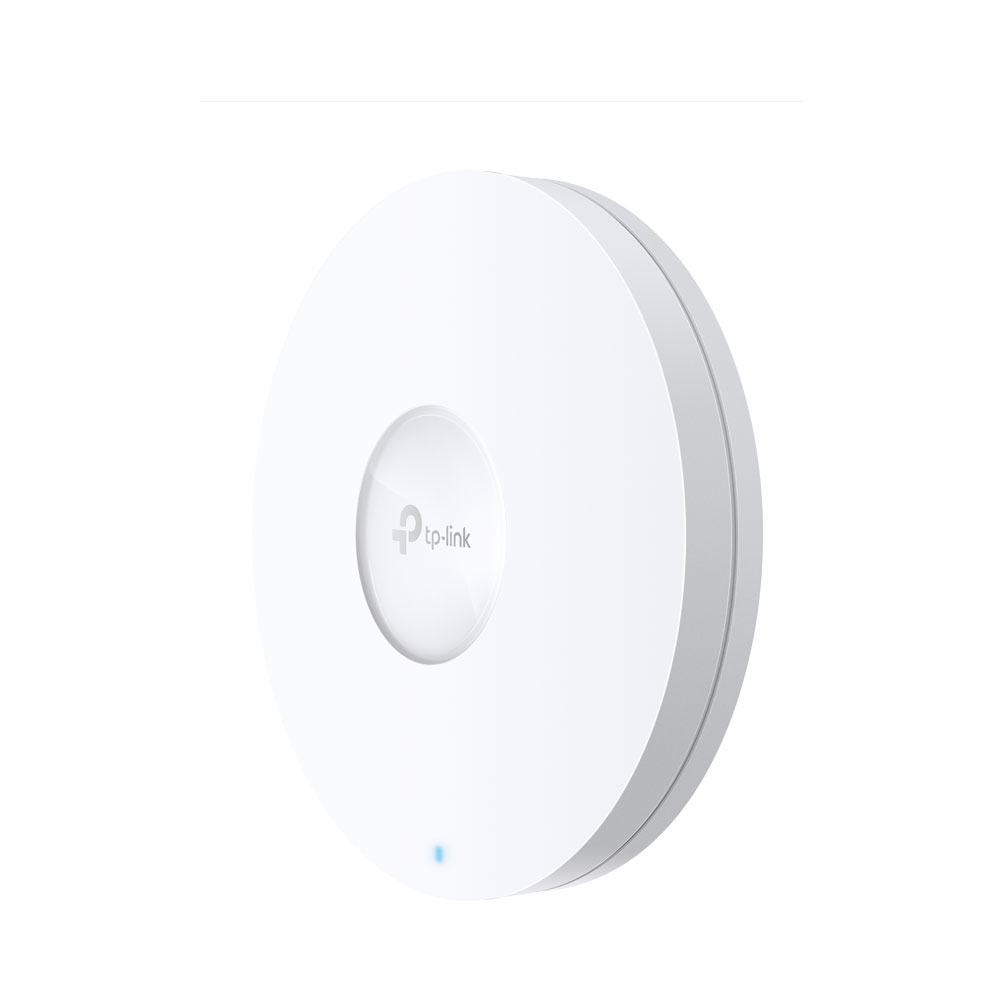

AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

OVERVIEW:
Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.†
High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
Seamless Roaming: Even video streams and voice calls are unaffected as users move ...between locations.?
PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies. Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply
• 802.3at PoE
• 12 V DC
Power Consumption
• EU: 18.5 W
• US: 21.5 W
Antenna Type
Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5 dBi
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate:
• 5 GHz: Up to 2402 Mbps
• 2.4 GHz: Up to 1148 Mbps What’s in the box
1 x EAP660 HD
1 x Power Adapter
1 x Ceiling/Wall Mounting Kits
1 x Installation Guide
