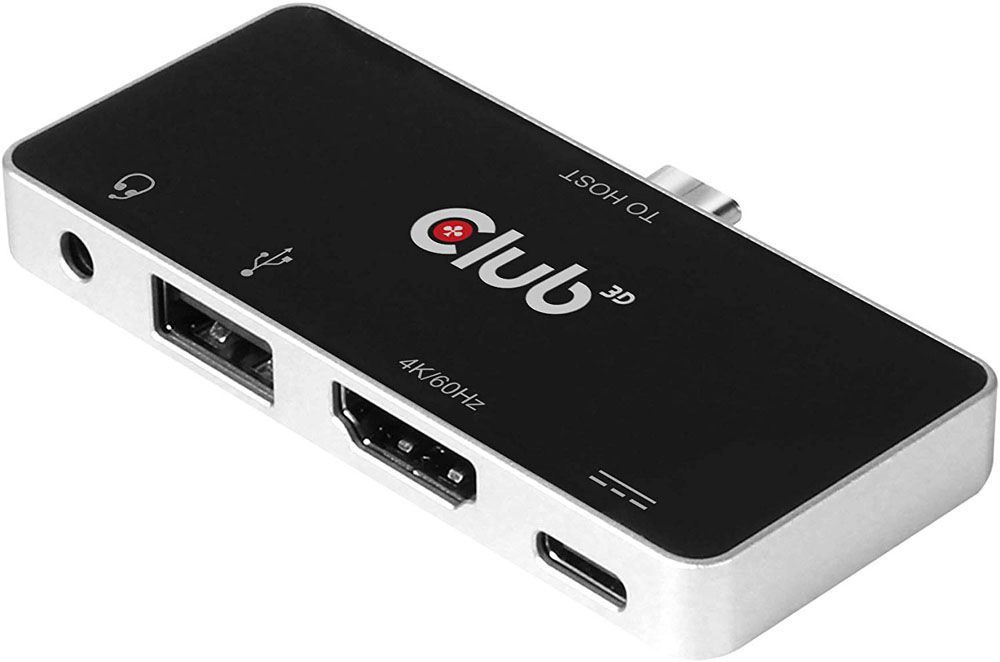

Club 3D Type-C 4-in-1 Hub to HDMI Docking Station

CSV-1591 – The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host. This hub can work on all USB Type-C and Thunderbolt 3 hosts that supports DP Alt mode. When ...working on Thunderbolt 3 host, this product transmits DP signal. Features:
– Upstream:
1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps
– Downstream:
1x HDMI Female
Support HDMI max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth
Support 6/8/10/12 bit color depth output
Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
Support HDCP 2.2 & HDCP1.4
Support HDR
1x USB Type A 2.0, Max 480Mbps bandwidth
– Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
– 1x 3.5mm combo audio*
Support 48K/44.1KHz sampling rate Audio output
* Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected.
– When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last.
– When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port Available Interfaces:
– Upstream:
– 1x USB Type C Male
– (Host connection)
– Downstream:
– 1x HDMI 4K60Hz Female for connecting to Monitor
– 1x USB type A, BC1.2 charging
– 1x USB Type-C Female, PD Charging only
– 1x.3.5mm combo audio What’s in the box
– CSV-1591, 4-in-1 Hub
– Quick Install Guide
