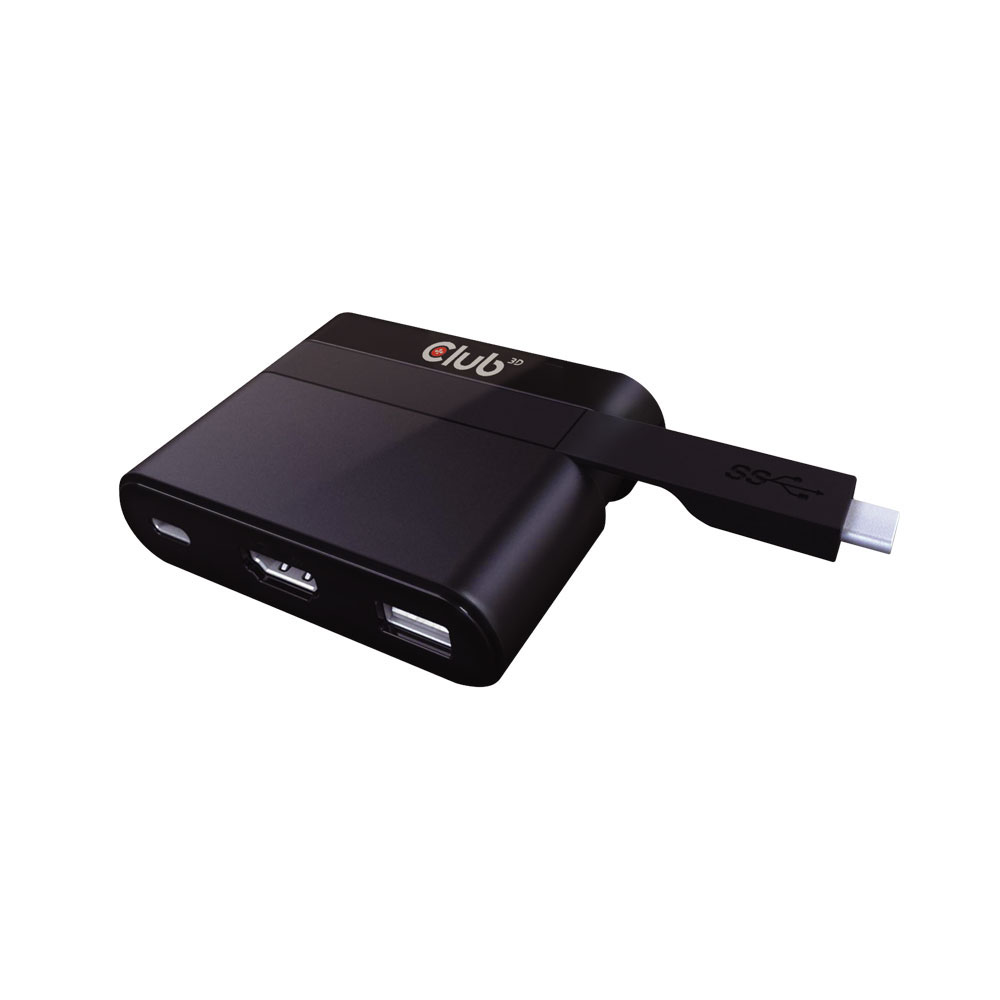

Club 3D USB 2.0 Type-C to HDMI 4K@ 60hz Charge 60w Mini Dock

CSV-1534 The SenseVision USB Type-C to HDMI™ 2.0 + USB 2.0 + USB Type-C Charging Mini Dock is a compact adapter with HDMI™ and USB outputs for your USB Type-C enabled laptop or Ultrabook featuring DisplayPort™ Alternate Mode. Add a 4K UHD Monitor or TV with up to 4096x2160p resolution through the HDMI™ 2.0 output while the USB 2.0 Type-A port allows you to use USB Sticks, Peripherals and HDD’s. It also offers a Type-C PD input which can charge your device with up ...to 60 Watts at the same time. Works with Microsoft Windows® and Apple OS X, requires DisplayPort™ Alt Mode. Interface
USB 3.0 Type C male x 1
Output Configuration
HDMI™ 2.0 female x1
USB 2.0 Type-A female x1 (for data)
USB Type-C female x1 (for charging) Features:
• Innovative Portable Design
• Folding USB Type C Connector
• Repeater for HDCP 1.3 and HDCP 2.2
• Supports UHD resolutions up to 4096 x 2160p @ 60Hz
• Supports RGB up to 12 bpc, YCbCr4:4:4 -4:2:2 -4:2:0 up to 12 bpc
• 1x USB 2.0 Type-A port for Data
• 1x USB Type C PD 5V/1.5A, 20V/3A for Charging
• Supports Thunderbolt under Microsoft Windows 10
• Requires Type-C DisplayPort™ Alt Mode
The minimum requirements for the PC are:
CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock.
GPU: AMD, Intel or Nvidia
RAM: 1GB or higher
USB port: 2.0/3.0 Type-C with DisplayPort™ Alt Mode
30MB of available disk space
Supported Operating Systems:
Windows 8.1 (32 & 64 Bit)
Windows 10 (32 & 64 Bit)
Apple OS X What’s in the box
SenseVision USB 3.1 Type C to HDMI™ 2.0 + USB 2.0 + USB Type C Charging Mini Dock
Quick install guide
