Cudy 10 Port 120W Gigabit POE Switch

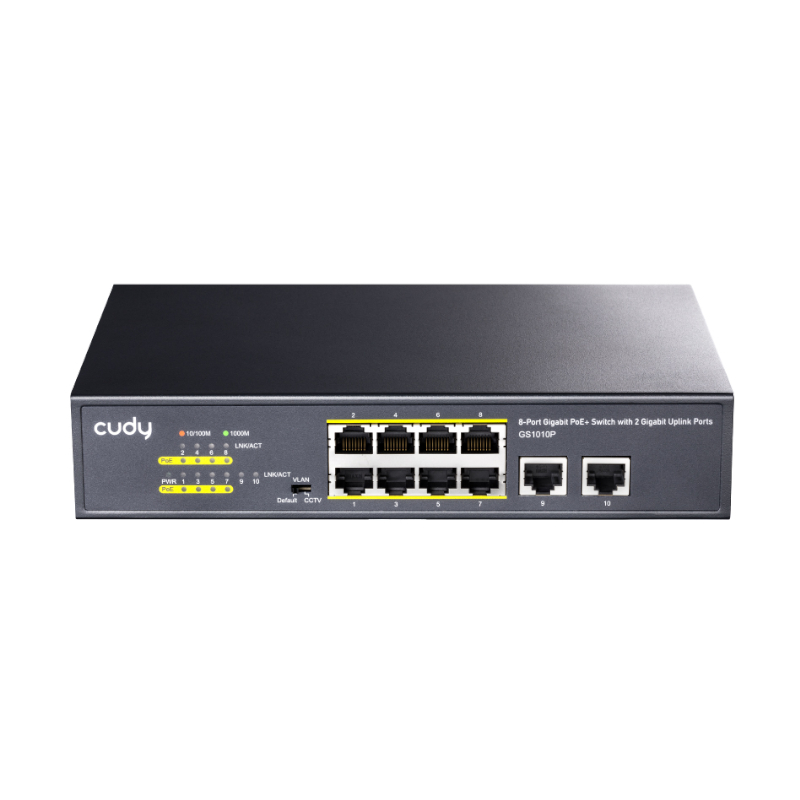

The Cudy GS1010P 10-Port Gigabit PoE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. It supports bandwidth speeds of up to 18Gbps and features 8 PoE ports and 2 uplink ports. The 10 port switch supports 120W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. It ...also complies with IEEE802.3af/at Standard speeds for great performance. Used for many applications the Cudy GS1010P works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation. Features :
– 120 watts PoE power supply, up to 30 watts per port
– 2 10/100/1000M uplink ports
– 8 10/100/1000M PoE+ ports
– CCTV mode support remote PoE feeding up to 250m
– VLAN mode isolates each PoE Port for security
– Watchdog reactivates the abnormalPD by resuming POE power
– IEEE 802.3at / IEEE 802.3af standard compliant
– Plug&play, simple setup with no configuration needed Specifications :
– PoE standard: IEEE802.3af/at
– Interface: 10 x 10/100/1000Mbps The RJ45 port through consultations
– Key function: CCTV&VLAN
– PoE port: 1~8 port
– PoE Total: 120W
– Power supply: 120W
– RJ45 PoE power supply: Mode A Anode1/2 Cathode3/6
– PoE output-port: Max 32W
– Indicator: PWR, LNK/ACT, PoE Network media:
10BASE-T: UTP category 3, 4, 5 cable(?100m)
100BASE-TX: UTP category 5, 5e cable(?100m)
1000BASE-T: UTP category 5e,6 cable(?100m)
MAC Address Table: 8K, Automatic study, automatic updates
Jumbo frame: 9216Bytes
Packet buffer: 2M bit
Transfer Mode: Store-and-forward
Packet forwarding rate: 13.4Mpps
Bandwidth: 18 Gbps
Fan: Fanless
Surge Protection: ±4KV
MTBF: >50000 hour
Electrostatic standard: Contact 6KV, air 8KV
Product Dimensions: 22 x 15 x 4.4 cm
Product Weight: 1000g What’s in the box
1 x Cudy GS1010P 10-Port Gigabit PoE+ Switch – Grey
1 x Power Adapter
