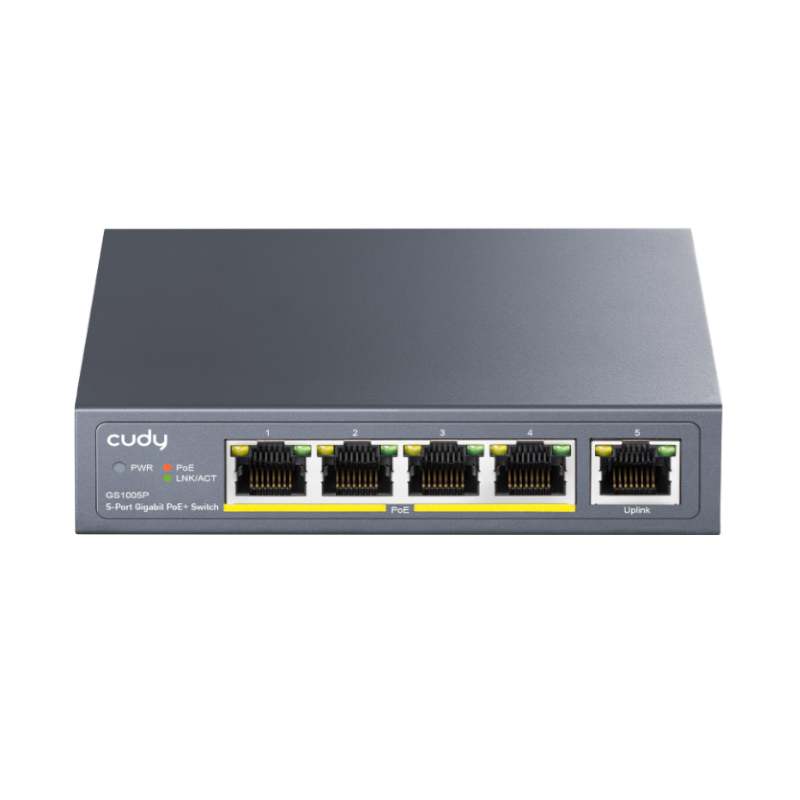

Cudy 5 Port 120W Gigabit POE Switch

The Cudy GS1005P 5-Port Gigabit POE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. For its total, non-blocking throughput, each cudy switch supports up to 5 Gbps with a switching capacity of 10 Gbps. The 5 port switch supports 60W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal ...PoE switches. It also complies with IEEE802.3af/at Standard speeds for great performance. Used for many applications the Cudy GS1005P works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation. Features :
– Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab,IEEE802.3af, IEEE802.3at
– Provides 5 10/100/1000Base-TX ports
– 60W PoE power output total
– High back-plane bandwidth 10Gbps
– IEEE802.3x Flow control
– EMI standards complies with FCC, CE class B Specifications :
– Power:
Power supply: External Power Adaptor
Voltage Range: DC48~57V
Switch Consumption: <5W
– Ethernet:
– Speed:
1~5 Port: 10/100/1000Mbps
Uplink: 10/100/1000Mbps
Transmission Distance: 100Meter (328ft)
– Network Switch
Ethernet Standard: IEEE 802.3/802.3u/802.3ab/802.3af/at
Switching capacity: 10G
Transfer Rate:
14,880pps for 10Mbps
148,800pps for 100Mbps
1,488,000pps for 1000Mbps
MAC Address: 2K MAC address table
– LINK/ACT:
On – Green: The port is connecting
Blinks: The port is receiving or transmitting data
Off: The port is not linked successfully with the device
– POE
On – Orange: PD is connected
OFF: No PD is connected or power forwarding fails
Capacity: 60W
PoE pin assignment: V+(RJ45 Pin 1,2), V-(RJ45 Pin 3,6)
– Colour: Grey
– Product Dimensions: 11.9 x 8.5 x 2.8 cm What’s in the box
1 x Cudy GS1005P 5-Port Gigabit POE+ Switch – Grey
1 x Power Adapter
2 x Mounting bracket
6 x Mounting Screws
