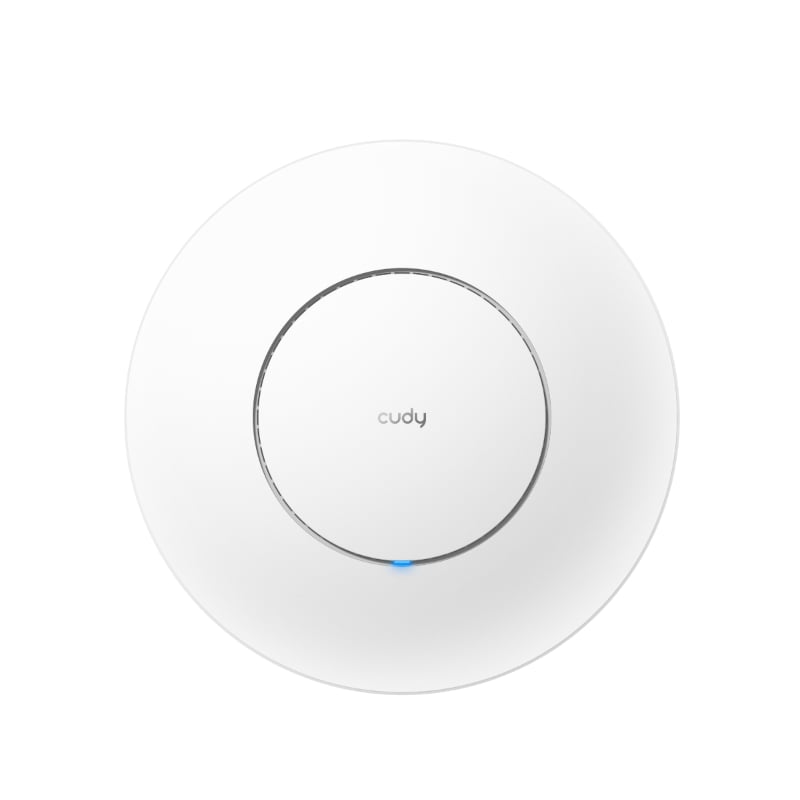

Cudy AC1300 Ceiling Mount Access Point

The Cudy AP1300 AC1300 Dual-Band Access Point is a great way to extend your existing LAN network into a wireless one. It features a high-speed dual-band network that allows you to access 2.4GHz or 5GHz frequency bands. It can reach transfer speeds of up to 867Mbps on a 5GHz frequency. It also supports 1 x 10/100/1000Mbps for LAN and WAN, as well as support for PoE(802.af) for more convenience. Its simple mounting design makes it easy to attach to a ...wall or ceiling. Features : Up to 867Mbps Wireless Speed
Dual-Band Frequency
1×10/100/1000Mbps WAN + 1x 10/100/1000Mbps LAN
Support PoE(802.af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling Specifications : Chipset: Qualcomm QCA9563+QCA8337+QCA9886
DDR: 128MB; Flash: 16MB
PA: 2.4G SKY85330-11, 5.8G SKY85735-11
Protection: Built in Watchdog Chipset
Antenna: Built in 5 x 3dBi Antennas
Wireless Frequency:
2.4GHz: 450Mbps
5GHz: 867Mbps
RF Parameters:
Output Power (Max): 200mW (23dBm)
Receiving Sensitivity (Max): -96dBm
Frequency:
5.8GHz: 5.18-5.825GHz
2.4GHz : 2.412GHz ~ 2.472GHz
Physical Ports:
1* 10/100/1000Mbps WAN RJ45 Ethernet Port; Support POE Power Supply;
1* 10/100/1000Mbps LAN RJ45 Ethernet Port; Support POE Power Supply;
1* RESET / WPS Button
Indicator:
Three Color Indicator
Power Supply: 802.3af/802.3at POE Power Supply(0-100m)
Power:
Power Adapter: 48V 0.32A POE Power Adapter(Configured)
Power Consumption (Max): <13W
IP Index: IP31
MTBF: >250000H
Installation Way: Ceiling-mounted, Wall-mounted
Case Material: Plastic Case(Imported ABS Material)
Product Dimensions: 22 x 22 x 3.5 cm What’s in the box
1 x Cudy AP1300 AC1300 Dual-Band Access Point – White
