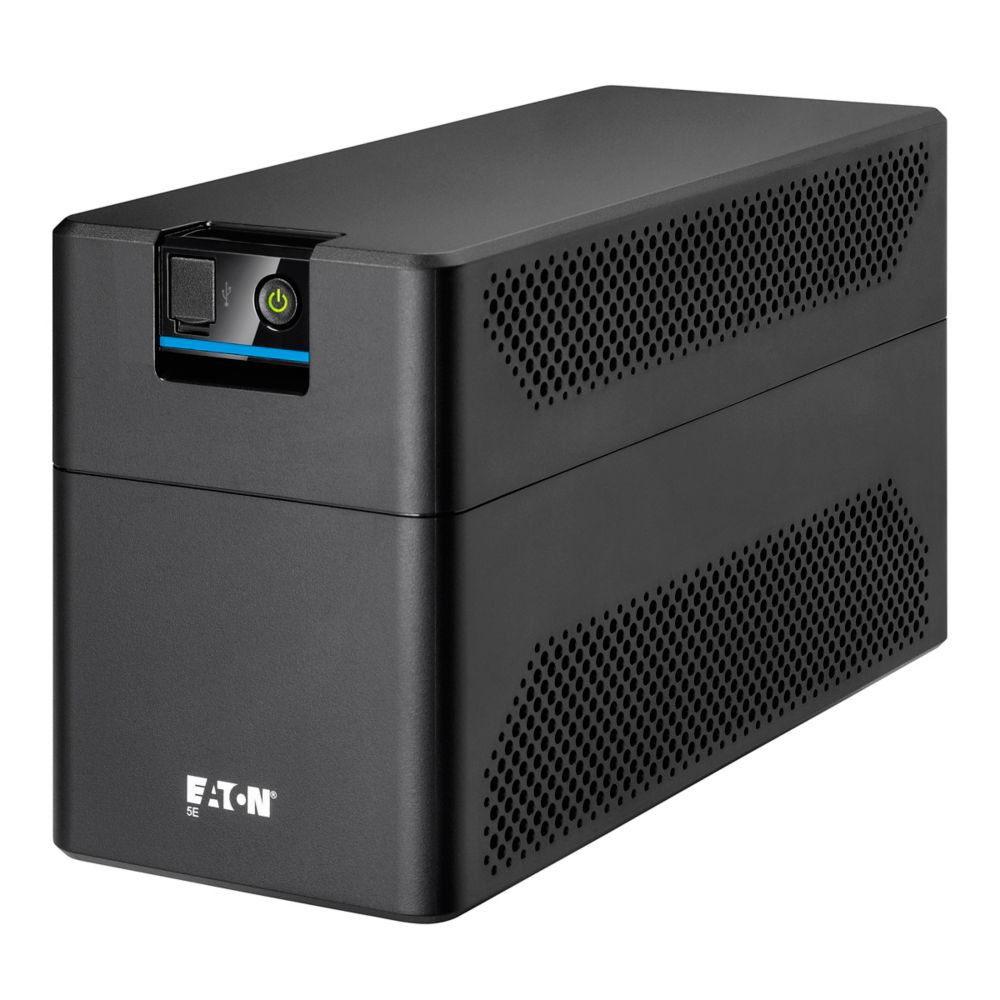

Eaton 5E Gen2 1600VA UPS

The Eaton 5E uninterruptible power system (UPS) protects your sensitive electronic equipment from the most common power problems, including power outages, voltage sags, impulsive transients, line noise, and long-term under and over voltage conditions. Power outages can occur when you least expect it and power quality can be erratic. These power problems have the potential to corrupt critical data, destroy unsaved work sessions, and damage hardware – causing hours of lost productivity and expensive repairs. With the Eaton 5E, you can ...safely eliminate the effects of power disturbances and guard the integrity of your equipment. Product Features:
Line Interactive Technology at an Affordable Price:
UPS is securing your data and your equipment by protecting you against power outages and bad power quality. Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR). Eaton Reliability:
Trust a leading manufacturer with decades of experience and high quality standards: CE compliance certified by external agency (TUV). Rely on batteries anytime: 5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start). Avoid back door damages coming through phone lines: 5E. Easy Integration:
Plug easily any equipment to the UPS (PC, HD TV, internet gateway,) thanks to IEC and Schuko outlets (on DIN models). Install 5E anywhere thanks to its small size. Easily manage your UPS from your PC (on USB models). Automatic integration into Windows/MacOS/Linux power management for safe system shutdown. Analyze energy use and costs, manage UPS parameters, with Eaton UPS Companion software. Ideal for protecting: PC, Workstation, NAS, Internet Access Point,TV, Point of Sales, Business Telephony. Providing Outstanding Performance and Reliability. Product Specifications:
Secondary Frequency – Max: 60 Hz
Wattage: 900 W
Form Factor: Tower
Includes Network Card: No
Input Connection: C14
Input Voltage – Min: 140 V
Output Voltage – Max: 257 V
Secondary Frequency – Min: 50 Hz
Software Compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Battery Type: Sealed, Lead-Acid
Efficiency: 95
Special Features: Automatic Voltage Regulation (AVR)
Saves Space with a Compact Tower Design
HID-compliant USB port, for automatic integration with major operating systems (Windows/Mac OS/Linux).
Construction Type: Free Standing Model
Output Voltage – Min: 195 V
Color: Black
Extended Battery Capability: No
Output Voltage Range: 195-257 V
Topology: Line-interactive
Surge Protection: Yes
Input Nominal Voltage: 230V Default (220/230/240V)
Input Frequency Range: 45-63 Hz
Internal Bypass: No
Input Voltage – Max: 300 V
Voltage Type: AC
Phase (Output): 1
Battery Management: Automatic Battery Test, Deep-Discharge Protection, Cold-Start Capable
Auto Shutdown Function: Yes
Number of Outputs C13: 6
Operating Temperature – Min: 0 C
VA rating: 1600 VA
Potential free Switch Contact: No
Receptacle: (6) C13
Phase (input): 1
Package Contents: (2) IEC-IEC Output Cables, Quick Start, Safety Instructions
Feed Type: 1
Runtime Graph: View Runtime Graph
User Interface: LEDs
Battery Quantity: 2
Operating Temperature – Max; 40 C
Voltage: 230V
Hot Swap Power: No
Temperature Range: 0 to 40 C (32 to 104 F)
Ethernet Interface: No
Communication: USB port (HID compliant)
Relative Humidity: 0-90% Non-Condensing
Output Apparent Power: 1600 VA
Rack Mounting Kit: No
Output Frequency: 50/60 Hz
Type of Interface: USB
Primary Frequency – Min: 45 Hz
Battery Rating: 12 V / 7 Ah
Type: UPS
Output Nominal Voltage: 230V
Expansion Slots: No
Input Voltage Range: 140-300 V
Nominal Frequency – 50/60 Hz
Primary Frequency – Max: 63 Hz What’s in the box
1 x Eaton 5E Gen2 1600VA UPS
2 x IEC-IEC output cables
Quick start guide
Safety instructions
