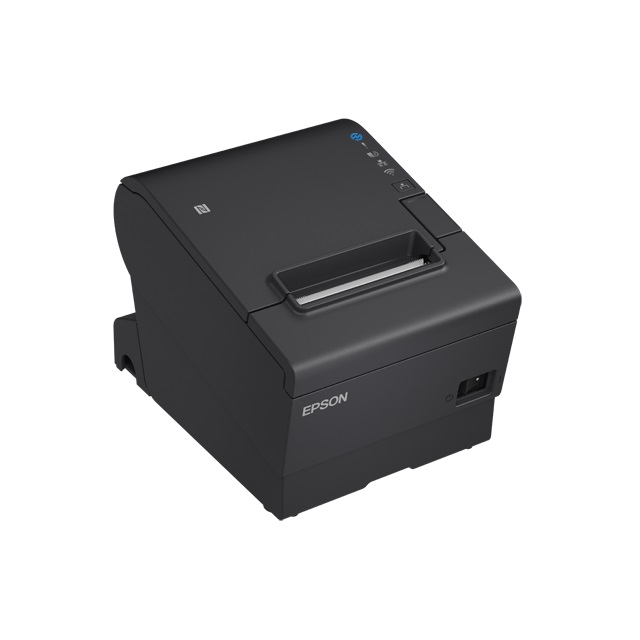

Epson TM-T88VII-112 POS Thermal Receipt Printer – Black

The fastest POS receipt printer with advanced connectivity and online ordering capability.
Ultra fast transaction times – industry-leading print speeds up to 500 mm/sec and high-speed auto cutter
Reliability you can count on – 4-year limited warranty; easy-to-clean, water-resistant enclosure; long printhead and auto cutter life
Connect to multiple devices simultaneously – using multiple interfaces, printer can be dynamically shared by PC-POS terminals, tablets and mobile devices as well as cloud servers
Multi-interface support – built-in USB and Ethernet, optional ...serial, powered USB, parallel and wireless connectivity ensure maximum flexibility and futureproofing
Secure wireless connection – supports the latest Wi-Fi security standard (WPA3)
Online ordering ready – Server Direct Print technology allows the printer to retrieve orders from a web server and print a receipt without requiring POS software integration
POS peripheral support – supports POS peripherals including barcode scanners, customer displays, and more
Easy setup and configuration – streamline the setup and replacement processes using Epson TM Utility; vertical mounting kit provides flexible configuration options
Easy to understand – status LEDs and network diagnostic sheet improve on-site network troubleshooting
Advanced paper-saving functions – top-margin and character-height reduction features help reduce paper usage by up to 49 percent Specifications Print
Print Method
Thermal line printing Print Speed
500 mm/sec (19.7″/sec) max. for graphics and text Print Resolution
180 dpi Print Fonts
Fonts
Font A (default): 12 x 24 (including 2-dot horizontal spacing); 10 x 24 (including 1-dot horizontal spacing)
Font B: 9 x 17 (including 2-dot horizontal spacing)
Kanji Font A: 24 x 24 (including 0-dot horizontal spacing); 20 x 24 (including 2-dot horizontal spacing) Kanji Font B: 16 x 16 (including 0-dot horizontal spacing) Column Capacity
Font A/B (ANK): 80mm mode 42/48/56 columns 58mm mode: 30/36/40 columns
Kanji Font A/B: 80mm mode: 21/24/32 columns 58mm mode: 15/18/22 columns Character Set
95 Alphanumeric, 18 International, 128 x 43 Graphic, Japanese (6,879 characters of JIS X0208-1990, 845 special characters), Simplified Chinese (28,553 characters of GB18030-2000), Traditional Chinese (13,502 characters of Big5), Korean (8,224 characters of KSC5601) Barcode
UPC-A, UPC-E, JAN8/EAN8, JAN13/EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar, Code 128 Auto Two-dimensional Symbol Printing
PDF417, QR Code, MaxiCode, DataMatrix, Aztec Code, Two-dimensional GS1 DataBar, Composite Symbology Media Handling
Media Dimensions
80 mm: 79.5 0.5 x 83 mm
3.13″ 0.02″ (width) x 3.27″ (roll diameter)
58 mm: 57.5 0.5 x 83 mm
2.26″ 0.02″ (width) x 3.27″ (roll diameter) Thickness
48 – 80 m Type
Thermal roll paper Paper Feed Method
Friction feed Paper Back Feed
Yes Paper Loading
Drop-in Roll Diameter (Max.)
3.27″/83 mm Core Diameter (Min.)
0.71″/18 mm Paper Guide
Yes Auto Cutter
Yes Near-end Sensor
Yes Connectivity
Interface (Fixed Interface Model)
Built-in USB, Built-in Ethernet (10/100Base-T/TX) + Wireless Option (USB wireless dongle) OT-WL06 (802.11 a/b/g/n/ac, 2.4 GHz/5 GHz) Interface (Connect-It (UIB) Model)
Built-in USB, Built-in Ethernet (10/100Base T/TX) + UIB (Serial, Parallel, Powered USB, Wireless) Printer Discovery NFC (Near Field Communication), Simple AP (wireless network) Communication Protocols ESC/POS , ePOS Print Service (Ethernet/Wireless), Server Direct Print (Ethernet/Wireless) Network Security Security: WPA-PSK, WPA2-PSK/EAP, WPA2-EAP: EAP-TLS, WPA3-SAE, WPA3-Enterprise, PEAP/MSCHAPv2, PEAP/TLS Port Open/Close Setting
IP Address Filtering Printing from a Mobile Device
Wireless (802.11): iOS , Android and Windows Operating Systems mPOS-friendly Settings (default): DHCP Enabled, DNS Enabled, IP Printing Enabled Easy Setting Function
NFC, QR Code Easy Setting Tool
TM Utility (iOS, Android), TM-T88VII Utility (Windows) Reliability
Printer Reliability
20 million printing lines MTBF 360,000 hours MCBF 70,000,000 lines Thermal Head Life
200 km Auto Cutter Reliability
3.0 million cuts (Rated printhead and cutter lives are only estimates based on normal use of the printer with the following media only, with printer operated at room temperature and normal humidity. Epson’s statements about reliability levels are not warranties of the media or Epson’s printers, and the only warranties for printers are the limited warranty statements for each printer.) General
Data Buffer
Receive: 45 bytes or 4KB, selectable
User-defined: 12KB
Macro: 2KB
NV Graphics: 384KB
NV User: 1KB Audible Alert Optional External Buzzer (OT-BZ20)
LED Indicators
Orange LEDs – Error, Paper Out; Blue LEDs – Power, LAN, Wireless Sensors
Paper End, Cover Open, Near-end Sensor D.K.D. Function
Yes Power Consumption Operating 27.9 W (UIB Model), 28.6 W (Fixed Interface Model), Standby 1.4 W (Both Models), Power Source 24 VDC +/- 7% Power Supply Adapter PS-190 (Included on Select SKUs) Adapter PS-180 (Compatible, not Included) Power Saving
Yes Temperature 5 C to 45 C (41 F to 113 F) Relative Humidity 10 – 90% Acoustic Noise Level 52 db Standards and Approvals EMI FCC Class A, ICES-003 Class A Safety Standard UL62368-1/CSA C22.2 No.62368-1 Dimensions (W x D x H) 5.71″ x 7.68″ x 5.83″ (145 x 195 x 148 mm) Weight 3.74 lb/1.7 kg Color
EBCK (Epson Black) Cash Drawer Kick
Yes Software and Utilities
ePOS-Print (XML over HTTP): WPA/WPA2/WPA3-Personal/
Enterprise
ePOS-Display
Server Collaboration: Server Direct Print, Status Notification Backup/Restore: TM Utility (Windows) OS/Language Support
Microsoft Windows (APD, OPOS, OPOS for .NET, JavaPOS)
Microsoft Windows 8.1/iOS/Android (ePOS-Print SDK)
Mac OS X
Linux (CUPS, JavaPOS) What’s in the box
Epson OmniLink TM-T88VII Printer
Thermal Roll Paper (starter roll for testing)
Power Switch Cover
Connector Cover
Paper roll spacer
PS-190 & AC Cable
Setup Guide
CD (drivers, utilities and documentation)
