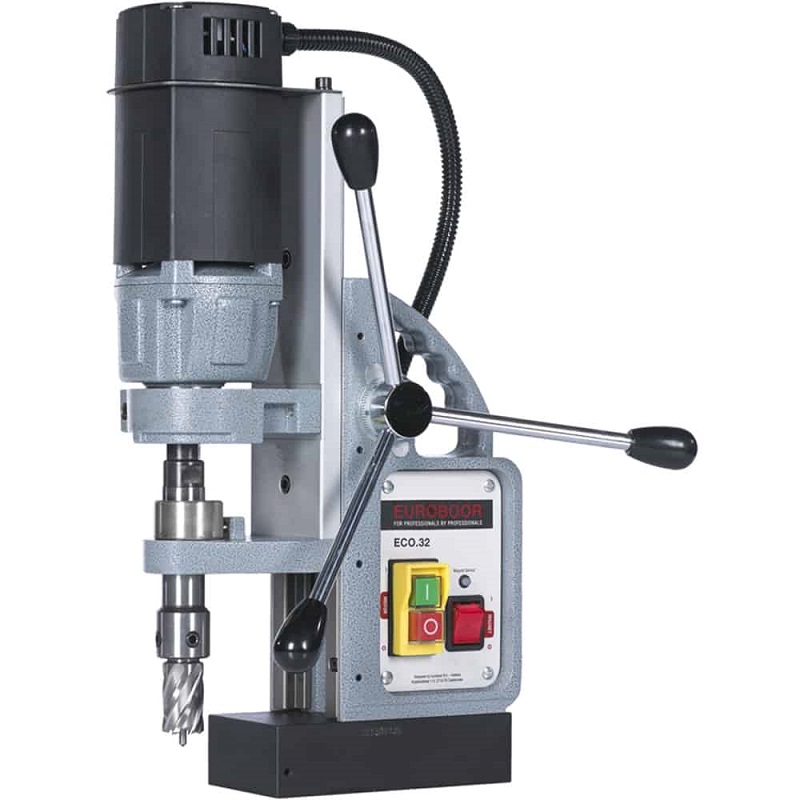

Euroboor Magnetic Base Drilling Machine 32mm 12kg

The compact Euroboor ECO 32 magnetic core drilling machine has a powerful single speed 1000 W (9.1 A) motor. This portable magnetic core drilling machine is suitable for the use with Weldon twist drills up to ø 13 mm (1/2?) and countersinks up to 40 mm (1 9/16?). This light and reliable machine is a true addition for every workplace.

Features:
One-speed gearbox
Detachable spindle drive
Integrated tool cooling and lubrication
High precision height adjustment
Low maintenance
Minimal wear correction
Strong dual coil CNC machined magnet

Technical Data
Annular cutting Ø 12 – 32 mm
Twist drilling Ø 1 – 13 mm
Countersinking Ø 10 – 40 mm
Length 320 mm
Width 210 mm
Height 370 – 512 mm
Stroke 150 mm
Weight 12 kg
Magnet (l x w x h) 160 x 80 x 42 mm
Magnetic force 1500 kg
Motor power 1000 W
Total power 1050 W
Speed (no load) 775 rpm
Speed (load 1000 W) 440 rpm
Spindle (Weldon) 19,05 mm
Voltage 220 – 240 V / 50 – 60 Hz

What’s in the box
1 x ECO 32 Magnetic drilling machine
1 x safety guard
3 x handles
1 x hex key 2.5 mm
1 x hex key 4 mm
1 x hex key 5 mm
1 x lubrication system
1 x safety chain
1 x bottle (200 ml) of IBO.10 cutting oil
1 x user manual
1 x safety ear protection
1 x safety goggles
1 x safety gloves
