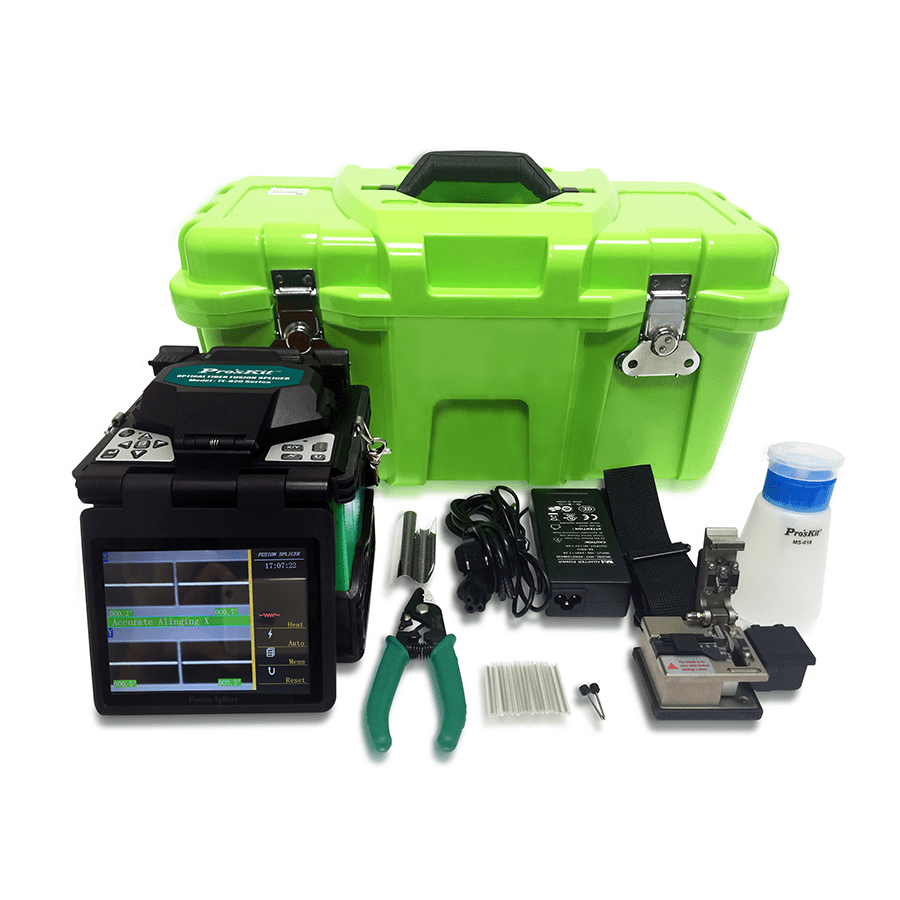

Fiber Optic Fusion Splicing Machine Kit

Features:
– the splicing machine is a new fully-digital design with 5” Lcd colorful display, provide the latest core to core alignment technology, features 10sec.
– accurate splicing and 30 sec.
– quick tube-heating shrink. Specifications:
– applicable fibers: Sm, mm, nzds, edf
– average splice loss: 0.02db(sm), 0.01db(mm), 0.04db(nzds), 0.04db(edf)
– splice time (sec.) : (for sm fiber)
– return los: ?60db
– diameter of fiber optic: Cladding diameter:80-150?m , coating diameter:100-1000?m
– tension test: 2.0...n(200gf)(standard)
– splicing program: 50 groups
– heat shrinkable tube: 20mm, 40mm, 60mm
– memory capacity: 6000 memories
– battery low indication: 4pcs led light indication
– environmental conditions: -10- +50ºc (operation temperature),0- 95% rh(humidity), 0- 5000m(altitude)
– standard package: Fusion splicing machine, fiber cleaver, fiber stripper, leak proof dispenser,
– ac adaptor, battery(in the machine), spare electrodes, 60mm shrinkable tube 25 pieces,
– cooling tray, quick reference guide, carrying case with carrying strap
– power supply ac adaptor: Input:100-240v, 50/60hz, 2a, output: – dc15 5a
– standard plug f type
– battery 11.1v 5.2ah
– dimensions 130(w) x 135(d) x 130(h) mm
– weight
– 2480g (battery included) What’s in the box
1 x Fusion Splicing Machine
1 x Fiber Cleaver
1 x Fiber Stripper
1 x Leak Proof Dispenser
1 x Ac Adapter
1 x Battery In The Machine
1 x Spare Electrodes
25 x 60mm Shrinkable Tube
1 x Cooling Tray
1 x Quick Reference Guide
1 x Carrying Case With Carrying Strap
