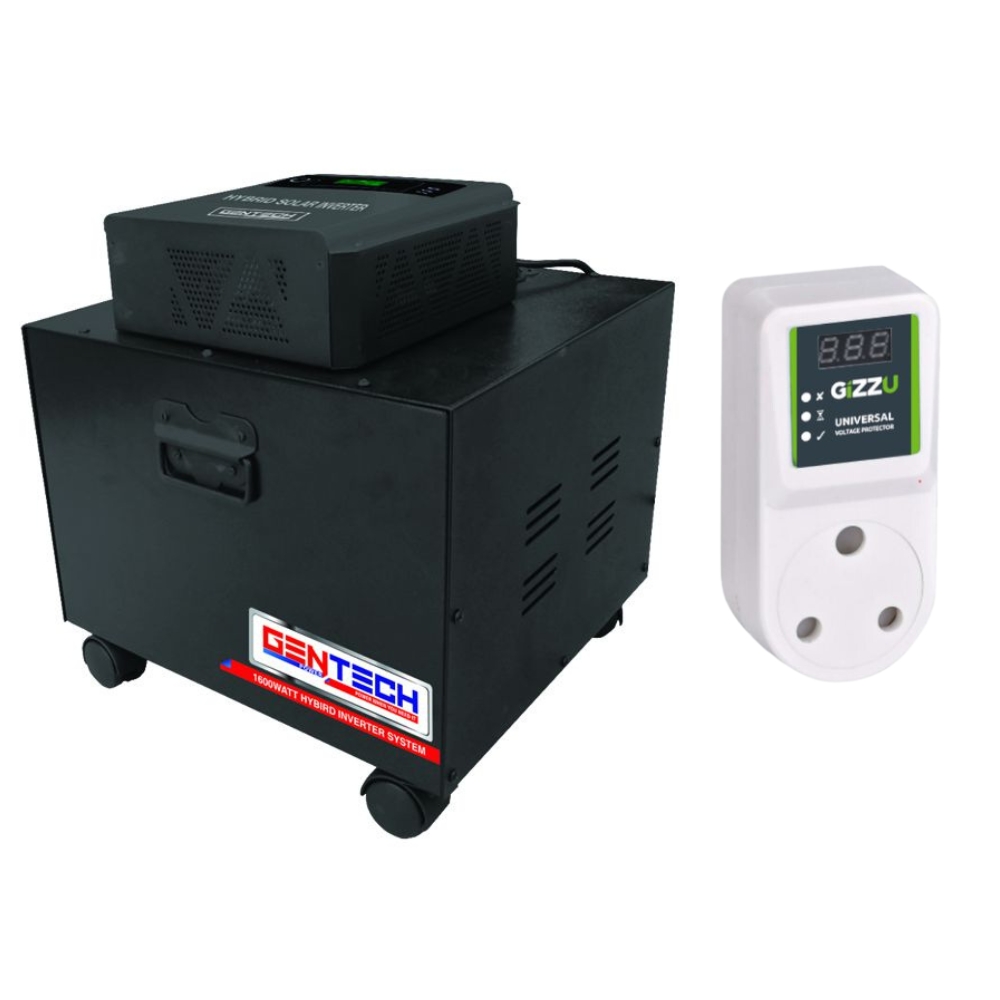

Gentech – 1600W Solar Hybrid Inverter Trolley with Voltage Protector Plug

The Gentech Power 1600 Watt Hybrid Solar & AC Inverter System has a built in solar controller.
A solar panel can be connected to the unit to charge the battery.
The solar panel is NOT included.
The recommended panel size is: 2 x 375-390 Watt Panel Perfect For:
Tv
Laptop
Monitor
WiFi Router
Decoder
LED Lamps
Cellphone charger Model: 2000VA(1600W) 24V Input
Nominal Voltage: 220-240VAC
Input Voltage Range: 90...-280VAC
Nominal Frequency: 50Hz or 60Hz (Auto Detection) Solar
Nominal Voltage: 36Vdc
Charging Current: 50A 1Amax. Output
Voltage: 230VAC 10%
Frequency: 50/60Hz 0.1Hz Waveform
Modified: Sine-wave
Efficiency (AC to AC): 95%
Effigie (DC to AC): 80% Battery
Nominal Voltage: 24Vdc Charger
Charging Voltage:28.8Vdc
Charging Current:1OA/20A 2A max. Overcharging Protection: 32.0V Transfer
Transfer lime:15-20ms typical (narrow range); 40ms max (wide range) Audible Alarm
Low Battery Voltage in Battery Mode: Buzzing every 2 seconds
Overload: Buzzing every 0.5 seconds
Fault: Buzzing continuously Environment
Temperature: o-4oc Key Features:
– Easy to use plug and play – no wiring.
– 3 SA plug points positioned above the unit for easy plug access Hybrid Solar & AC Technology.
– Low Heat Dissipation.
– Features dual charging from both solar and AC mains.
– Provides uninterrupted power during load-shedding.
– Portable, has wheels to move from one to room to another easily.
– Batteries housed in a metal cabinet on castors. Dimensions & Weight
Length: 435mm
Width: 420mm
Height: 500mm
Weight: 77.8Kg Makes use of AGM Batteries
What are AGM Batteries?
Absorbent Glass Mat (AGM) Technology
AGM or Absorbent Glass Mat is an advanced lead-acid battery that provides superior power to support the higher electrical demands of today s applications.
AGM batteries are extremely resistant to vibration, are totally sealed, nonspillable and maintenance-free.
AGM offers better cycling performance, minimal gassing and acid leakage when compared with conventional lead-acid batteries.
The end result of AGM technology is superior life performance. Please Note
Total up time is fully dependent on what is connected to the unit. How to Calculate VA:
VA = Volts x Amps. In South Africa, our Commercial Power Provider supplies a voltage of 220 to 240 -AC Volts depending on the region. You may use an average value of 230 Volts. An amp is the value which indicates how much current a device draws from the utility power. The manufacturer usually provides this information either on the device itself or in the user manual in the specifications list. Some manufacturers will provide the VA rating itself or the value of the current. The amps can also be measured with an instrument known as a current clamp. How to convert Watts to VA.
Some devices will indicate power consumption in watts instead of VA. You can easily convert this value to VA with the following equation: Watts = VA x 0.7 Gizzu Universal Voltage Protector Plug
The Gizzu Universal Voltage Protector Plug will keep your appliances protected against damage caused by high voltage, low voltage, voltage dips, and power surges. It monitors the electricity voltage and automatically disconnects the power if the voltage is too high, or too low, protecting appliances and electronics from damage. This is an essential accessory for environments with inconsistent power supply and is rated for 16A current. It regulates voltages between 180V and 260V to provide a stable supply to your appliance. If the voltage moves outside of these limits, power is cut to protect the equipment. Recommended for fridges, freezers, coolers, washing machines, computers, TVs, and HiFis. Simply connect your appliance to the mains via the Gizzu Universal Voltage Protector Plug to keep it safe. Features :
– Protects against high voltage, low voltage, voltage dips, and power surges
– Current protection up to 16A
– Low voltage protection from 180V
– High voltage protection from 260V
– Flame retardant material
– Start-up delay 90 seconds for high voltage and 90 seconds for low voltage
– Designed for fridges, freezers, cooler, washing machines, computers, TVs, and HiFis.
– Digital LED display Specifications :
– Nominal Voltage: 230Vac
– Frequency: 50/60Hz
– Current Rating: 16A
– Spike Protection: 160J
– Low Voltage Protection: 180V
– High Voltage Protection: 260V
– Material: Flame Retardant PC V0
– Product Dimensions: 6.7 x 11.5 x 20.3 cm
– Weight: 163g What’s in the box
1 x Gentech 1600 Watt Hybrid Inverter
1 x Steel Cabinet on Casters
2 x 100 ah AGM Battery 12 Volt
2 x Battery Strap
1 x Battery Cable Connector
1 x Gizzu Universal Voltage Protector – White
