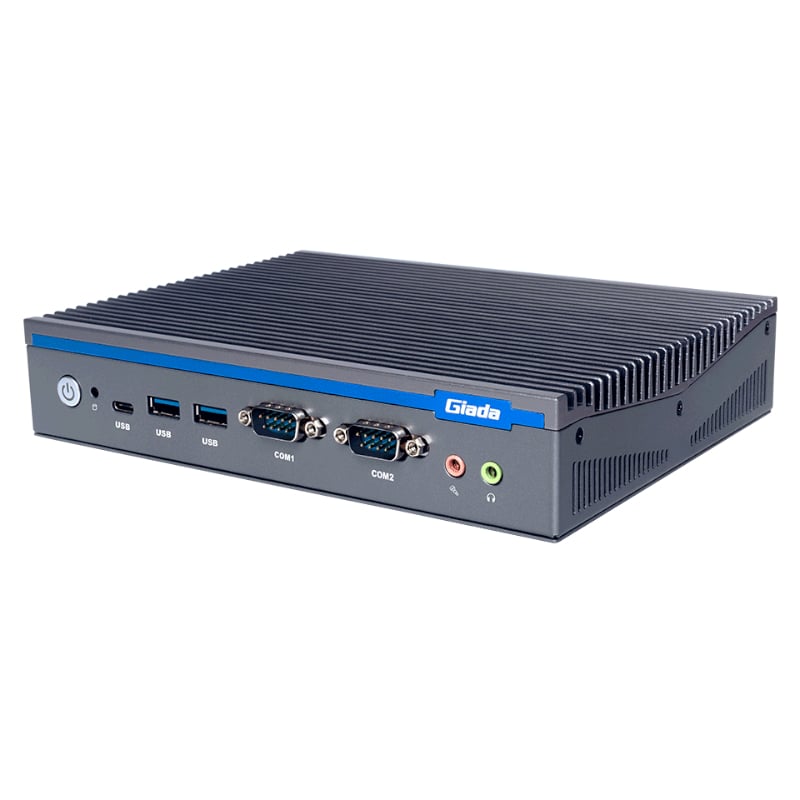

Giada Df612 I5-1235u 2xddr4 M.2 2xhdmi

The Giada DF612 model incorporates Intel’s 12th-Gen processors, specifically the i5-1235U. These processors offer a significant performance boost of 19 percent compared to the current 11th-gen “Rocket Lake” processors. The DF612 model is equipped with the Intel vPro and TPM 2.0 features, which provide enhanced productivity, remote manageability, and data security. The DF612 model is compatible with Intel integrated Iris Xe GPU, specifically for Core i5 and i7 processors. The device has the capability to deliver a maximum resolution ...of 8K (7680 x 4320@60 Hz) through its DP1.4 port. It can support two 4K displays (4096 x 2304@60Hz) using its two HDMI2.0 ports. It is an excellent option for large-format displays and kiosks used 24/7. The fanless design of a passive thermal cooling system reduces the failure rate and ensures that the device operates silently and remains dust-free. The Giada device is designed to be used in mission-critical applications. FEATURES: Intel Core i5-1235U processor
4 x HDMI, Supporting 4K Display
2 x SO-DIMM DDR4 Memory, Up to 64GB
1 x M-key M.2 (2242/2280) for SSD
Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access SPECIFICATIONS: Processor:
CPU: Intel Core i5-1235U processor
Frequency: 3.30 GHz (Up to 4.40 GHz )
Cores: 10
Memory:
Type: DDR4-3200MHz
Socket: 2 x SO-DIMM
Max Size: 64GB
Graphics:
GPU: Intel UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0, 8K 60fps 12b 4:2:0 HEVC/VP9/SCC
HDMI: 4 x HDMI (Max.4096 x 2304 @60 Hz)
Network:
Controller: 1 x Intel i219LM Gigabit Ethernet, 1 x Realtek RTL8111H Gigabit Ethernet
Interface: 2 x RJ45
Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E (CNVi)
I/O:
USB: 4 x USB3.2 Gen2, 2 x USB2.0
USB Type-C: 1 x USB Type-C3.2 Gen2
Serial Port: 1 x RS232, 1 x RS232/422/485
Audio: 1 x Mic-In, 1 x Audio-Out
Button: 1 x Power on, 1 x CLR-CMOS
Storage:
M.2: 1 x M-key M.2 (2242/2280) for NVMe
JAHC Tech:
WatchDog Timer: Yes
Auto Power On: Yes
Operation System:
Windows: Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: DC-IN, 19 V/3.42 A
Environment:
Operating Temperature: 0 ~ 40 ( 32 ~ 104 ) at 0.7m/s Air Flow
Relative Humidity: 95%@45 (non-condensing)
Certification: CE, FCC Class B, CCC
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction: Metal
Colour: Black
Dimensions: 20 x 15 x 4.0 cm What’s in the box
1 x Giada DF612 Intel Core i5 Embedded Computer – Grey
1 x WiFi Antenna
1 x User Manual
