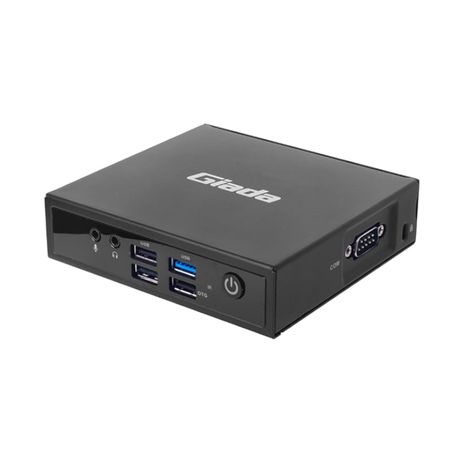

Giada DN73 RK3328 Quad-Core Entry Level Signage Player

The Giada DN73 is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and fanless design brings organisations all the performance and efficiency of the RK3328 Quad-Core Cortex-A53 CPU, plus an HDMI output with up to 4K resolution support. Its HDMI, USB ports, OTG support, gigabit LAN, Android OS, and support for mini-PCIe 4G cards make it very versatile for a more mobile experience. It can also be ...mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display. FEATURES:
RK3328 Quad-core Cortex-A53 up to 1.5GHz
Onboard DDR4 2GB Memory,
1 x HDMI, Supporting 4K 60Hz Display
Onboard eMMC 32GB
1 x USB3.0, 2 x USB2.0, 1 x USB2.0 OTG, 1 x RS232
1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
SPECIFICATIONS:
Processor:
CPU: RK3328 Quad-core Cortex-A53
Frequency: Up to 1.5GHz
Chipset: SOC
Memory:
Type: DDR4
Socket: Onboard
Max Size: 2GB
Graphics:
GPU: Mali-450MP2 GPU
Graphic Engine: 4K H.264 30FPS/H.265 video decoder, 2160P video encoder/1080P 60fps video decoders
HDMI: 1 x HDMI (Max. 4K @60Hz)
Network:
Controller: Realtek RTL8211E Gigabit Ethernet
Interface: 1 x RJ45
I/O:
USB: 1 x USB 3.0, 2 x USB 2.0, 1 x USB2.0 OTG
Display Interface: 1 x HDMI
LAN: 1 x RJ45
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Mini-PCIe: 1 x Full-size Mini-PCIe for 3G/4G
SIM: 1 x SIM Slot
WiFi+BT on Board: 1 x WiFi Module Onboard (2.4G, IEEE802.11 a/b/g/n) Optional: WIFI 5G
LED Indicators: 1 x HDD LED, 1 x Power LED
Storage:
eMMC: Onboard eMMC 32GB
JAHC Tech:
WatchDog Timer: 0~255 Second Time Out Support
Auto Power On: Power Activated Automatically Start
Remote Control: By IR Controller for Power On
RTC: Set Up Independently Every day, A Week as a Cycle
Operation System:
Android: Android7.1 / Android 10.0
Power:
Power Type: DC-IN
Input Voltage: 12V/2A
Environment:
Operating Temperature: 0 ~ 40 ( 32 ~ 104 ) at 0.7m/s Air Flow
Relative Humidity: 95%@40 (non-condensing)
Certification: CE, FCC Class B
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JT-NUC-JC530)
Construction: Metal
Fanless: Yes
Colour: Black What’s in the box
1 x Giada DN73 RK3328 Quad-Core Entry Level Signage Player – Black
1 x Power Cable
1 x User Manual
