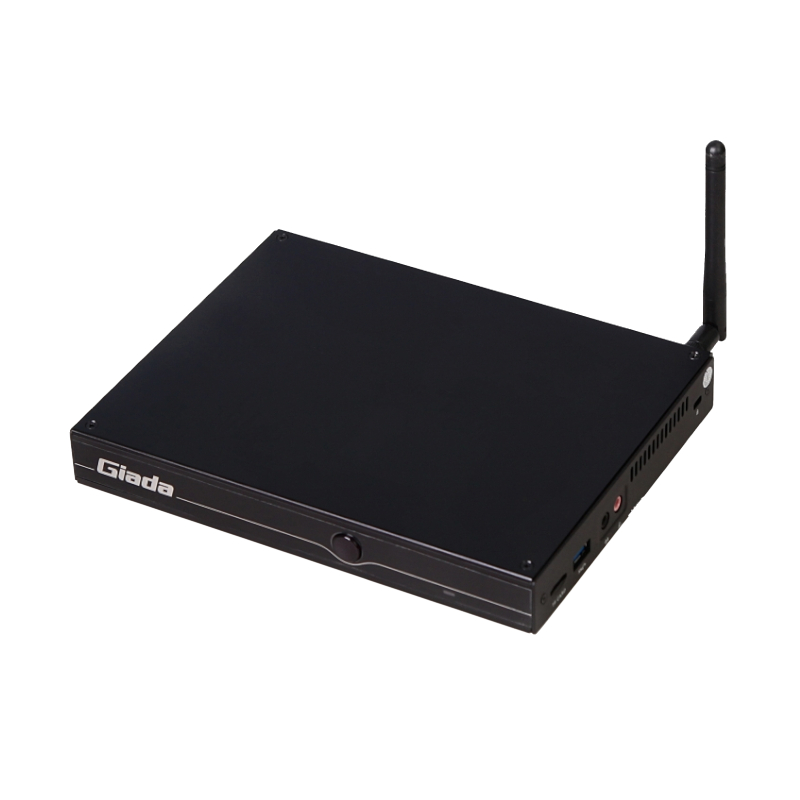

Giada F110D Fanless Celeron J1900 2xRJ45

The Giada F110D Fanless Digital Signage Player is an entry-level embedded computer and is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. Its compact and powerful design brings organizations all the performance and efficiency of the Intel Celeron J1900 CPU, plus a VGA and HDMI output with up to 1080p resolution support. Its VGA, HDMI, USB ports, dual gigabit LAN, Windows and Linus OS support, and support for mSATA SSDs and mini-PCIe 4G cards ...make it very versatile. It can also be mounted in various ways thanks to its VESA mount support and can easily be hidden behind a monitor or large format display. FEATURES:
Intel Celeron J1900 Processor
1 x DP, 1 x HDMI, Supporting 4K Display
1 x SODIMM DDR3L slot (support up to 8GB)
1 x 2.5 SATA, 1 x Full Size mSATA, 1 x TF Card Reader
1 x Half-size Mini-PCIe for WiFi/BT
2 x RJ45
SPECIFICATIONS:
Processor:
CPU: Intel Celeron J1900 Processor
Frequency: 2.00GHz (Up to 2.42GHz)
BIOS: AMI Source Code
Chipset: SOC
Memory:
Type: DDR3L-1333MHz
Socket: 1 x SO-DIMM
Max Size: 8GB
Graphics:
GPU: Intel HD Graphics
Graphic Engine: DirectX 11.1, OpenGL 3.0, OCL 1.1, OpenGL ES 2.0
HDMI: 1 x HDMI (Max.1920×1080@60Hz)
VGA: 1 x VGA (Max. 2048 x 1280@60Hz)
Network:
Controller: 2 x Realtek 8111H Gigabit Ethernet
Interface: 2 x RJ45
I/O:
USB: 1 x USB 3.0, 4 x USB 2.0
Serial Port: 2 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT & SPDIF
Mini-PCIe1#: 1 x Full-size Mini-PCIe for mSATA/3G/4G
Mini-PCIe2#: 1 x Half-size Mini-PCIe for WiFi/BT
SIM: 1 x SIM Slot
Storage:
SATA: 1 x 2.5 SATA
mSATA: 1 x Full-size mSATA
Card Reader: 1 x TF Card Reader
JAHC Tech:
WatchDog Timer: 0~255 Second Time Out Support
Auto Power On: Power Activated Automatically Start
RTC: Set Up Independently Every day, A Week as a Cycle
Remote Control: By IR Controller for Power On
Wake On Lan: Yes
Operation System:
Windows: Windows 7/8.1/10(64-bit)
Linux: Support
Power:
Power Type: DC-IN
Input Voltage: 19V/2.1A
Environment:
Operating Temperature: 0 ~ 40 ( 32 ~ 104 ) at 0.7m/s Air Flow
Relative Humidity: 95%@40 (non-condensing)
Certification: CE, FCC Class B, CCC
Fanless: Yes
Mounting: Desk/Wall Mounting and VESA Mounting Kit (JZ183)
Construction: Metal
Colour: Black What’s in the box
Giada F110D Intel Celeron Fanless Digital Signage Player – Black x1
Power Cable x1
User Manual x1
