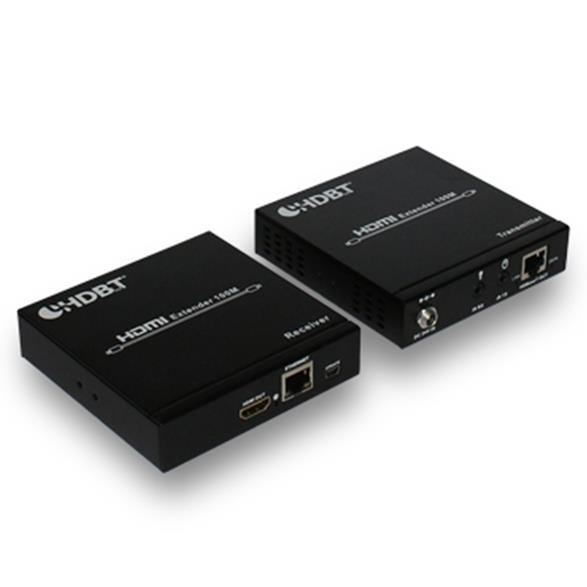

HDCVT HDMI 100m HDBaseT IR RS232 Extender

The HDMI extender over single CAT5e/6/7 with 100BaseT Ethernet, Bi-directional IR, RS-232 and Bi-directional PoC can make your home or office set-up more efficient and easy to use. Description
Technical
HDMI Compliance HDMI 2.0a
HDCP Compliance HDCP 2.2
Video Bandwidth 10.2 Gbps
Video Resolutions up to 4K2K@60Hz(4:2:0),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit, 12-bit, 16-bit
Audio Formats PCM 2CH, LPCM 5.1, ...LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection Human body model – ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs TX:
1x HDMI Type A [19-pin female] 1x 3.5mm Stereo Mini-jack [Infrared Receiver] 1x 3-pin Phoenix connector [RS-232] 1x RJ45 [LAN Serving] RX: 1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Receiver] Outputs TX:
1x RJ45 [HDMI & Propriety Data] 1x 3.5mm Stereo Mini-jack [Infrared Emitter] RX: 1x HDMI Type A [19-pin female] 1x 3.5mm Stereo Mini-jack [Infrared Emitter] 1x 3-pin Phoenix connector [RS-232] 1x RJ45 [LAN Serving] Mechanical
Housing Metal Enclosure
Dimensions TX/RX: 100mm [W] x 100mm [D] x 25mm [H] Net Weight TX/RX: 320g
Power Supply Input: AC100 – 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption (Max) 12W with PoC
Operation Temperature 32 – 104°F / 0 – 40°C
Storage temperature -4 – 140°F / -20 – 60°C
Relative Humidity 20 – 90% RH (no condensation)
