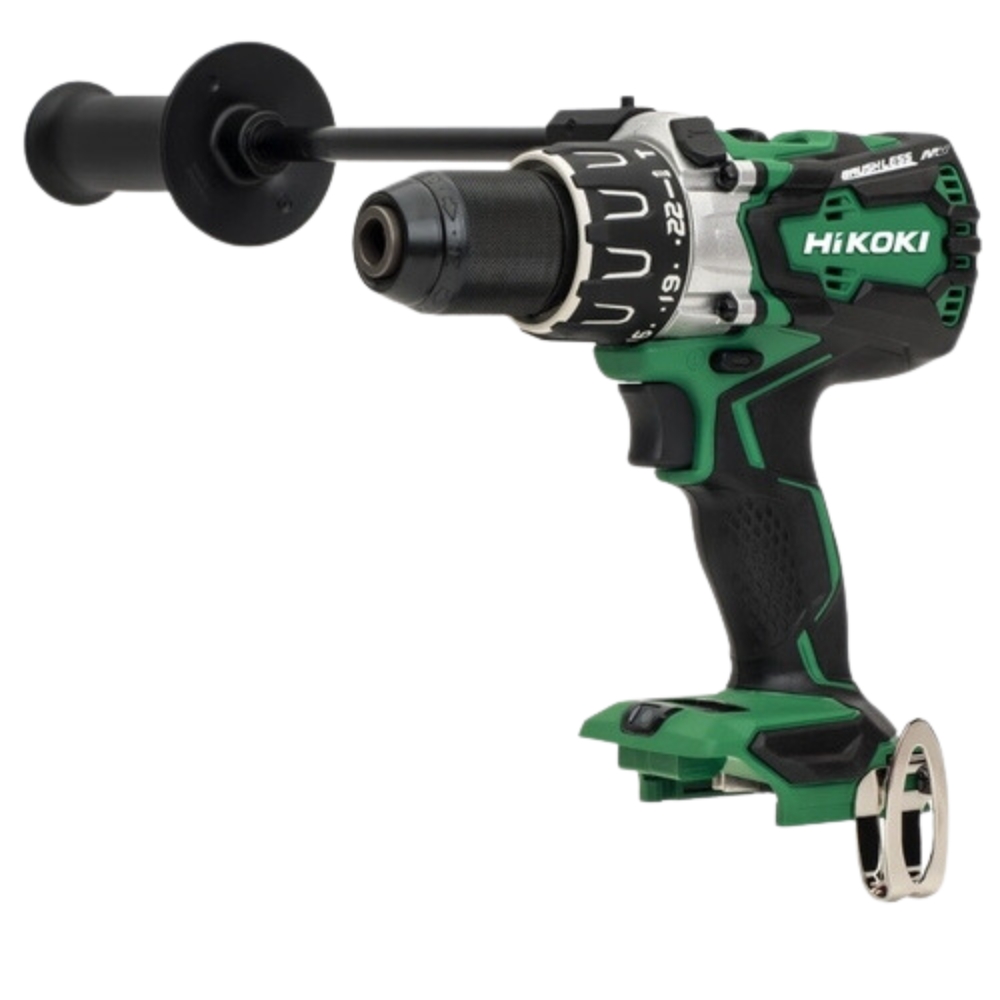

Hikoki – Cordless Impact Drill – 36V – 13mm

Enhanced Application Versatility
Able to drill a large hole in siding / ALC / plywood with a hole saw or self-feed bit, which results in greatly increased versatility.

Max. Capacity
– Steel, Wood, Brick Siding, Wood Screws
(Coach Bolt)
16mm,102mm,20mm,200mm,12mm
– Fastest in classx1 Drilling Speed
– Time to Drill a Hole

When drilling (in High Mode + Drill Mode) into SPF 76mm in thickness with a 38mm auger bit.
Time to Drill a Hole
As of July 2017. Among cordless impact driver drills made by leading power tool manufacturers.( Surveyed by Koki Holdings.)
Vs. the 18V DV18DBL2 cordless impact driver drill.
Significantly Prolonged Continuous Operation Time
Increasing the voltage of the Lithium-ion battery from 18V to 36V results in a slower temperature rise of the motor. Even when working continuously, the 36V MULTI VOLT tools are less likely to stop due to overheating than their 18V counterparts.
Motor Temp Rise under Constant Load
Vs. the 18V DV18DBL2 cordless impact driver drill.
Significantly Prolonged Continuous Operation Time
Drilling into Wood (in High Mode + Drill Mode): Approx. 70 Holes
(When drilling into SPF 76mm in thickness with a 38mm auger bit.)
Drilling into Mortar (in High Mode + Impact Mode): Approx. 120 Holes
(When drilling 50mm deep holes into mortar with a 10 masonry drill bit)

xThe runtime is for reference purposes. It depends on the workpiece material and operating conditions.
– Just as Compact as 18V Tools
– The compact design with 204mm overall length provides excellent handling.
– Double-Molded, Large Clutch Dial
– The dial is clearly readable, even when well used. It’s also easy to grip for better handling.

Reactive Force Control
RFC
– When the tool bit is suddenly overloaded during operation, the motor stops before the drill twists so as to minimize the danger of twisting the user’s arms
– Depending on operating conditions, Reactive Force Control may not work or may not provide the specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation.

Specifications
Drill Cuck: 1.5 – 13mm (1/16 – 1/2 ) Keyless
Capacity: Brick 20mm (3/4 )
Mild Steel: 16mm (5/8 )
Soft Wood: 102mm (4 )
Wood Screw: 12x100mm (15/32 x4 )
Machine Screw: 6mm (1/4 )
Battery Voltage: 36V
No Load Speed: High: 0 – 2,100/min
Low: 0 – 500/min.
Impact Rate: High: 0 – 31,500/min.
Low: 0 – 7,500/min.
Max Torque: Hard : 138Nm (1,220in.-lbs.)
Soft: 64Nm (566in.-lbs.)
Torque Setting: 2 – 8Nm (18 – 71in.-lbs.)
Overall Length: 204mm (8 )
Weightx1: 2.7kg (6.0lbs.) with BSL36A18
Vibration Total Values:
(Triax Vector Sum)x2: Drilling Into Metal:
Vibration emission
value ah, ID = 10.5m/s2
Uncertainty K = 1.5m/s2

What’s in the box
1 x Hikoki – Cordless Impact Drill – 36V – 13mm
