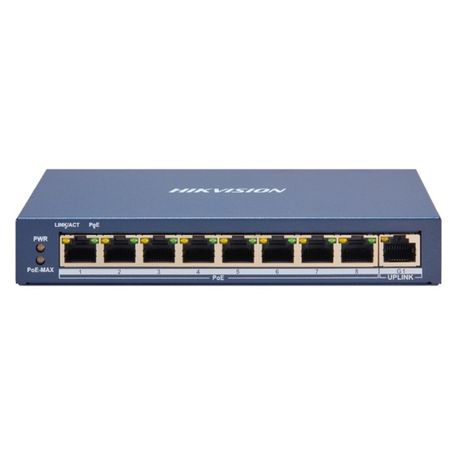

Hikvision 8 Port Fast Ethernet Smart POE Switch

• 8 × 10/100M PoE ports,1 × Gigabit RJ45 port
• Total PoE Power Budget 110 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

8 Port Fast Ethernet Smart POE Switch
– 8 × 100 Mbps PoE RJ45 ports, 1 × gigabit network RJ45 ...port.
– IEEE 802.3at/af Standard for PoE ports.
– Network topology management, alarm push, network health monitor.
-6 KV surge protection for PoE ports.
– Up to 300 m long-range transmission.
-AF/AT camera can reach up to 300 m in extend mode. Network Parameters
-Port Number8 × 10/100 Mbps PoE ports, and 1 × Gigabit RJ45 port
-Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive Working Mode
-Standard mode (default)
-Extend mode -Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
-Forwarding Mode: Store-and-forward switching
-MAC Address: Table16 K
-Internal Cache: 4 Mbits
-Switching Capacity: 3.6 Gbps
-Packet Forwarding Rate: 2.6784 Mpps What’s in the box
1 x Hikvision 8 Port Fast Ethernet Smart POE Switch
1 x Instruction Manual
