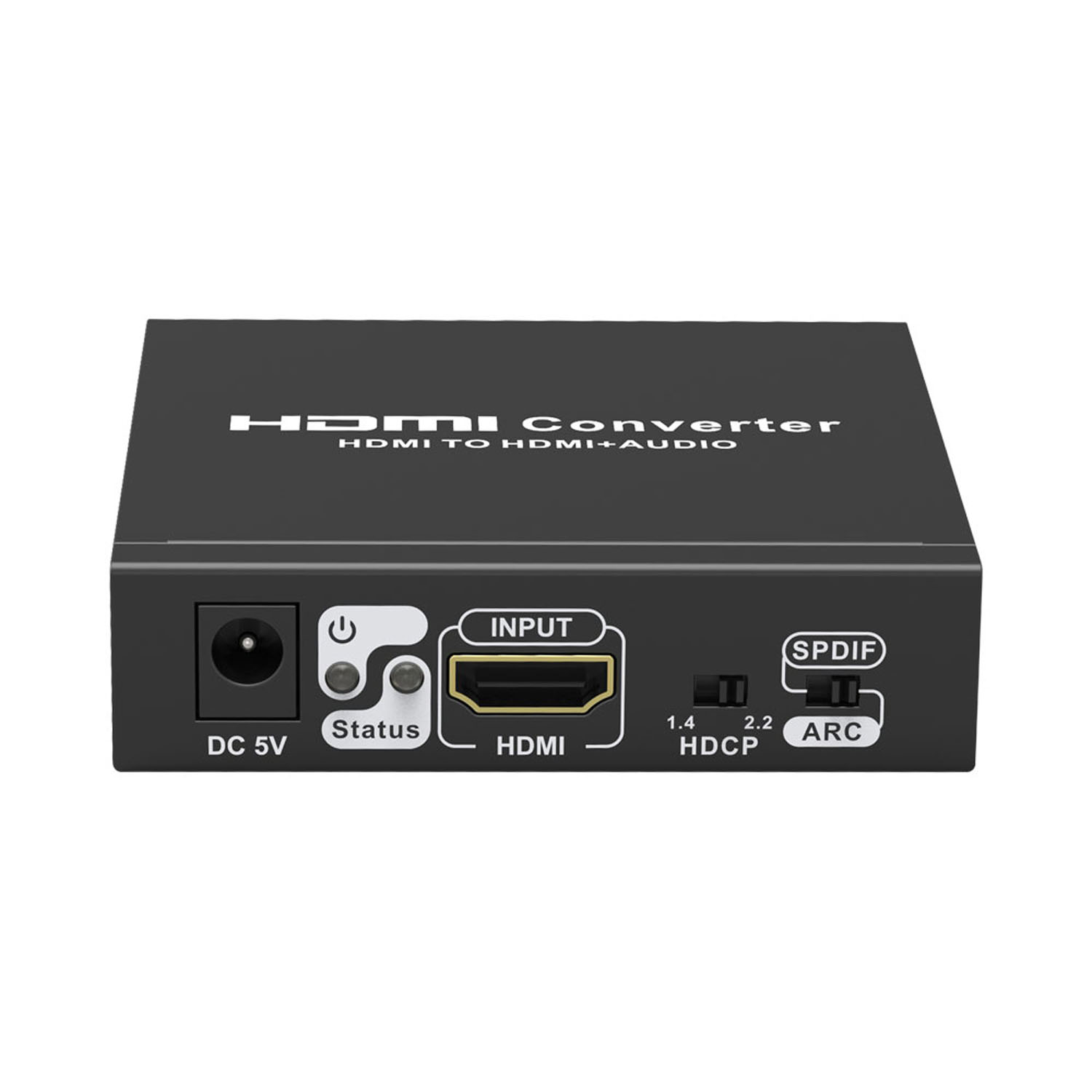

Lenkeng HDMI2.0 Audio Extractor with ARC and HDMI Bypass

Lenkeng HDMI2.0 Audio Extractor with ARC and HDMI Bypass (LKV3061) FEATURES One HDMI input converted to one HDMI Video + (SPDIF+R/L+COAXIAL) Audio output. (SPDIF optical audio output and COAXIAL audio output cannot be used simultaneously. R/L stereo output is not available when using the ARC function)
Supports HDMI2.0, HDCP2.2, HDCP1.4
Supports HDCP1.4 to HDCP2.2 and HDCP2.2 to HDCP1.4 conversion
Supports 3D video format
Supports ARC function
Supports HDR
Resolution supported is ...up to 4Kx2K@60Hz Ultra HD
Supports YUV4:2:0 / 4:2:2 / 4:4:4 and RGB 4:4:4
Lossless transmission
Plug and play, easy installation
SPECIFICATIONS HDMI Compliance: HDMI2.0
HDCP Compliance: HDCP2.2, HDCP1.4
HDMI Resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 4Kx2K @24 / 25 / 30 / 60Hz
Audio Formats: Dolby, DTS, LPCM
Maximum Transfer Rate: 18Gbps
Input and Output TMDS Signal: 0.7?1.2vp-p
Input and Output DDC Signal: 5vp-p (TTL)
Supported Input/Output Cable Lengths: ?5m (AWG24)
Dimension: 80 (L) x 80 (W) x 19.5 (H) mm
Weight: 175g What’s in the box
Converter
