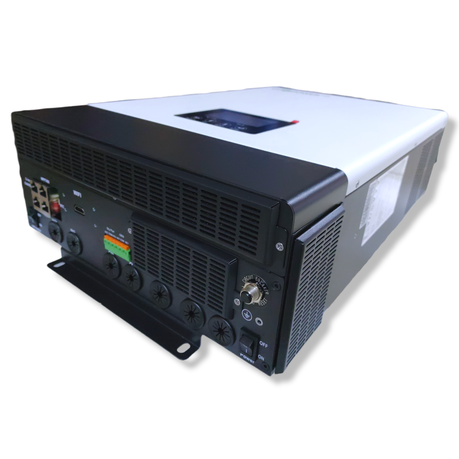

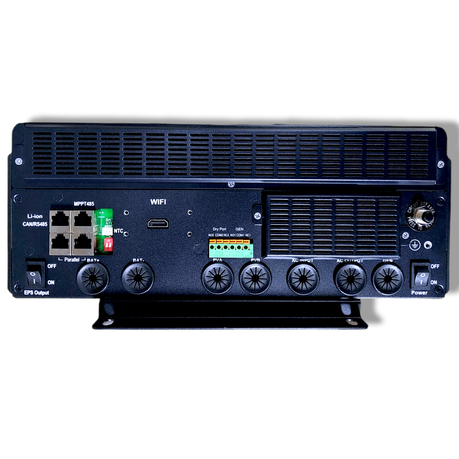

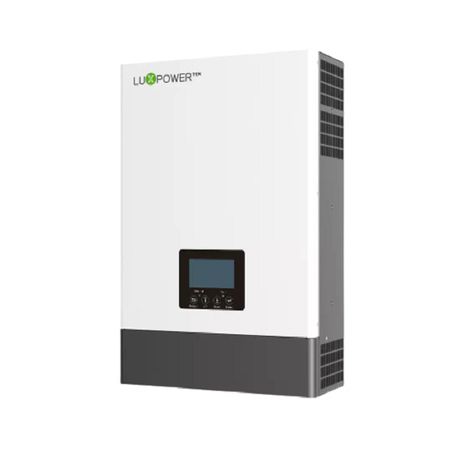

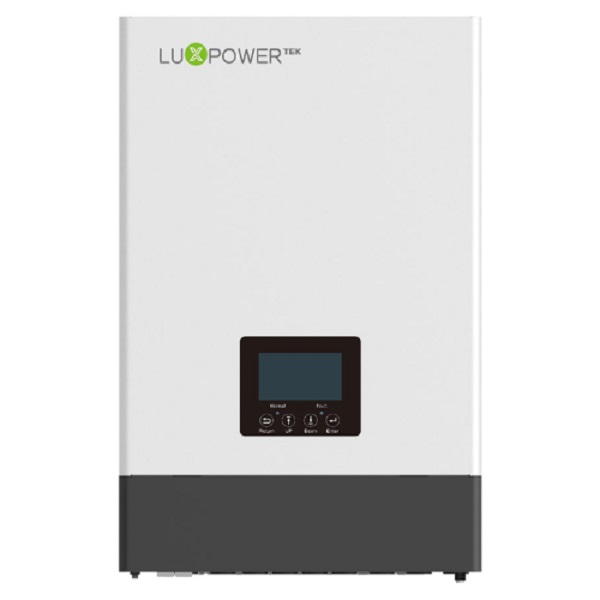

LuxPower Hybrid Inverter 5000W 48V – SNA5000WPV

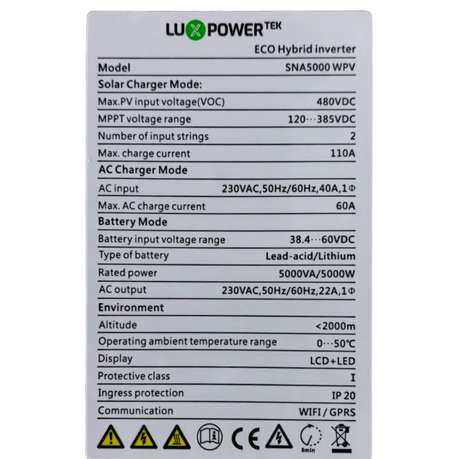

General Model: SNA 5000 WPV
Battery voltage: 48VDC.
Inverter Output Waveform: Pure Sine-Wave.
Rated Power: 5000VA/5000W.
Parallel Capability: Yes, 9 units.
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
Surge Power: 10000VA.
Efficiency (Peak): 93%.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger Maximum PV Array Power: 6000W.
2 MPPT Controllers
MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
Maximum PV Array Open Circuit Voltage: 480VDC.
Maximum Efficiency: 98%.
...Maximum Solar Charge Current: 100A.
AC Charger Charge Current: 60A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz (Auto sensing)
Build in BMS(Battery management System) BMS Compatible with
Pylon
Dyness
BYD
Shoto
Revov
UZ Energy
Wifi Remote Monitoring Flexible Working Modes with settable charge an dload power supply priority Support Solar and AC take the load jointly What’s in the box
1 x Luxpower SNA5000 WPV 5KW 48V Eco Hybrid Inverter
1 x user manual
1 x Wi-Fi 4G dongle and manual
5 x Cross Head screw
4 x Expansion Screw and tube
2 x Nut
