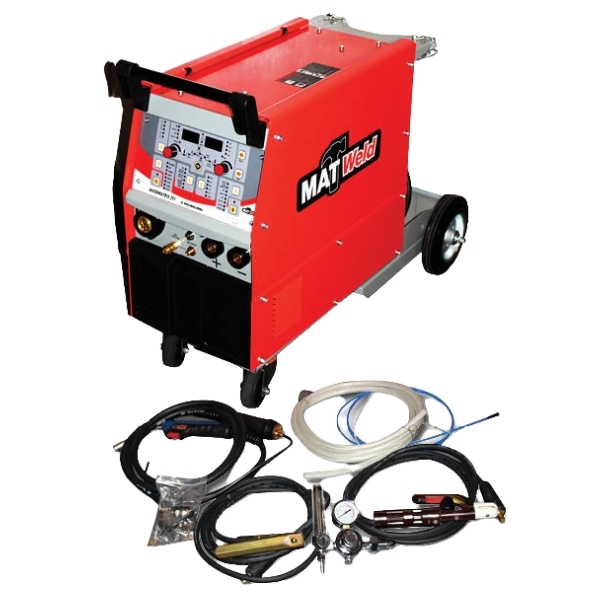

Matweld – Welding Machine / Welding Pulse Inverter (Mig, Tig, Arc) – 250Amp

Description:
– MAT9075 Matweld Welder Mig 250 Amp Pulse is a full double pulse Mig welder with synergic functionalities. What makes this machine unique is that you can Mig weld from thin to 8mm stainless or aluminium within Mig welding. This unit also has the capacity to tig weld and arc weld making it a multi-process welder. The machine has a 60% duty cycle at 250 amps. Specifications:
– Input Voltage: 220V± 15% (50-60Hz)
– Fuse Capacity: 55A
– Rated Output : 250A / 26.5V<...br /> – Rated No-Load Voltage : 77± 3V
– Duty Cycle(at 40): 60%, 250A 26.5V
– Cooling Method : Air cooling
– Insulation Level : F
– Shell Protection Class: IP21S
– MMA Welding Current: 20-250A
– MIG/MAG Current: 30-250A
– MIG/MAG Welding Voltage: 12.0-33.0V
– TIG Start Arc Method: Lift-Arc
– TIG Current : 10-250A
– TIG Pulse Frequency : 0.1-400Hz
– TIG Pulse Duty Cycle: 10%-90%
– Welding Electrode Diameter (mm): 0.6/0.8/0.9/1.0/1.2 What’s in the box
1 x Matweld – Welding Machine / Welding Pulse Inverter (Mig, Tig, Arc) – 250Amp
