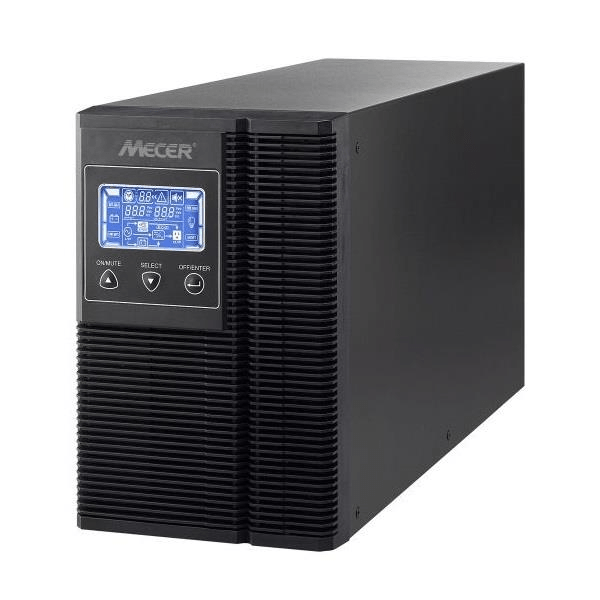

Mecer 1000VA On-Line Tower UPS (ME-1000-WPTU)

PRODUCT SPECIFICATIONS
Mecer 1000VA On-Line Tower UPS (ME-1000-WPTU)
– Capacity: 1000VA / 800W,
Battery Type: 12V/9Ah,
Frequency Range: 40Hz ~ 70 Hz
Includes AVR, Monitoring Software, Cables & Built-in Surge Protection,
Black Colour Overview
Mecer 1000VA On-Line Tower UPS (ME-1000-WPTU) has a wide input voltage range and an available converter mode. Features
This UPS can charge up to 90% in battery capacity within a 4 hour period. This UPS is generator compatible and the Waveform ...is Pure Sinewave. Note
A UPS is not designed to provide continuous power, it allows a computer or device to keep running for a short period of time when the primary power source is lost. Specifications: Phase
Single-phase with ground Capacity
1000 VA / 800 W Input
Voltage Range
Low Line Transfer
160 VAC / 140 VAC / 120 VAC / 110 VAC ± 5% (Ambient Temp. < 35°C) (based on load percentage 100% – 80% / 80% – 70% / 70-60 % / 60% – 0) Low Line Comeback
175 VAC / 155 VAC / 135 VAC / 125 VAC ± 5% (Ambient Temp. <35°C) (based on load percentage 100% – 80% / 80% – 70% / 70 – 60% / 60% – 0) High Line Transfer
300 VAC ± 5% High Line Comeback
290 VAC ± 5% Frequency Range
40HZ ~ 70 HZ Power Factor
? 0.99 @ nominal voltage Output
Output Voltage
200/208/220/230/240 VAC AC Voltage Regulation (Batt. Mode)
± 1% Frequency Range (Synchronised Range)
47 ~ 53 Hz or 57 ~ 63 Hz Frequency Range (Batt. Mode)
50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz Current Crest Ratio
3:1 Harmonic Distortion
? 3 % THD (Linear Load), ? 6 % THD (non-linear load) Transfer Time
AC Mode to Batt. Mode
Zero Inverter to Bypass
4 ms (Typical) Waveform (Batt. Mode)
Pure Sinewave Efficiency
AC Mode
88% Battery Mode
83% Battery
Battery Type
12 V 9 Ah Numbers
2 Typical Recharge Time
4 hours to recover to 90% capacity Charging Current (max.)
. Charging Voltage
27.4 VDC ± 1% Indicators
LCD Panel
UPS status, Load level, Battery level, Input/output Voltage, Discharge timer and Fault Conditions Alarm
Battery Mode
Sounding every 4 seconds Low Battery
Sounding every second Overload
Sounding twice every second Fault
Continuously sounding Physical
Dimension, D x W x H (mm)
282 x 145 x 220 Net Weight (kgs)
9.8 Environment
Humidity
20-90 % RH @ 0-40°C (non-condensing) Noise Level
Less than 50dB @ 1 Meter Management
Smart RS-232/USB
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix and Mac Optional SNMP
Power management from SNMP manager and web browser What’s in the box
1xMecer 1000VA On-Line Tower UPS (ME-1000-WPTU)
1xProduct Info
