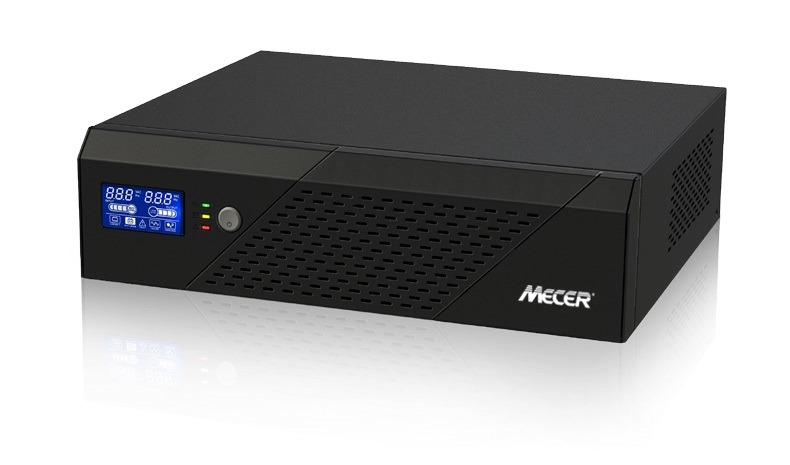

Mecer 1200VA 720W 12V Inverter

Mecer has been one of South Africa’s top-selling PCs over the past two decades. Mustek’s ongoing interaction within the international IT industry has ensured that Mecer has remained a techno-leader at the forefront of technology.

**Please note that batteries are not included and needs to be bought separately**

This unit is also intended for use with IT equipment and will not be able to run a kettle, heater or anything that ...uses a motor or an element.

Features:

– Simulated sine wave inverter

– Built-in AVR for voltage regulation

– Wide input voltage range: 90-280 VAC

– 12VDC available

– Overload and short circuit protection

– LCD display for comprehensive information

Specifications:

– MODEL Mecer IVR-1200LBK

– CAPACITY 1200 VA / 720 W

– POWER FACTOR 0.8

– Input Voltage range 90-280VAC

Line Mode:

– Output Voltage

– Bypass mode: 0utput voltage same as input voltage

– AVR mode: Output voltage = Input voltage 1.2 at Input voltage – Output Frequency Same as input

Battery Mode (BATTERIES NOT INCLUDED):

– Output Voltage 230Vac +/-10%

– Transfer Time 20ms typical

– Waveform Modified Sine-wave

Overload Capability:

– Bypass Mode (in VA and Watts) Load >110%+/-15% , alarm 5 mins then fault

– Load >130% +/-15%, fault immediately.

– AVR Mode (in VA and Watts)at Input voltage > 170VAC Load >100%+/-15%, go to bypass mode

– AVR Mode (in VA and Watts)at Input voltage 60%+/-15%, go to bypass mode

– Battery Mode (in W) Load>110% +/-15%, overload alarm for 15s, and then will switch to fault mode for 10s. Then unit will re-start for 5 times Load>120% +/-15% , fault & cut off O/P immediately.

Short Circuit Protection:

– Line Mode Breaker

– Battery Mode Current limit +Firmware Protection

Battery specs needed (NOT INCLUDED):

– Battery Voltage 12VDC

– Acceptable Battery Type Rechargeable lead-acid battery, Deep discharge battery

– Polarity Reserve Protection Yes

– Charger available I/P range 90 280V

Charger:

– Constant Current Charger Voltage 14.3VDC +/-2%

– Floating Charge Voltage 13.7VDC +/-2%

– Maximum Charge Current 10A or 20A

– DC Start Voltage >11VDC

Physical:

– Dimension, D X W X H (mm) 350 x 90 x 300

– Net Weight (kgs) 4.5

Environment:

– Operating Humidity 0 to 90% Relative Humidity(Non-condensing)

– Operating Temperature 0 degrees C to 40 degrees C

– Storage Temperature -15 degrees C to 50 degrees C
