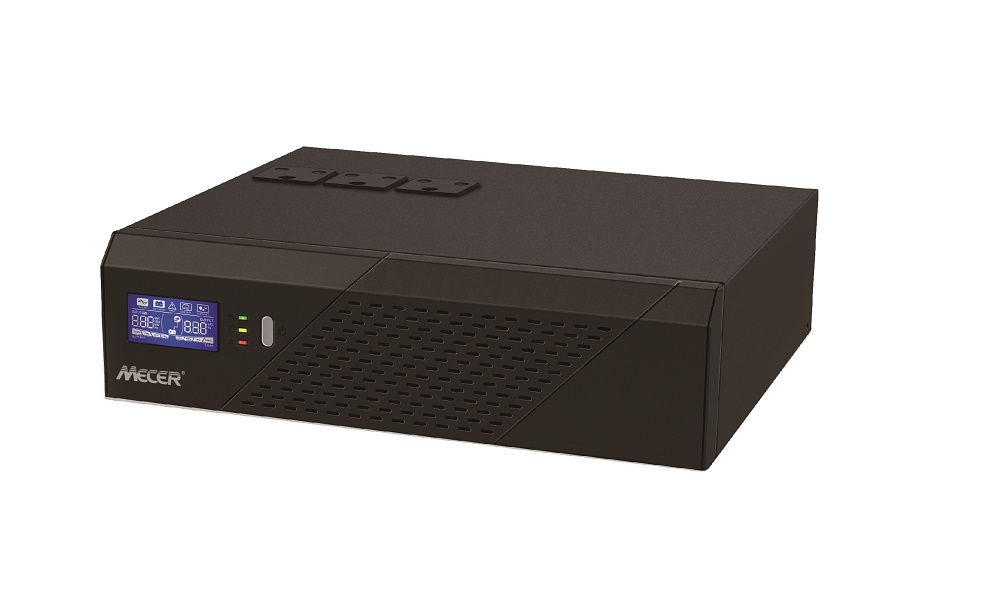

Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display (Without Battery)

Smart Power Source for Home and Office Appliances
The Mecer 2400VA, 1440W, 24V DC-AC Inverter is designed to power your home appliances or precious 3C electronics.
It also can handle motor-type loads with high surge power such as vacuums, small freezers, or drills.
Features
Simulated sinewave inverter
Wide input voltage range: 90-280VAC
Selectable charging current: 10A or 20A
24VDC available
Overload and short circuit protection
LCD display for comprehensive information ...CAPACITY
2400VA/ 1440W
INPUT
Voltage
230 VAC
Acceptable Voltage Range
90-280VAC
Frequency
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)
10%
Efficiency (Peak)
85%
Transfer Time
20 ms typical
Waveform (Batt. Mode)
Simulated sine wave
BATTERY & AC CHARGER
Battery Voltage
24 VDC
Floating Charge Voltage
27.4 VDC 2%
Low Battery Alarm Voltage
20.4Vdc 2%
Shutdown Voltage
19.8Vdc 2%
Overcharge Protection
30.0Vdc 2%
PROTECTION
Full Protection
Overload, short circuit and polarity reserve protection
PHYSICAL
Dimension, D X W X H (mm)
300 x 360 x 88
Net Weight (kgs)
4.8
OPERATING ENVIRONMENT
Humidity
0 to 90% Relative Humidity (Non-condensing)
Operating Temperature
0 C to 40 C
Storage Temperature
-15 C to 50 C What’s in the box
1 x 2400VA Inverter with Power Cable and Battery Cable
