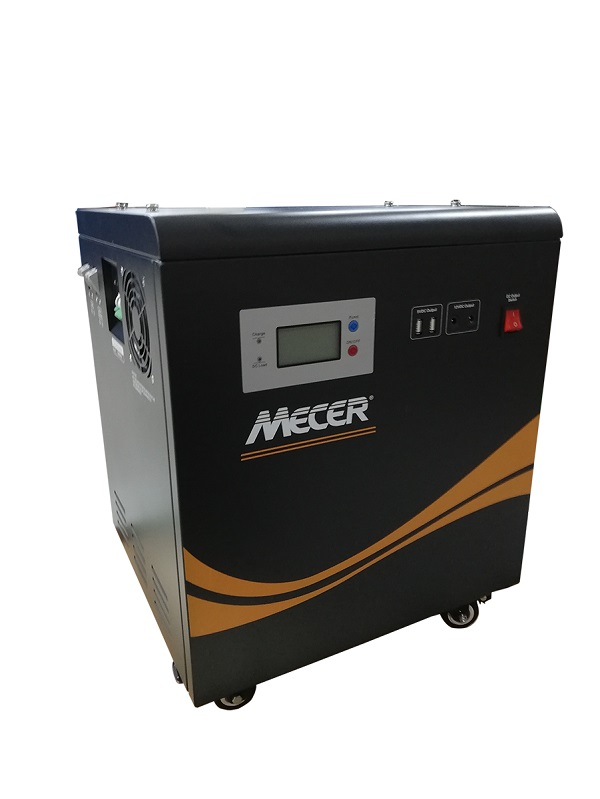

Mecer 2Kw 24V 2x100A Battery GEL Pure Sine Wave

AL Solar Power System
The product applies to diversified loads because its digital design, pure sine wave output and excellent overcurrent protection can withstand the loads with a large starting current; the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer life; the product provides universal 5VDC USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, ...forest monitoring, industrial and mining enterprises, frontier defense, sea islands, pasturing areas, etc. Features
Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
Convenient and practical 5VDC USB output port and 12VDC output port
Solar array and battery connrnon-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and overdischarge protection for a longer battery life
LCD and LEDS for visualization of operation status of the equipment
Overall automatic protection and alarms Including AC output over load protection, short circuit protection, etc. Specifications
INVERTER
Battery voltage: 24V
In-built battery specification: 100AH/12Vx2
Rated power: 2000W
Output voltage: 220VAC
Output frequency: 50 / 60Hz
Output waveform: Pure Sine Wave SOLAR INPUT
Maximum photovoltaic voltage (VDC): 100V
Charge voltage(VDC): 35V-100V
Rated charge current(A): MPPT 30A
Maximum power(Wp): 800Wp
Voltage of overcharge protection(VDC): 28.4V
Voltage of overcharge recovery(VDC): 28.0V
Voltage of floating charge(VDC): 27.4V DC OUTPUT
Voltage of high-voltage protection(VDC): 32V
Voltage of high-voltage recovery(VDC): 30.4V
Voltage of low voltage recovery(VDC): 25.2V
Voltage of low voltage protection(VDC): 22V
12VDC output port: DC ports ( MAX 2A))
Starting temperature of the exhaust fan: >45 C
Ambient temperature for operation: 0-40 C
Ambient temperature for storage: -25 – +55 C
Operation/storage conditions: 0-90% (no condensation)
External dimensions: DxWxH (mm): 435 X 395 X 561
Packing dimension: DxWxH (mm): 535 X 485 X 600 What’s in the box
1 x Mecer 2Kw 24V 2x100A Battery
1 x Manual
1 x Power cord
1 x Handles
