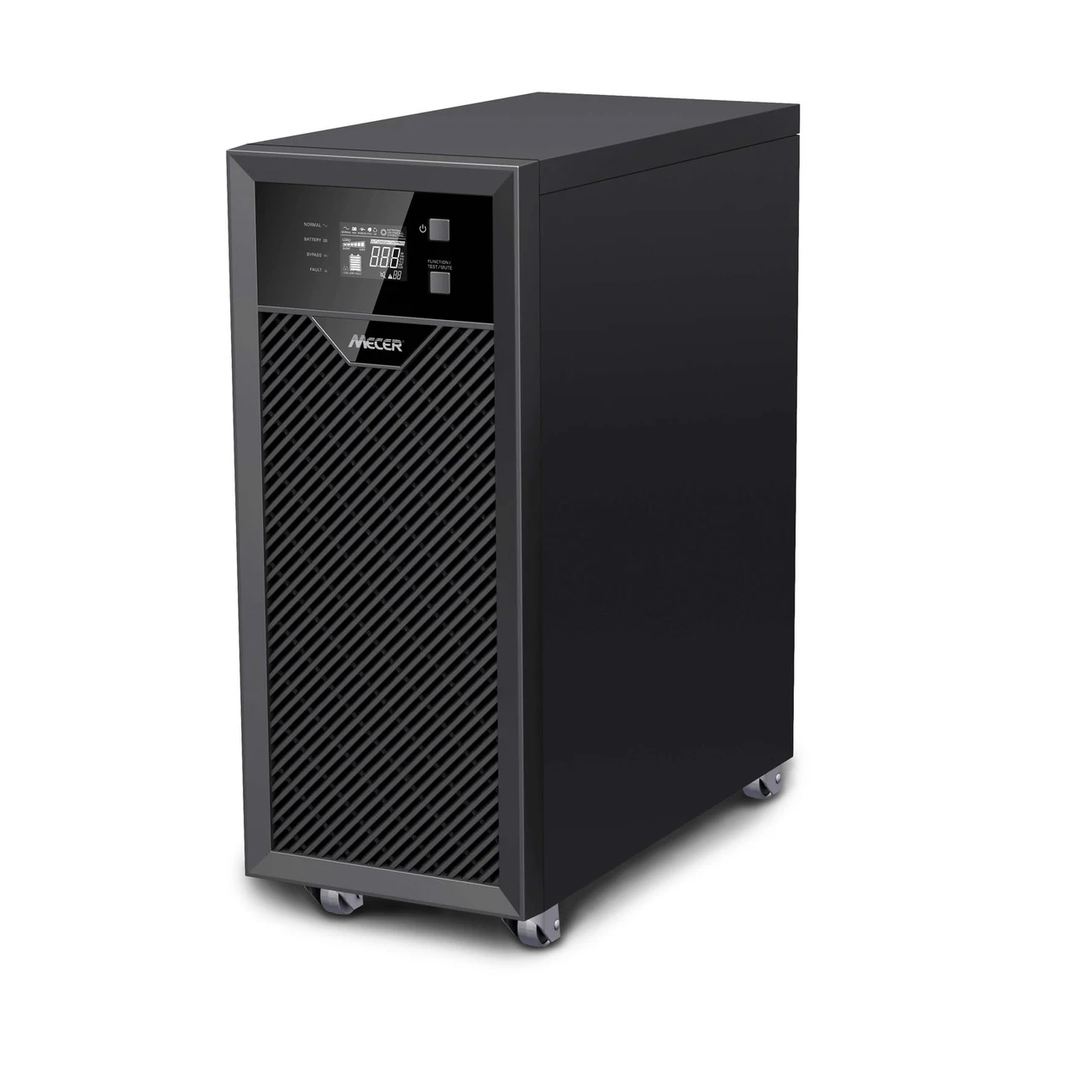

Mecer ME-6000-WPTV 6000VA / 6000W On-line Pure Sine Wave UPS

ME-6000-WPTV / ME-10000-WPTV
-Higher power density, more power output
-Wider input range, higher efficiency
-Ultra low noise, multiple configurable options
-High quality LCD with wide view
Model ME-6000-WPTV ME-10000-WPTV
Dimensions
WxDxH(mm) 248 x 500 x616 248 x500 x616
Weight(kg) 58.9 62.1
Power
Apparent Power(KVA)
Active power(KW)
6KVA/
5.4KW
10KVA/
9KW
Mains
Voltage range 120Vac-275Vac(phase to phase)
Currentx 32.1A ...max 52.6 A max
Frequency range 40Hz-70Hz
Power factor 0.99
Output
Rating Voltage 230Vac( 1%)
Rating Current 27A 45A
Frequency range 50Hz x (1 1%); Follow main power in phase lock range
Power factor 0.9
Output Overload
105%-125%, load transfer to bypass mode after 10 min (0-30 ) or
1min(30-40 );
125%-150%,load transfer to bypass mode after 30s;
Over 150%, load transfer to bypass after 0.5s
Load crest ratio 3:1( max)
THD <2%( 100% Line load)
Enviromental and safety
EMC Standard EN IEC 62040-2:2018 / EN 62040-2:2006 / IEC 62040-2:2016
Safety Standard EN62040-1:2008+A1:2013
Operation
temperature
0-40
Store temperature -25 to 55
Relative humidity 20% to 90%
Altitude <1000m
xThe max current is under 176Vac input, full rating load and empty battery charging. What’s in the box
1x Mecer ME-6000-WPTV 6000VA / 6000W On-line Pure Sine Wave UPS – Tower, AVR, Monitoring Software + cable, Built-In Surge protector
