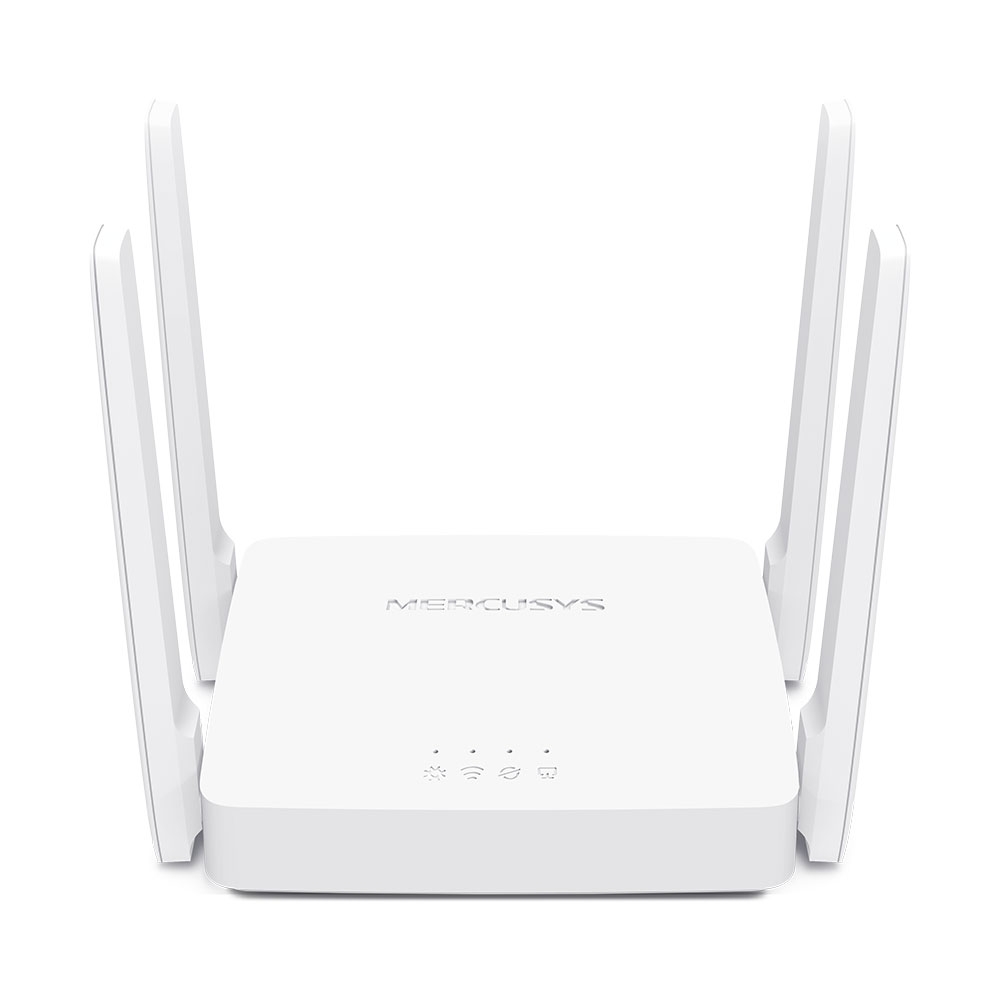

Mercusys AC10 AC1200 300Mbps Dual Band Wireless Router

High-Speed Wi-Fi – Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band) xxNB THIS ROUTER DOES NOT USE A SIM CARD, FIBRE (WAN) IS REQUIREDxx 4 High-Gain External Antennas – Receive strong Wi-Fi signals in every corner of your home Easy Installation – Set up in minutes guided by an intuitive web UI Active Parental Controls – Protect your family by setting appropriate access policies for responsible, safe internet use Multi-Mode – Access ...Point Mode, Range Extender Mode, and Router Mode supported to satisfy all application scenarios IPTV and IPv6 Supported WirelessWireless Standards IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz Frequency 2.4 GHz, 5 GHz WiFi Speeds Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz Reception Sensitivity 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7: -74dBm 11n HT20 MCS7: -71dBm 11a 6Mbps: -97dBm 11a 54Mbps: -79dBm 11ac VHT20 MCS8: -74dBm 11ac VHT40 MCS9: -70dBm 11ac VHT80 MCS9: -65dBm Transmission Power 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) Wireless Security WEP, WPA / WPA2, WPA-PSK / WPA2-PSK Wireless Functions Enable/Disable Wireless Radio, WMM Button Reset/WPS Button External Power Supply 9V/0.85A Antenna Type 4× 5 dBi Fixed Omni-Directional Antennas Ethernet Ports 1× 10/100 Mbps WAN Port 2× 10/100 Mbps LAN Ports What’s in the box
AC1200 300Mbps Wireless Dual Band Router (AC10)
Quick Installation Guide
