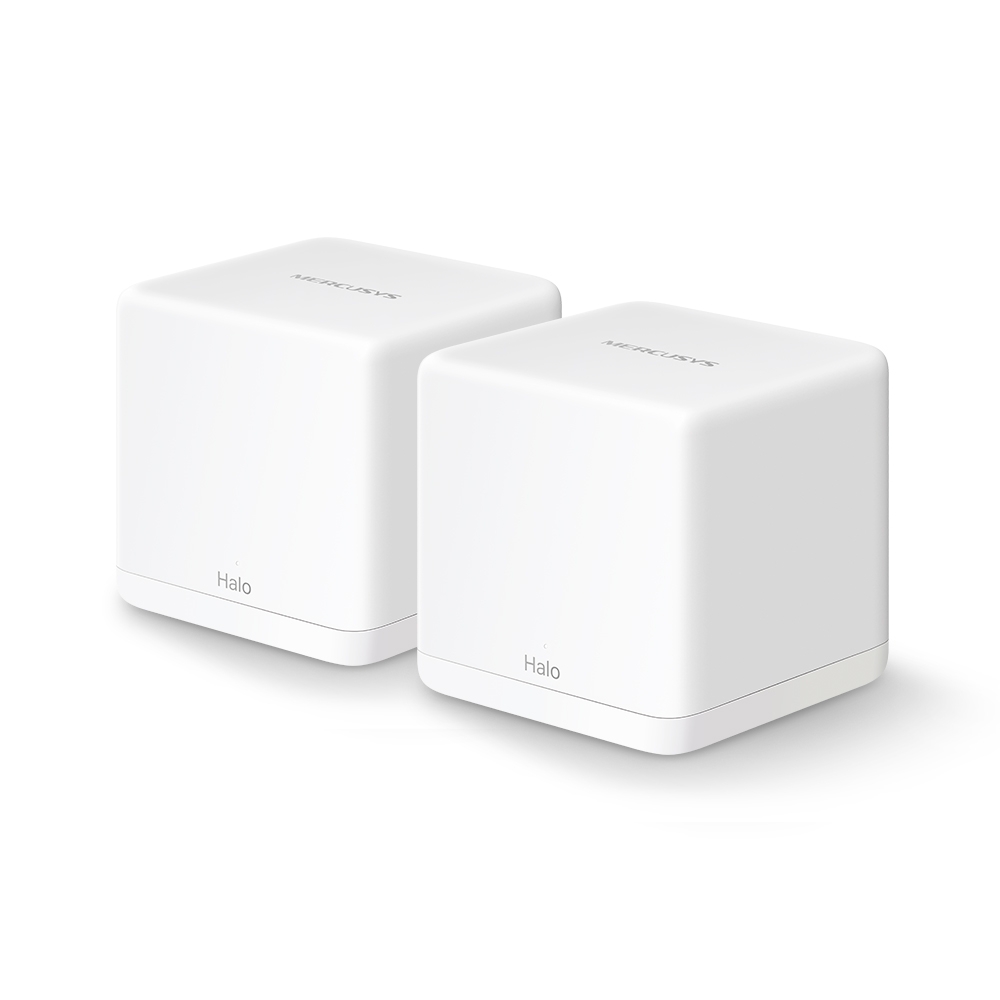

Mercusys HALO H30G AC1300 Whole Home Mesh Wi-Fi System (2-Pack)

One Unified Network – With advanced Mesh Technology, Halo units work together to form a single unified whole home network with one WiFi name and password. Seamless Roaming – Automatically switch between Halos as you move around your home, always getting the best signal to enjoy the fastest connections for all your devices. Whole Home Coverage – Blanket up to 2,800 ft² (260 m²) with high-speed WiFi, eliminating WiFi dead zones at your home. 1.3 Gbps Dual Band WiFi – Halo H30G provides fast and stable ...connections up to 100 devices with speeds of up to 1,300 Mbps and works with major internet service providers (ISPs) and modems. Easy App Control – Use the MERCUSYS App to quickly set up and manage your WiFi. Full Gigabit Ports – 2× Gigabit ports per Halo unit for lightning-fast wired connections WirelessWireless Standards
IEEE 802.11 a/n/ac 5 GHz, IEEE 802.11 b/g/n 2.4 GHz WiFi Speeds
867 Mbps on 5 GHz, 400 Mbps on 2.4 GHz Reception Sensitivity
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-73dBm
5GHz:
11a 6Mbps:-95dBm
11a 54Mbps:-77dBm
11ac VHT20 MCS8:-72dBm
11ac VHT40 MCS9:-67dBm
11ac VHT80 MCS9:-63dBm Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) Wireless Security
WPA-PSK/WPA2-PSK Mesh protocol
802.11k/v/r SoftwareOperation Modes
Router, Access Point Quality of Service
WMM WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management
Local Management, Remote Management, Multi-Managers DHCP
Server, Client Firewall Security
SPI Firewall Protocols
Supports IPv4 and IPv6 Guest Network
2.4 GHz Guest Network x 1,
5 GHz Guest Network x 1 HardwareDimensions
3.5 × 3.5 × 3.5 in (88 × 88 × 88 mm) Interfaces
2× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing) Button
Reset button OthersPackage Contents
2× Halo H30G Units
1× RJ45 Ethernet Cable
2× Power Adapters
1× Quick Installation Guide Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing What’s in the box
2 x Halo H30G Units
1 x RJ45 Ethernet Cable
2 x Power Adapters
1 x Quick Installation Guide
