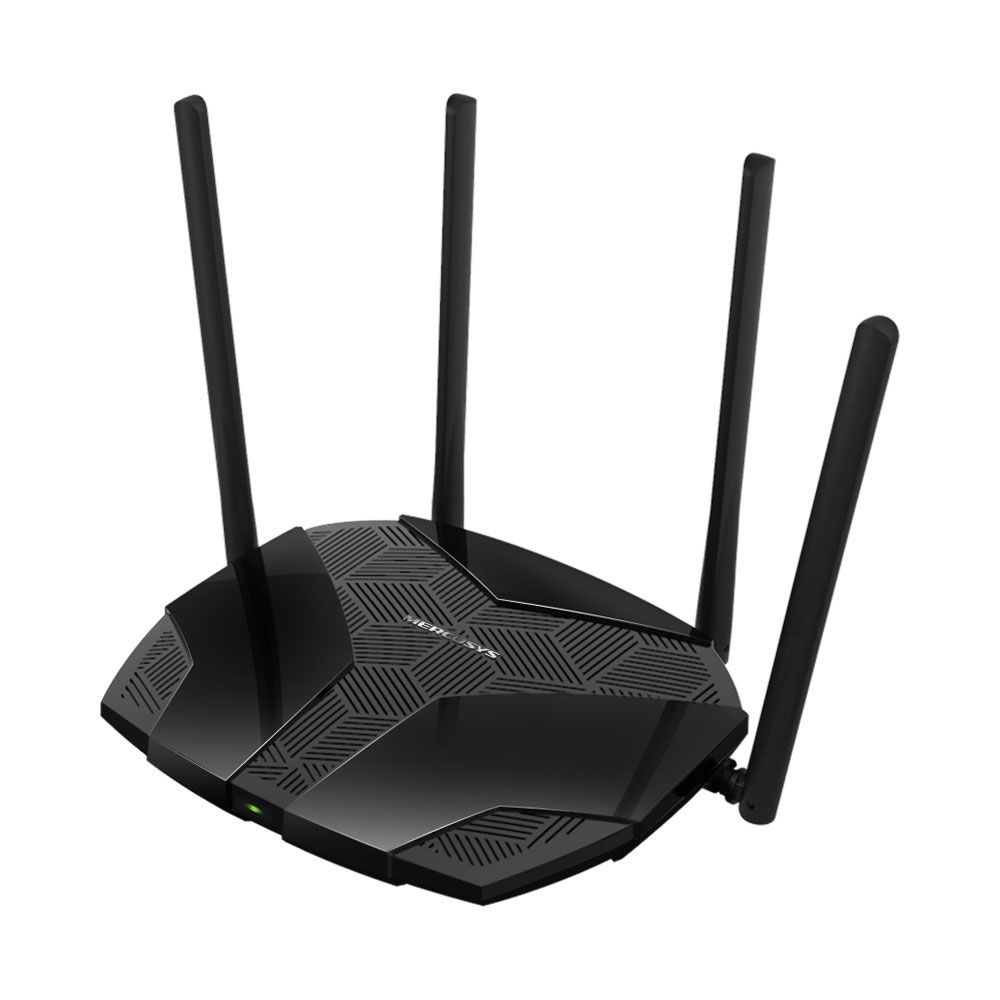

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router

Next-Gen Wi-Fi 6 Speeds-Optimal Wi-Fi 6 Speeds Reaching Up To 1.8 Gbps (1201 Mbps On The 5 Ghz Band And 574 Mbps On The 2.4 Ghz Band)
Broader, Stronger Coverage-4× Multi-Directional High-Gain Antennas With Beamforming Boost Stable Connections Throughout Your Home For Strong Wi-Fi Signals In Every Corner
Overall Security Protection-The Latest WPA3 Provides Improved Wi-Fi Security
Gigabit Wired Connections-Make Full Use Of Your Internet Access And Transfer Data At Dizzying Speeds For Peak Performance
Eco-Friendly Power Saving-Target Wake Time (TWT) Reduces Power ...Consumption For Your Mobile Devices During Data Transmissions
Less Wi-Fi Interference-Minimizes The Interference From Neighbouring Signals To Improve Transmission Efficiency With BSS Colour
Smart Connect-Intelligently Chooses The Best Available Band For Each Device
Access Point Mode-Extends A Wired Network And Makes It Wireless WirelessWireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards WiFi Speeds
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz) Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP) Wireless Security
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption Wireless Functions
Enable/Disable Wireless Radio, WMM SoftwareWAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP Management
Access Control
Local Management
Remote Management DHCP
Server, DHCP Client List NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ Firewall Security
SPI Firewall, IP and MAC Address Binding Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network VPN Passthrough
OpenVPN, PPTP supported Hardware Dimensions
8.2 × 6.8 × 1.6 in (208.8 × 171.6 × 41.7 mm) Interfaces
1×Gigabit WAN Port + 3× Gigabit LAN Ports Button
Reset/WPS Button Antenna Type
4×5 dBi Fixed Omni-Directional Antenna Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing What’s in the box
AX1800 Wi-Fi Router
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
