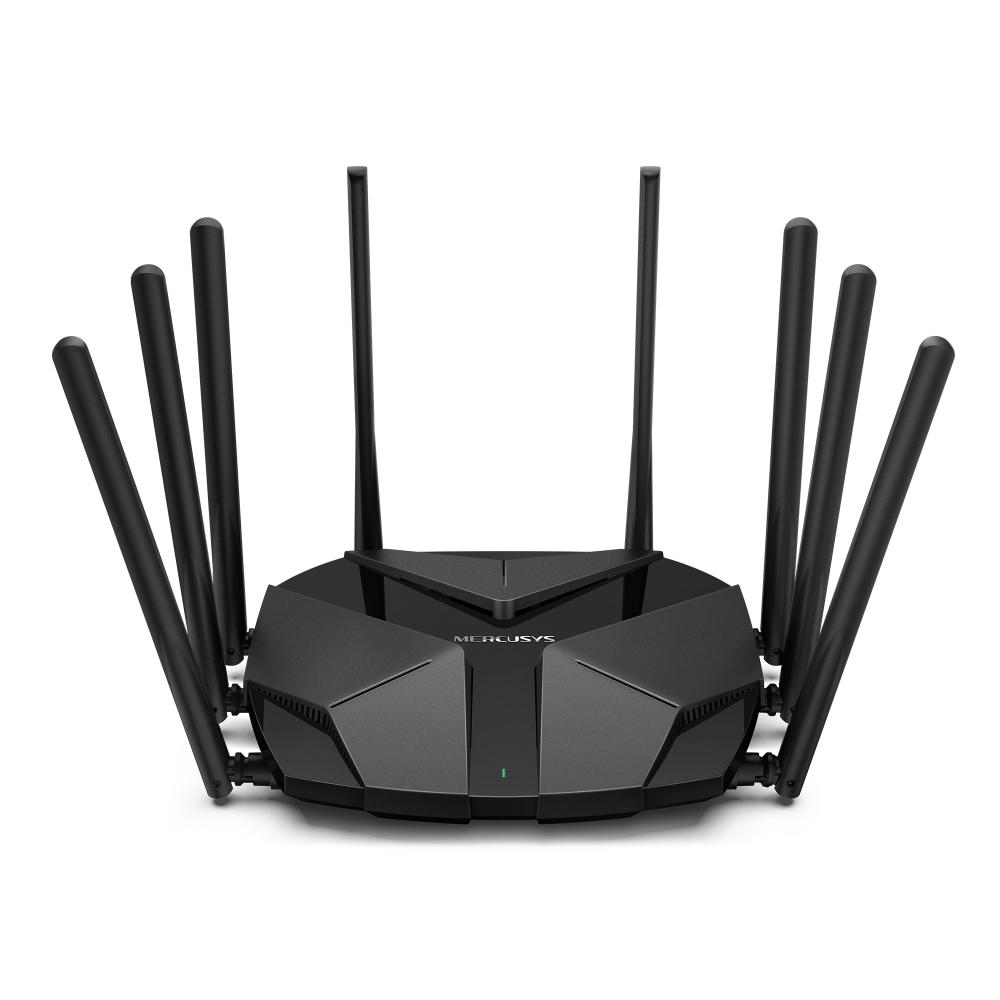

Mercusys MR90X AX6000 8-Stream Wi-Fi 6 Router

MR90X
– OPTIMAL WI-FI 6 SPEEDS: Optimal Wi-Fi 6 speeds reaching up to 6Gbps for faster browsing, streamings, and downloading, all at the same time.
– 2.5Gbps MULTI-GIG PORT: Break through the 1G bottleneck and drive your devices to peak performance.
– MORE DEVICES, MORE FUN: Supports 4×4 MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.
– Wi-Fi THAT GOES FARTHER: 8× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong Wi-Fi signals in every corner.<...br /> – OVERALL SECURITY PROTECTION: The latest WPA3 provides improved Wi-Fi security.
– GIGABIT WIRED CONNECTIONS: Make full use of your internet access and transfer data at dizzying speeds for peak performance.
– ECO-FRIENDLY POWER SAVING: Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions.
– LESS WI-FI INTERFERENCE: Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring.
– SMART CONNECT: Intelligently chooses the best available band for each device. Wi-Fi 6 Made Faster, Broader, and Smarter
AX6000 8-Stream Wi-Fi 6 Router
MR90X Features:
Super Fast Wi-Fi 6 to 6Gbps:
– Armed with 160 MHz channels and 1024-QAM(1), MR90X provides dramatically faster wireless connections. The speeds goes up to 6000Mbps – 4804Mbps on 5GHz and 1148Mbps on 2.4GHz (2). MR90X is 2.3 x faster than 802.11ac 4×4 dual band router.
a) 160 MHz Channels: Double channel width for faster connections.
b) 1024-QAM: Boosts raw speeds by 25% compared to 256-QAM.
c) 4× Longer OFDM Symbol: Provides increased coverage and 11% faster speeds.
Wi-Fi 6: Upgrade More:
1/ Connect More: Connect 4× More Devices.
– Streaming or gaming on multiple devices brings more fun without dragging down performance. MR90X supports OFDMA and 4×4 MU-MIMO to power up your Wi-Fi by allowing multiple clients to transmit at the same time. This delivers 4× greater network capacity and efficiency in traffic-dense environments. (3)
2/ Less Interference: Reduce the Interference from Your Neighbors’ Wi-Fi.
– Interference from nearby wireless networks may cause issues with your signal, especially when you live in an apartment or close to your neighbors. MR90X supports BSS Coloring to mark the data frames from different APs. This helps minimize the signal interference from your neighbors to improve transmission efficiency. (1)
3/ Energy Efficient: Eco-Friendly Power Saving.
– Target Wake Time reduces power consumption for your mobile and IoT devices during data transmissions to extend your devices’ battery life. (1)
Wi-Fi Goes Farther with 8 High-Gain Antennas:
– Eight powerful high-gain antennas armed with advanced wireless technology provide strong signals throughout your home. Beamforming detects your connected devices and concentrates wireless signal strength towards them, making your connections more stable.
Multi-Gig Speeds, Wired and Wireless:
– A 2.5Gbps port and 1Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.
Robust Quad-core Processor Minimizes Buffering and Lag:
– Powered by a robust Quad-core 1.6GHz processor, MR90X handles massive data throughput, allowing numerous bandwidth-intensive tasks to run smoothly at the same time and enables stable connections for up to 256 devices. (5)
Smart Connect Assigns Devices to the Best Band Automatically:
– Smart Connect allows each of MR90X’s wireless bands to use the same wireless settings. MR90X balances network demand and assigns your devices to the band with the best signal and speed. This keeps your devices always running optimally when you walk around your home.
The Latest WPA3 Protects Your Personal Network:
– The latest security standard, WPA3, offers improved comprehensive Wi-Fi protection to defend your devices and private information against brute-force attacks. (4)
1/ Protect Against Brute-Force Attacks: Delivers robust protection even when you are using a weak password.
2/ Advanced Forward Secrecy: Prevents data from being snooped even if a cracker compromises a session’s secret keys.
3/ Unbreakable 128-Bit Encryption: Creates an active defense against security threats and intruders.
Protect Your Kids When They’re Online:
– Easily manage your kids’ online time and content to create a healthy online environment for all.
a) Create User Profiles: Create a profile for each family member you would like to manage. Assign devices to the profile to set access controls and time limits for them.
b) Online Time Limits: Set daily limits on how long your kids spend online and prevent them from accessing the internet on their devices while doing homework or after bedtime.
c) Block Inappropriate Websites: Simply set a blacklist to block inappropriate sites for your children.
d) Pause Internet Connection: Suspend family members’ internet connections to take a break from the virtual world to enjoy some family time.
Easy Setup and Management via the MERCUSYS App:
– Without needing technical knowledge or reading installation instructions in advance, just follow the on-screen directions with the MERCUSYS app to set up your router in minutes. The MERCUSYS app helps you set and manage your Wi-Fi at home or away through your iOS or Android devices.
Multi-Mode for Flexible Application:
1/ Router Mode: Creates a wireless network for all your Wi-Fi devices.
2/ Access Point Mode: Extends a wired network and makes it wireless.
Support ISP Preset (Agile Config):
– Mercusys provides ISPs with Agile Config Tools to customize the default settings of devices one at a time or in batches. The flexible settings include adding a logo, WAN connection type, SSID, password, time zone, language, and more.
Support TR-069 Remote Management:
– Powered by TR-069, get the highly customizable and remote management of your devices. Put MERCUSYS TR-069 devices into an existing system, or build your private ACS system for high scalability in the future. Notes:
(1) Use of 802.11ax (Wi-Fi 6), and features including OFDMA, 160 MHz Channel, MU-MIMO, 1024-QAM, BSS Coloring, and Target Wake Time(TWT) requires clients to also support the corresponding features. Actual power reduction by Target Wake Time may vary as a result of network conditions, client limitations, and environmental factors. The 160 MHz bandwidth may be unavailable in the 5GHz band in some regions/countries due to regulatory restrictions.
(2) Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
(3) The 802.11ax white paper defines standardized modifications to both the IEEE 802.11 physical layers (PHY) and the IEEE 802.11 Medium Access Control (MAC) layer as enabling at least one mode of operation capable of supporting improvement of at least four times the average throughput per station (measured at the MAC data service access point) in a dense deployment scenario.
(4) Use of WPA3 requires clients to also support WPA3.
(5) 256 devices is the combined total connections for 2.4GHz and 5GHz under laboratory conditions.
(6) Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions. Specifications:
Wireless
– Wireless Standards: Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
– Wi-Fi Speeds: 4804Mbps (5GHz) + 1148Mbps (2.4GHz)
– Reception Sensitivity:
a) 11g 6Mbps: -97dBm
b) 11g 54Mbps: -79dBm
c) 11n HT40 MCS7: -74dBm
d) 11n HT20 MCS7: -77dBm
e) 11a 6Mbps: -97dBm
f) 11a 54Mbps: -79dBm
g) 11ac VHT20 MCS8: -75dBm
h) 11ac VHT40 MCS9: -71dBm
i) 11ac VHT80 MCS9: -67dBm
j) 11ax VHT20 MCS11: -67dBm
k) 11ax VHT40 MCS11: -64dBm
l) 11ax VHT80 MCS11: -61dBm
– Transmission Power:
a) 2.4GHz < 20dBm (EIRP)
b) 5GHz < 23dBm (band1, band2)
c) 5GHz < 30dBm (band3)
– Wireless Security: WPA / WPA2-Personal, WPA2 / WPA3-Personal
– Wireless Functions: Enable/Disable Wireless Radio, WMM
Software
– WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP
– Management: Access Control, Local Management, Remote Management
– DHCP: Server, DHCP Client List
– NAT Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
– Firewall Security: SPI Firewall, IP and MAC Address Binding
– Guest Network: 2.4GHz Guest Network, 5GHz Guest Network
– VPN Sever: OpenVPN, PPTP supported
Hardware
– Interfaces: 1 x 2.5Gbps WAN/LAN Port + 1 x Gigabit WAN/LAN Port + 2 x Gigabit LAN Ports
– Button: Reset/WPS Button
– Antenna Type: 8 x Fixed Omni-Directional Antennas
Others
– Environment:
a) Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
b) Operating Humidity: 10% – 90% Non-Condensing
c) Storage Humidity: 5% – 90% Non-Condensing What’s in the box
1 x Mercusys MR90X AX6000 8-Stream Wi-Fi 6 Router
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
