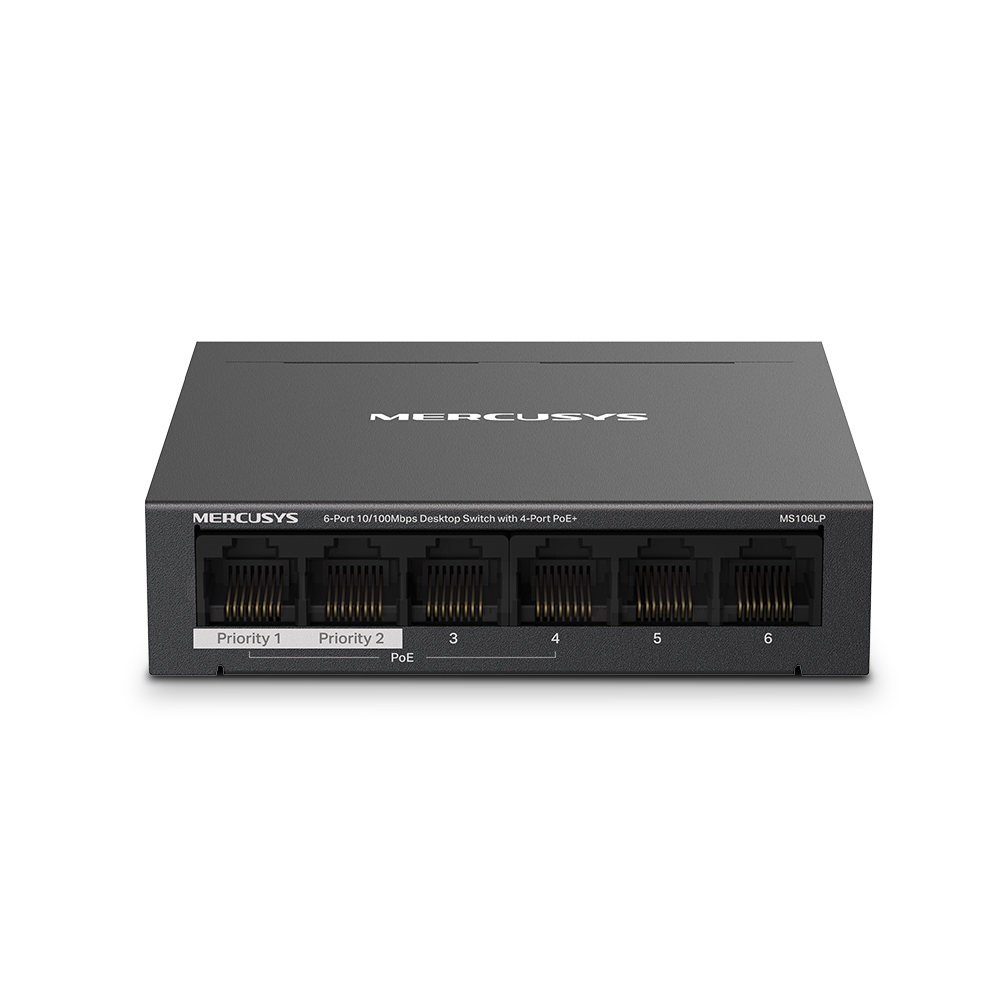

Mercusys MS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

MS106LP
– 6 Ports: 6 x 10/100Mbps RJ45 ports with 4 PoE+ ports
– Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
– High Power PoE+: Support PoE Power up to 30W for each PoE port and 40W for all PoE ports (1)
– 2 x Uplink Ports: MS106LP provides 2 x uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
– Long-Range up ...to 250m: Increases PoE transmission distance to 250m by Extend Mode (1)
– Isolation Mode: One click to divide traffic for specific ports for stability and security
– Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
– Durable Metal Casing: Allows for efficient heat dissipation and long network life
– Plug and Play: Simple to use and saves time and effort
– PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+
MS106LP Features:
4 PoE+ Ports (40W Budget) for Network Deployment:
– Ports 1-4 support PoE+, and each of them supports a maximum of 30W and is compliant with the 802.3af/at Powered Devices. MS106LP provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 40W PoE power budget (1) for the 4 x PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet: Two Cables in One:
– No Fuss: No need for electricians; simplify installation and deployment.
– Cost-Efficiency: Getting rid of extra cables and power adapters will save money on infrastructure.
– Flexibility: Deployment in complex situations is made possible by more placement possibilities.
– Power Management: Improves power usage while intelligently protecting your gadgets from power surges.
– IEEE 802.3af/at: PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250m with Extend Mode (2):
– Extend Mode (2) increases PoE transmission distance to 250m. MS106LP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation:
– With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS106LP provides 2 x uplink ports when turning on the isolation mode.
– Port Prioritization: Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
– PoE Auto Recovery: The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
– Plug and Play: MS106LP offers auto-negotiation (10/100M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent:
– MS106LP’s durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life. Notes:
1) PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
2) The speed of the ports in extend mode will downgrade to 10Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. Specifications:
Hardware
– PoE Ports: RJ45
a) Standard: Compliant with 802.3 af/at Powered Devices
b) PoE Ports: Port 1- Port 4
c) PoE Power Budget: 40W
– Interfaces: 6 x 10/100Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
– External Power Supply: External Power Adapter (Output: 53.5V/0.81A)
– Installation: Desktop, Wall Mount
– Standards and Protocols: IEEE 802.3x Flow Control
– Data Rates:
a) 10/100Mbps at Half Duplex
b) 20/200Mbps at Full Duplex
– Jumbo Frame: 2KB
– Mac Address Table: 2K
– Max Power Consumption:
a) 1.87W (220V / 50Hz, no PD connected)
b) 44.8W (220V / 50Hz, with 40W PD connected)
– Max Heat Dissipation:
a) 6.34 BTH/h (no PD connected)
b) 152.32 BTH/h (with 40W PD connected)
Others
– Operating Temperature: 0 Degree Celsius – 40 Degree Celsius
– Storage Temperature: -40 Degree Celsius -70 Degree Celsius
– Operating Humidity: 10% – 90% RH non-condensing
– Storage Humidity: 5% – 95% RH non-condensing What’s in the box
1 x MER-MS106LP (6-Port 10/100Mbps Desktop Switch with 4-Port PoE+)
1 x Power Adapter
1 x Quick Installation Guide
