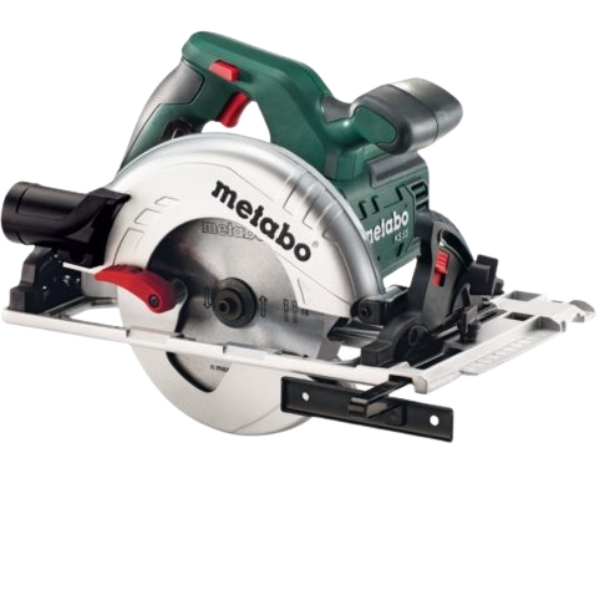

Metabo – Circular Saw

• Robust circular saw can be used directly on guide rails from Metabo and other manufacturers for precise, long cuts
• Light guide plate made from die-cast aluminum
• Grip area with non-slip soft-grip surface
• Clearly visible cutting indicator for precise sawing after the initial cut
• 0° position re-adjustable for highest cutting precision
• Extraction possibility by means of connecting an all-purpose vacuum cleaner
• Adjustment of the machine without tools for ...using with the precision guide rail

Specifications:
– Rated input power: 1200 W
– Output power: 670 W
– Maximum cutting depth at 90°: 55 mm
– Maximum cutting depth at 45°: 39 mm
– Max. cutting depth with guide rail: 50 mm
– Saw blade Ø x bore: 160mm x 20 mm
– Swivel range from / to:? 0 / + 47 °
– No-load speed: 5600 rpm
– Revolutions at rated load: 4400 rpm
– Max. cutting speed: 47 m/s
– Torque: 5 Nm
– Weight (without power cable): 4 kg
– Cable length: 4 m Vibration:
– Sawing chipboards: 3.4 m/s²
– Uncertainty of measurement K: 1.5 m/s² Noise emission:
– Sound pressure level: 93 dB(A)
– Sound power level (LwA): 104 dB(A)
– Uncertainty of measurement K: 3 dB(A) What’s in the box
– Carbide circular saw blade (18 teeth)
– Parallel guide
– Extraction connector
– Hexagonal wrench
