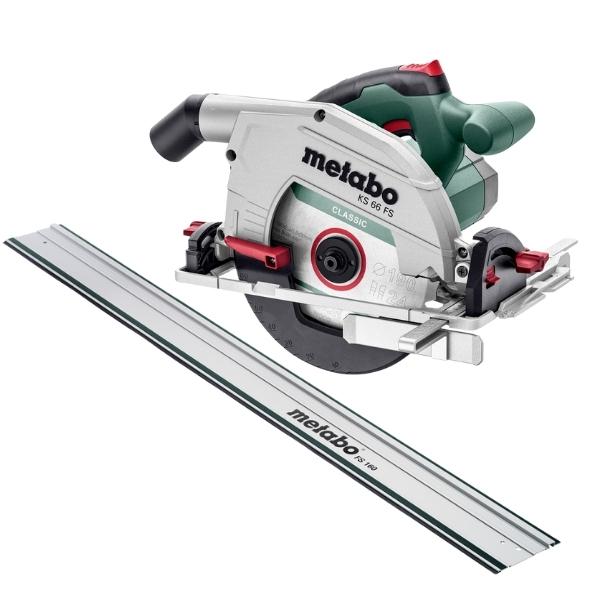

Metabo – Circular Saw KS 66 FS with Guide Rail FS160

Circular Saw KS 66 FS (601066000):
– Robust circular saw, can be used directly on guide rails from Metabo and also Mafell, Bosch, Festool, Makita, HiKOKI, Hilti and other manufacturers
– Fast, precise cross cuts thanks to easy coupling with a Metabo cross cutting rail
– Light guide plate made from die cast aluminium
– Grip area with non-slip soft-grip surface
– Clearly visible cutting indicator for precise sawing after initial cut
– 0° position re-adjustable for highest cutting precision
– Extraction possibility ...by means of connecting an all-purpose vacuum cleaner
– Sawdust ejection nozzle for any working position can be rotated and locked individually
– Precision guide rail available as accessory Characteristics:
– Rated input power1500 W
– Output power840 W
– Maximum cutting depth at 90°66 mm / 2 5/8 “
– Maximum cutting depth at 45°47 mm / 1 7/8 “
– Max. cutting depth with guide rail61 mm / 2 13/32 “
– Saw blade Ø x bore190 x 30 mm // 7 1/2 x 1 3/16 “
– Swivel range from / to:? 0 / + 47 °
– No-load speed5000 rpm
– Revolutions at rated load3800 rpm
– Max. cutting speed50 m/s
– Weight (without power cable)4.9 kg / 10.8 lbs
– Cable length4 m / 13 ft Noise emission:
– Sound pressure level95 dB(A)
– Sound power level (LwA)106 dB(A)
– Uncertainty of measurement K3 dB(A) Includes:
– Carbide circular saw blade (24 teeth)
– Parallel guide
– Hexagonal wrench Guide Rail FS 160 (629011000):
– For straight and secure guidance
– Splinter protection reduces breakout when sawing
– Adhesive coating for safe, non-slip surface contact as well as protection of the workpiece surface
– With holes to fix the rail to the workpiece and for hanging storage
– Can be extended in length with the second guide rail and FSV connector (accessory)
– Compatible with many circular saws of other manufacturers that are suited for use with guide rails (Hikoki, Festool, Bosch, Makita, Hilti and others) What’s in the box
1 x Metabo – Circular Saw KS 66 FS
1 x Carbide circular saw blade (24 teeth)
1 x Parallel guide
1 x Hexagonal wrench
1 x Guide Rail FS 160
