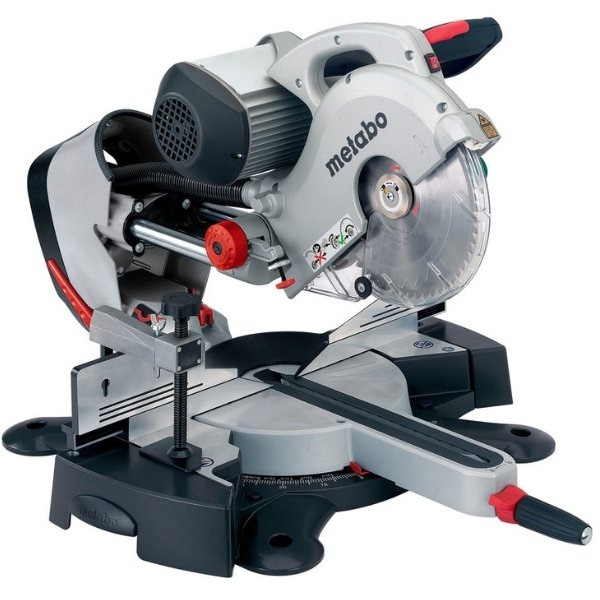

Metabo – KGS 254 I PLUS (0102540200) Mitre Saw

Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
Sliding function for wide work pieces.
Quiet induction motor with motor brake and overload protection – maintenance-free and robust.
Easy transport thanks to ergonomically-designed handles and saw head lock.
Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
Metabo Quick for changing saw blades without tools.
Soft start for long service life ...of motor and drive.
Fast and precise setting of common angles using stop points.
Sliding high rear fence profiles for safe sawing.
Material clamp for secure fixing of the workpiece from the top or front.
Integrated, pull-out table width extensions made from die-cast Aluminium.
Depth guide for easy creation of grooves.
All scales and operating elements are visible from the working position and can be operated intuitively. Characteristics:
Dimensions: 930 x 690 x 590 mm
Support surface: 1000 x 505 x 365 mm
Maximum cutting width|: 90°/45°305 / 214 mm
Maximum cutting depth at: 90°/45°90 / 54 mm
Cutting capacity: 90°/90°305 x 90 mm
Cutting capacity: 45°/45°214 x 54 mm
Turntable setting left/right: 47 / 60 °
Saw blade tilt left/right: 46 / 22.5 °
Saw blade: 254 x 30 mm
Rated input power: 1600 W
Rated input power S1 100%: 1600 W
Rated input power S6 20%: 1800 W
No-load speed: 4650 rpm
Revolutions at rated load: 4650 rpm
Cutting speed: 62 m/s
Weight: 37.4 kg
Cable length: 2.2 m Noise emission:
Sound pressure level: 86 dB(A)
Sound power level (LwA): 95 dB(A)
Uncertainty of measurement K: 3 dB(A) Scope of Delivery:
Carbide saw blade (60 teeth)
2 Table length extensions
Material clamp
Adapter 35/58 mm
