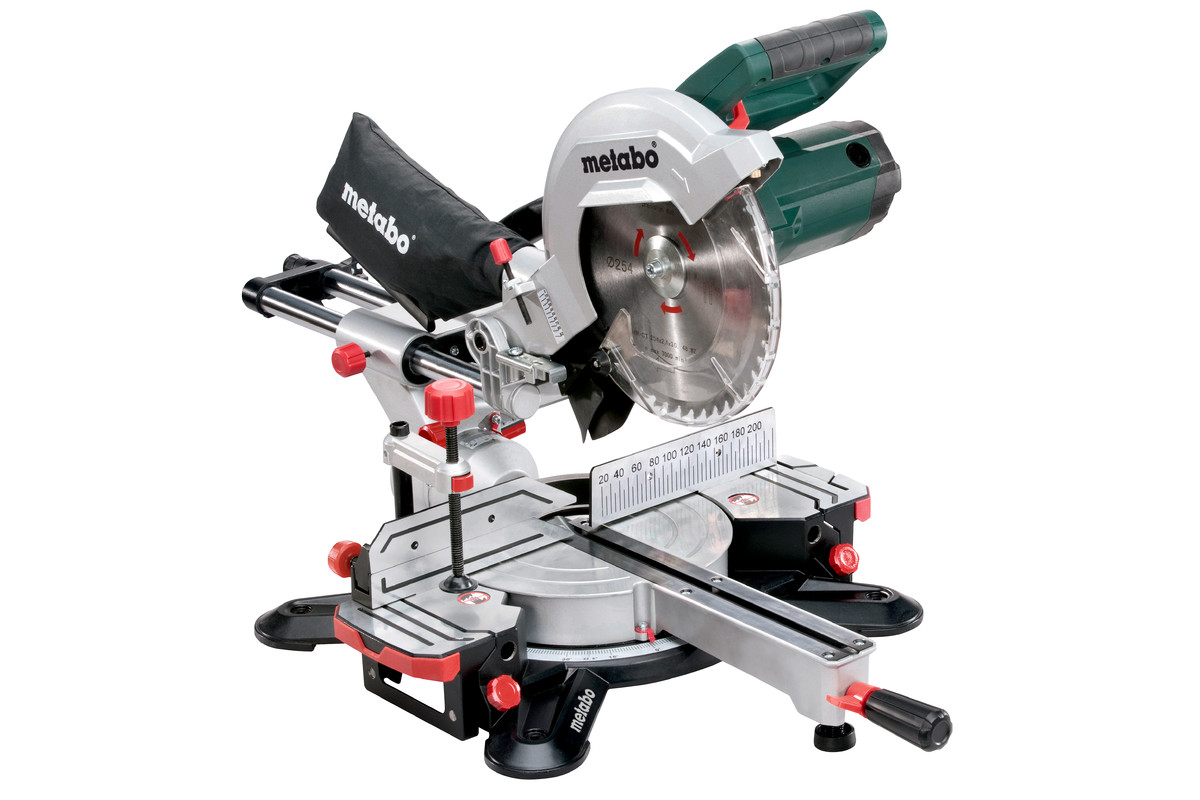

Metabo – KGS 254 M (602540000) Mitre Saw

Sliding function for wide work pieces.
Compact light weight, suitable also for one-handed transport
Robust die-cast aluminium design for the highest demands
Easy transport thanks to ergonomically-designed handles and saw head lock
Effective dust extraction via integrated dust scoop
Fast and precise setting of common angles using stop points
Laser for exact display of the cutting line (mains powered, no batteries required)
Adjustable and extendable table width extensions, removable to put long panels, ...slabs etc. underneath
Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
Sliding high rear fence profiles for safe sawing
Material clamp for secure fixing of the work piece from the top or front
Depth guide for easy creation of grooves
Saw head can be inclined to the left, with additional angle range for undercuts
All scales and operating elements are visible from the working position and can be operated intuitively
Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required. Characteristics:
Dimensions: 790 x 515 x 515 mm / 2.6 x 1.7 x 1.7 ft mm
Support surface: 340 x 775 mm
Maximum cutting width 90 degree/45 degree: 305 / 205 mm // 12 / 8 1/16″
Maximum cutting depth at 90°/45°: 92 / 47 mm // 3 5/8 / 1 13/16 “
Cutting capacity 90 degree/90 degree: 305 x 92 mm / 12 x 3 5/8″
Cutting capacity 45°/45°: 205 x 47 mm / 8 1/16 x 1 27/32″
Turntable setting left/right: 47 / 47 degree
Saw blade tilt left/right: 47 / 2 degree
Saw blade: 254 x 30 mm / 10 x 1.181″
Rated input power S1 100%: n 1450 W
Rated input power S6 20%: 1800 W
No-load speed: 4500 rpm
Revolutions at rated load: 3150 rpm
Cutting speed: 60 m/s / 197 ft/s m/s
Weight: 16.3 kg / 36 lbs kg
Cable length: 2 m / 7 ft m. Noise emission:
Sound pressure level: 99 dB(A)
Sound power level (LwA): 106 dB(A)
Uncertainty of measurement K: 3 dB(A) What’s in the box
1 x Metabo – KGS 254 M (602540000) Mitre Saw
Consists of the following:
Carbide saw blade (48 teeth)
Material clamp
Tool for saw blade change
Cable winder
Chip Collection Bag
2 Table length extensions
Length Guide
