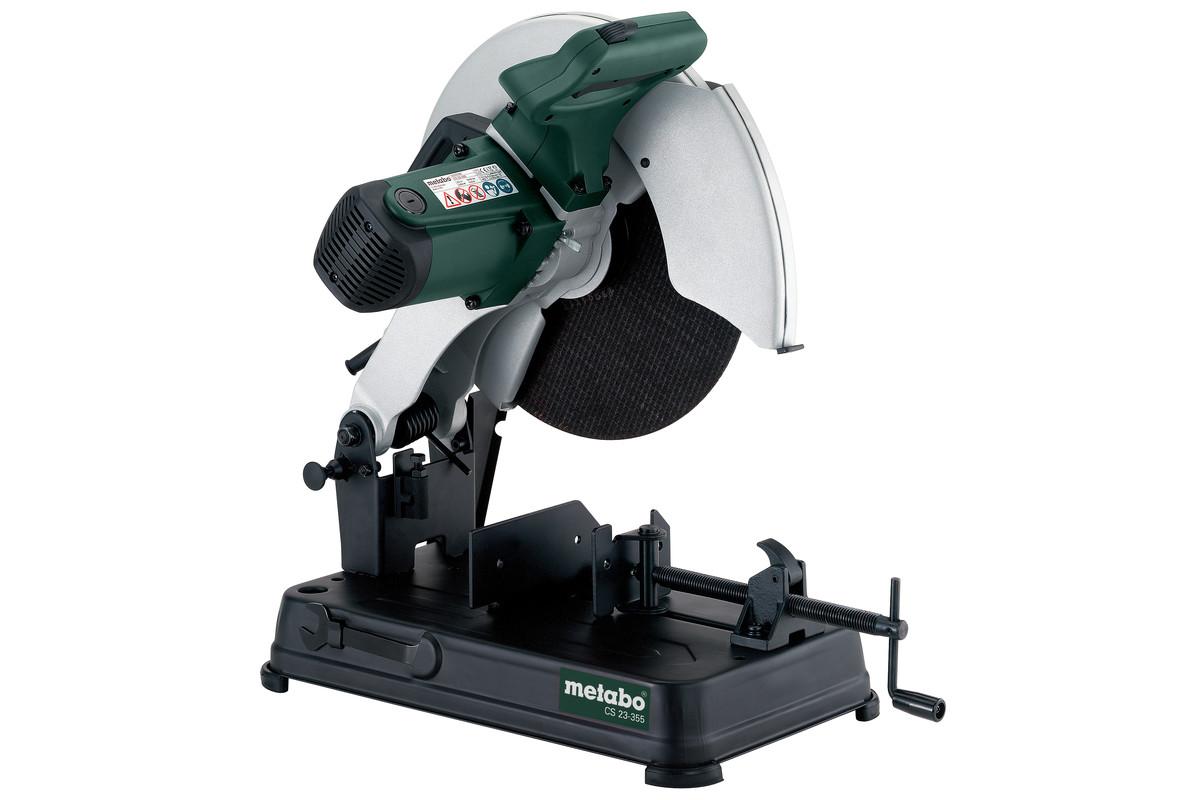

Metabo – Metal Chop Saw – CS 23-355 (602335000)

Features:
– For single-phase alternating current.
– Powerful and fast cutting for profiles, pipes and rods made of steel, cast iron, aluminium and other non-ferrous metals.
– Motor and gear with ball bearing for high loads.
– Spindle lock for easy disc change.
– Quick clamping device with variable mitre conversion from -15° up to 45°.
– Easy to transport due to the built-in handle and locking device.
– High safety thanks to swivelling cutting guard.
– Storage for a double-ended ...wrench at the machine table.
– Safe working thanks to the adjustable spark guide plate.
– Adjustable cutting depth limiter. Specifications:
– Grinding wheels (Ø x bore): 355 x 25.4 mm / 14 x 1 “
– Torque: 18 Nm / 160 in-lbs
– No-load speed: 4000 rpm
– Rated input power: 2300 W
– Cutting capacity steel bars: 65 mm / 2 1/2 “
– Cutting capacity pipes: 125 mm / 5 “
– Cutting capacity steel sections: 115 x 130 mm / 4 1/2 x 5 1/8 “
– Maximum opening of vice jaws: 238 mm / 9 3/8 “
– Dimensions of the base plate: 468 x 282 mm / 18 7/16 x 11 3/32 “
– Transport height: 400 mm / 15 3/4 “
– Weight: 16.9 kg / 37 lbs
– Cable length: 2.7 m / 9 ft Noise emission:
Sound pressure level: 91 dB(A)
Sound power level (LwA): 104 dB(A)
Uncertainty of measurement K: 3 dB(A) Scope of Delivery:
Open-ended ring spanner
Inner support flange
Flange nut What’s in the box
1 x Metabo – Metal Chop Saw – CS 23-355 (602335000)
