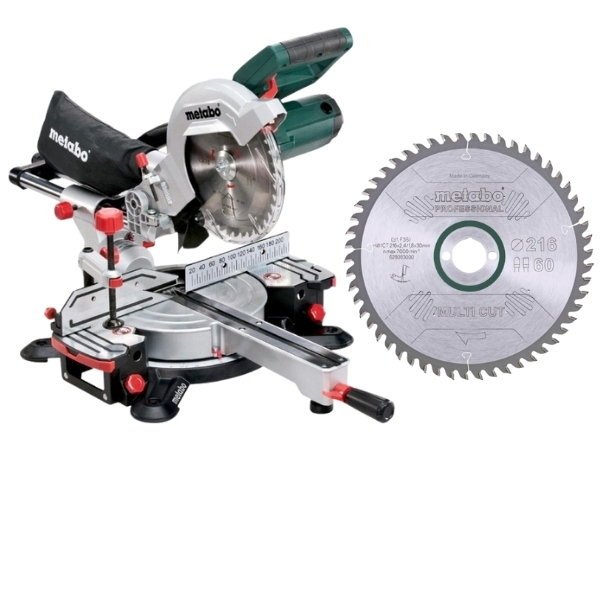

Metabo – Mitre Saw KGS 216 M (619260000) & Saw Blade Multi-Cut (628083000)

Metabo – KGS 216 M (619260000) Mitre Saw:
– Sliding function for wide workpieces.
– Compact lightweight, suitable also for one-handed transport.
– Robust die-cast aluminium design for the highest demands.
– Easy transport thanks to ergonomically designed handles and saw headlock.
– Effective dust extraction via integrated dust scoop.
– Fast and precise setting of common angles using stop points.
– Laser for exact display of the cutting line (mains powered, no batteries required).
– Adjustable and extendable table width extensions, removable ...to put long panels, slabs etc. underneath.
– Bright LED work light for illumination of the cutting line (mains powered, no batteries required).
– Sliding high rear fence profiles for safe sawing.
– Material clamp for secure fixing of the workpiece from the top or front.
– Depth guide for easy creation of grooves.
– Saw head can be inclined to the left, with an additional angle range for undercuts.
– All scales and operating elements are visible from the working position and can be operated intuitively.
– Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required. Characteristics:
– Dimensions: 760 x 475 x 340 mm / 2.5 x 1.6 x 1.1 ft mm
– Support surface: 345 x 730 mm
– Maximum cutting width: 90°/45°305 / 205 mm / 12 / 8 1/16″
– Maximum cutting depth at: 90°/45°65 / 36 mm / 2 9/16 / 1 13/32″
– Cutting capacity: 90°/90°305 x 65 mm / 12 x 2 1/2″
– Cutting capacity: 45°/45°205 x 36 mm / 8 1/16 x 1 13/32″
– Turntable setting left/right: 47 / 47 °
– Saw blade tilt left/right: 47 / 2 °
– Saw blade: 216 x 30 mm / 8 1/2 x 1.181″
– Rated input power S1 100%: 1200 W
– Rated input power S6 20%: 1500 W
– No-load speed: 5000 rpm
– Revolutions at rated load: 3750 rpm
– Cutting speed: 57 m/s / 187 ft/s m/s
– Weight: 13.5 kg / 29.8 lbs kg
– Cable length: 2 m / 7 ft m Noise emission:
– Sound pressure level: 97 dB(A)
– Sound power level (LwA): 104 dB(A)
– Uncertainty of measurement K: 3 dB(A) Includes:
– Carbide saw blade (40 teeth)
– Material clamp
– Tool for saw blade change
– Cable winder
– Chip Collection Bag
– 2 Table length extensions
– Length Guide Metabo – Saw Blade Multi-Cut Z60 FZ/TZ, 5°NEG – (628083000):
– Universal use for demanding materials
– For the highest standards in cutting quality, e.g. for laminate, thin-walled plastic, aluminium, copper and bronze materials
– Ideally suited for many interior work applications
– Perfect cutting results, also for cross-cuts in solid wood, coarse, coated or veneered chipboards, MDF
– The circular saw must have a very high-performance power
– Particularly long tool life thanks to best carbide quality and finely-ground teeth
– Precise, low-noise and vibration-minimised cuts thanks to lasered expansion slots (and partially laser ornaments) as well as lasered steel blades made from sintered steel
– Secondary holder for circular saw blades with Ø 216, 250, 254 and over 300 mm Characteristics:
– Diameter x cutting width x bore: 216 x 2.4 x 30 mm
– Material: HW/CT
– Number of teeth: 60
– Tooth shape: FZ/ TZ
– Steel blade thickness: 1.8 mm
– Rake angle: 5° neg.
– Suitable for: KS 216 M Lasercut / KGS 216 M / KGS 216 Plus / KGSV 216 M / KGSV 72 Xact / KGSV 72 Xact SYM What’s in the box
1 x Metabo – KGS 216 M (619260000) Mitre Saw
1 x Metabo – Saw Blade Multi-Cut Z60 FZ/TZ, 5°NEG – (628083000)
