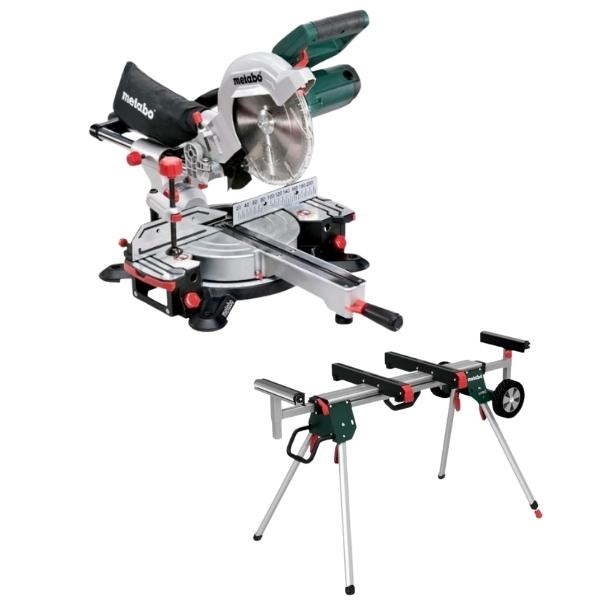

Metabo – Mitre Saw KGS 254 M & Stand KSU 251

Metabo – Mitre Saw KGS 254 M (602540000)
– Sliding function for wide workpieces.
– Compact lightweight, suitable also for one-handed transport.
– Robust die-cast aluminium design for the highest demands.
– Easy transport thanks to ergonomically-designed handles and saw headlock.
– Effective dust extraction via integrated dust scoop.
– Fast and precise setting of common angles using stop points.
– Laser for exact display of the cutting line (mains powered, no batteries required).
– Adjustable and extendable table width extensions, removable to ...put long panels, slabs etc. underneath.
– Bright LED work light for illumination of the cutting line (mains powered, no batteries required).
– Sliding high rear fence profiles for safe sawing.
– Material clamp for secure fixing of the workpiece from the top or front.
– Depth guide for easy creation of grooves.
– Saw head can be inclined to the left, with an additional angle range for undercuts.
– All scales and operating elements are visible from the working position and can be operated intuitively.
– Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required. Characteristics:
– Dimensions: 790 x 515 x 515 mm / 2.6 x 1.7 x 1.7 ft mm
– Support surface: 340 x 775 mm
– Maximum cutting width 90 degree/45 degree: 305 / 205 mm // 12 / 8 1/16″
– Maximum cutting depth at 90°/45°: 92 / 47 mm // 3 5/8 / 1 13/16 “
– Cutting capacity 90 degree/90 degree: 305 x 92 mm / 12 x 3 5/8″
– Cutting capacity 45°/45°: 205 x 47 mm / 8 1/16 x 1 27/32″
– Turntable setting left/right: 47 / 47 degree
– Saw blade tilt left/right: 47 / 2 degree
– Saw blade: 254 x 30 mm / 10 x 1.181″
– Rated input power S1 100%: n 1450 W
– Rated input power S6 20%: 1800 W
– No-load speed: 4500 rpm
– Revolutions at rated load: 3150 rpm
– Cutting speed: 60 m/s / 197 ft/s m/s
– Weight: 16.3 kg / 36 lbs kg
– Cable length: 2 m / 7 ft m. Noise emission:
– Sound pressure level: 97 dB(A)
– Sound power level (LwA): 106 dB(A)
– Uncertainty of measurement K: 3 dB(A) Includes:
– Carbide saw blade (48 teeth)
– Material clamp
– Tool for saw blade change
– Cable winder
– Chip Collection Bag
– 2 Table length extensions
– Length Guide Metabo – Mitre Saw Stand – KSU 251 (629005000):
– Light and robust stand for mitre saws with trolley function for mobile use also with a mounted saw.
– Quickly ready to use thanks to lockable folding legs and adjustment option for safe positioning.
– Extendable workpiece supports with rollers and folding guide for precise cutting in series.
– Including machine carriers (installation without tools) makes it suitable for all the conventional mitre saws of well-known manufacturers.
– Overall length: 127 cm – 250 cm
– Height of workpiece supports: 92 cm – 99 cm
– Maximum weight load in the central part: 250 kg
– Weight: 23 kg What’s in the box
1 x Metabo – Mitre Saw KGS 254 M (602540000)
1 x Carbide saw blade (48 teeth)
1 x Material clamp
1 x Tool for saw blade change
1 x Cable Winder
1 x Chip Collection Bag
2 x Table length extensions
1 x Length Guide
1 x Metabo Mitre Saw Stand – KSU 251 (629005000)
