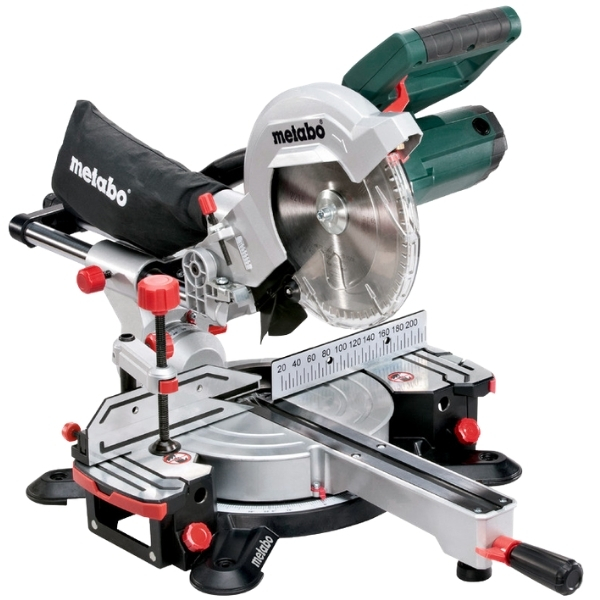

Metabo – Mitre Saw – KGSV 216 M (619261000)

Description:
– Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
– With saw blade “multi cut” (flat/trapezoidal tooth) for high cutting quality and long service life e.g. in laminate and aluminium profiles
– Sliding function for wide work pieces.
– Compact light weight, suitable also for one-handed transport
– Robust die-cast aluminium design for the highest demands
– Easy transport thanks to ergonomically-designed handles and saw head lock
– Effective ...dust extraction via integrated dust scoop
– Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
– Fast and precise setting of common angles using stop points
– Laser for exact display of the cutting line (mains powered, no batteries required)
– Adjustable and extendable table width extensions, removable to put long panels, slabs etc. underneath
– Bright LED work light for illumination of the cutting line (mains powered, no batteries required)
– Sliding high rear fence profiles for safe sawing
– Material clamp for secure fixing of the work piece from the top or front
– Depth guide for easy creation of grooves
– Saw head can be inclined to the left, with additional angle range for undercuts
– All scales and operating elements are visible from the working position and can be operated intuitively
– Easy saw blade change by means of spindle lock: No dismantling of the pendulum guard required Characteristics:
– Dimensions: 760 x 475 x 340 mm
– Support surface: 345 x 730 mm
– Maximum cutting width 90°/45°: 305 / 205 mm
– Maximum cutting depth at 90°/45°: 65 / 36 mm
– Cutting capacity 90°/90°: 305 x 65 mm
– Cutting capacity 45°/45°: 205 x 36 mm
– Turntable setting left/right: 47 / 47 °
– Saw blade tilt left/right: 47 / 2 °
– Saw blade: 216 x 30 mm
– Rated input power S1 100%: 1350 W
– Rated input power S6 20%: 1700 W
– No-load speed: 2500 – 5500 rpm
– Revolutions at rated load: 5500 rpm
– Cutting speed: 28 – 62 m/s
– Weight: 13.5 kg
– Cable length: 2 m Noise emission
– Sound pressure level: 97 dB(A)
– Sound power level (LwA): 104 dB(A)
– Uncertainty of measurement K: 3 dB(A) What’s in the box
1 x Metabo – KGSV 216 M Mitre Saw – (619261000)
1 x Carbide saw blade (60 teeth)
1 x Material clamp
1 x Tool for saw blade change
1 x Cable winder
1 x Chip Collection Bag
2 x Table length extensions
1 x Length Guide
