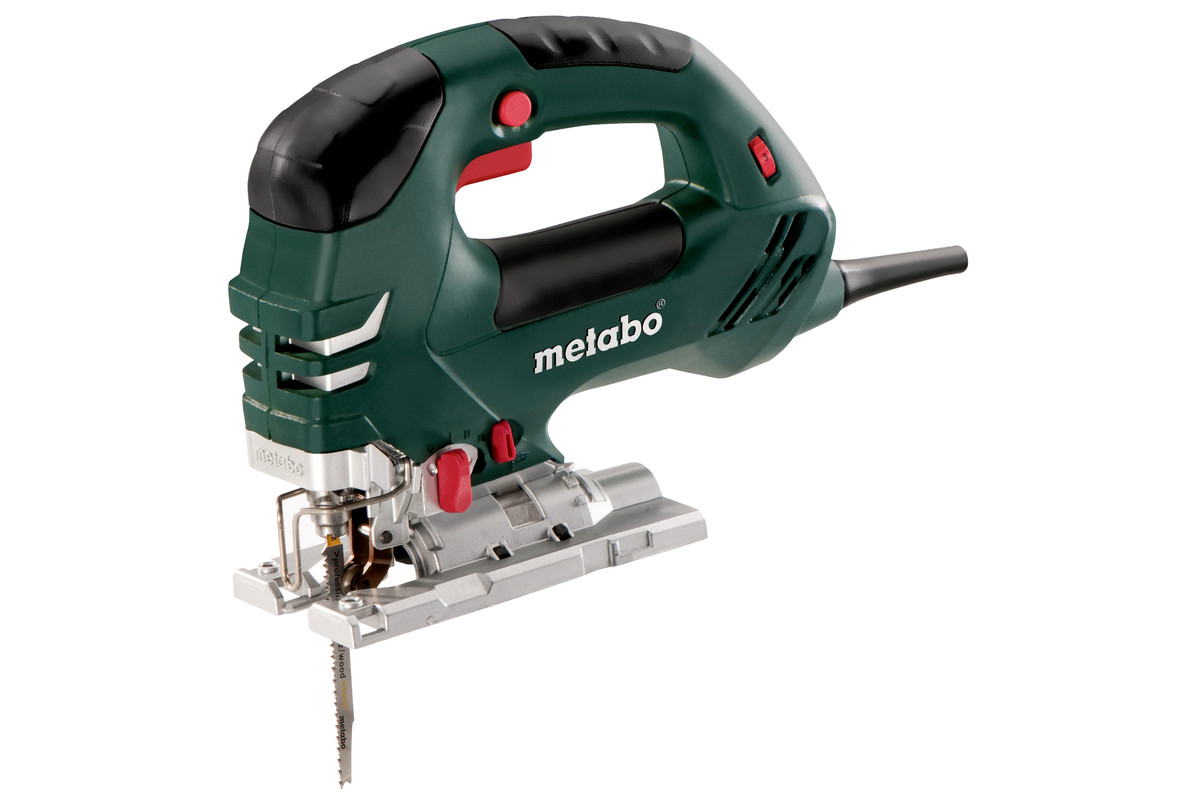

Extremely powerful jigsaw with VTC-Electronics for fast cuts into soft wood of up to 140 mm deep.
Precise and material-matched sawing due to the variable stroke rate, pendulum stroke and low-lying saw blade guidance with spring support.
Metabo Quick for tool-free saw blade change and with automatic ejection.
Selectable chip blowing function ensures free view of cutting line.
Vario Tacho Constamatic (VTC) Full-wave Electronics for work with materials requiring customised stroke rates, which remain constant under load.
Long service life thanks to optimum gear and motor design and robust die-cast aluminium gear housing.
Rated input power: 750 W
Output power: 420 W
Cutting depth wood: 140 mm / 5 1/2″
Cutting depth NF metal: 35 mm / 1 3/8″
Cutting depth sheet steel: 10 mm / 3/8″
Swivel range from / to: – 45 / + 45 °
Pendulum stroke levels: 4
Strokes in idle: 1000 – 3100 rpm
Saw blade stroke: 26 mm / 1 1/32″
Weight (without power cable): 2.5 kg / 5.5 lbs
Cable length: 4 m / 13 ft
Sawing wood: 10.4 m/s²
Sawing metal: 8.4 m/s²
Uncertainty of measurement K: 1.5 m/s²
Sound pressure level: 90 dB(A)
Sound power level (LwA): 101 dB(A)
Uncertainty of measurement K: 3 dB(A)
What’s in the box
1 x Metabo – STEB 140 (601402000) Jigsaw consists of:
