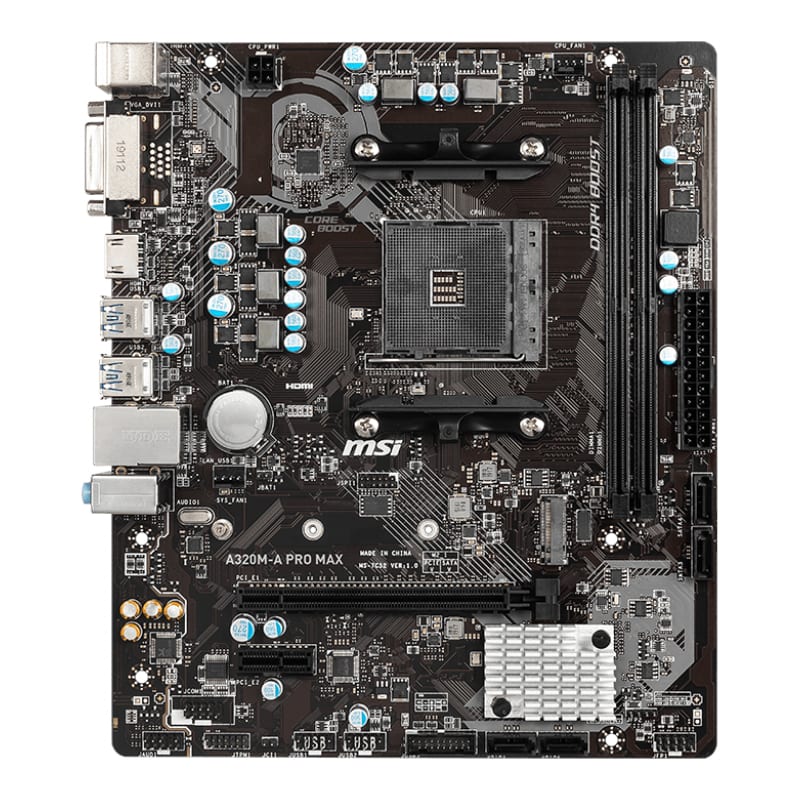

MSI A320M PRO-A MAX AMD AM4 Micro-ATX Gaming Motherboard – Black

DIY Friendly
MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. Stay Cool for Reliable System
Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with a solid and heavy heatsink. We’ve made sure to include enough fan headers with full control to allow you ...to cool your system any way you want. Fully Controllable in BIOS And Software
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Maximum Compatibility
Every MSI motherboards are certified by strict mechanic that feature convenient pin-header keep out zone, friendly SATA & USB location for compatibility with the widest range of components and devices, so DIY user can pick and choose the components they want. More than that, we offer a dedicated Qualified Vendor List (QVL) for the most critical part – memory. Combining with MSI DDR4 Boost technology, we provide the maximum compatibility, so you confirm and choose any gaming rig as you want. Features:
– Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ – Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
– Supports DDR4 Memory, up to 3200 (OC) MHz
– Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
– Audio Boost: Reward your ears with studio grade sound quality.
– X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
– Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Specifications:
– Socket: AM4
– CPU (Max Support): RYZEN
– Chipset: AMD® A320 Chipset
– DDR4 Memory: 1866/ 2133/ 2400/ 2667Mhz (by JEDEC) / 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
– Memory Channel: Dual
– DIMM Slots: 2
– Max Memory (GB): 64
– PCI-E X16: 1
– PCI-E Gen: Gen3
– PCI-E X1: 1
– SataIII: 4
– M.2 Slot: 1
– Raid: 0/1/10
– TPM (Header): 1
– Lan: 1x Realtek® 8111H
– USB 3.2 Ports (Front): 2(Gen1, Type A)
– USB 3.2 Ports (Rear): 4(Gen1, Type A)
– USB 2.0 Ports (Front): 4
– USB 2.0 Ports (Rear): 2
– Serial Ports(Front): 1
– Audio Ports (Rear): Realtek® ALC892 Codec
– DVI-D: 1
– HDMI: 1DirectX: 12
– Form Factor: m-ATX
– Operating System: Support for Windows® 10 64-bit / Windows® 7 64-bit*

• To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

What’s in the box
1 x MSI A320M PRO-A MAX AMD AM4 Micro-ATX Gaming Motherboard – Black
1 x SATA cables 15cm
1 x Driver CD
1 x IO Shield
1 x Quick Install Guide
