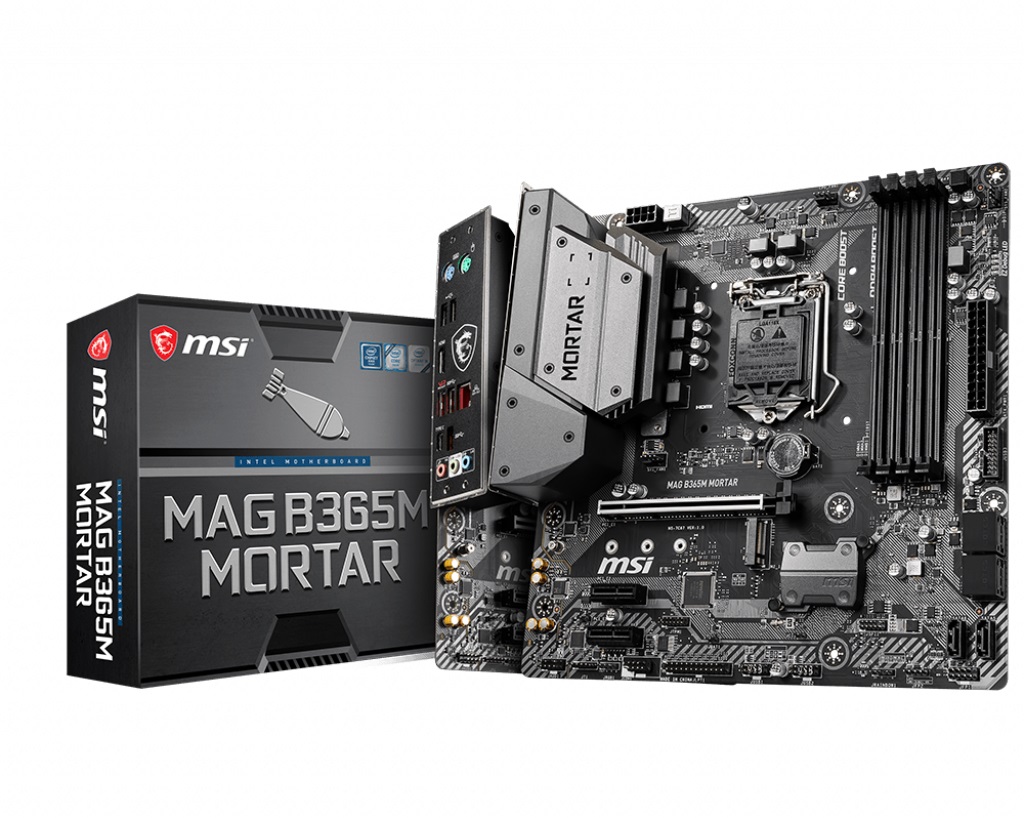

MSI B365M MORTAR

Processor:
Supports 9th/ 8th Gen Intel Core/ Pentium Gold/ Celeron Processors: for LGA 1151 socket

See supported Processors:

Chipset:
Intel B365 Chipset:

Memory:
– 4 x DDR4 Memory: Slots:, support up to 64GB
– Supports DDR4 2666/ 2400/ 2133 MHz
– Supports Dual-Channel mode
– Supports non-ECC, un-buffered Memory:
– Supports Intel Extreme Memory: Profile (XMP)

See supported Memory:
Slots:
– 1 x PCIe 3.0 x16 slot
– 2 x PCIe 3.0 x1 Slots:

ONBOARD GRAPHICS:
– 1 x HDMI port 1.4, supports a maximum resolution of 4096×2160@30Hz
– No Display support when using the Processor: model with suffix “F”

Storage:
– Intel B365 Chipset:
– 6 x SATA 6Gb/s ports1
– 1 x M.2 Slots: (Key M)
– Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 Storage: devices
– Intel Optane Memory: Ready2
– SATA1 port will be unavailable when installing SATA M.2 SSD in M.2 slot.Before using Intel Optane Memory: modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB:
Intel B365 Chipset:
– 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
– 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)

Audio:
– Realtek ALC892 Codec
– 7.1-Channel High Definition Audio:

LAN:
– 1 x Intel I219-V Gigabit LAN controller

Internal Connections:
– 1 x 24-pin ATX main power connector
– 1 x 8-pin ATX 12V power connector
– 6 x SATA 6Gb/s connectors
– 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
– 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
– 1 x 4-pin CPU fan connector
– 2 x 4-pin system fan connectors
– 1 x Front panel Audio: connector
– 2 x Front panel connectors
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x 3-pin RAINBOW LED connector
– 1 x 4-pin RGB LED connector
– 1 x TPM module connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper

Back Panel Ports:
– Mouse Port
– Intel GAMING LAN
– HD Audio: Connectors
– Keyboard Port
– USB 2.0 ports
– HDMI Port
– USB 3.1 Gen1 Type-A ports
– USB 3.1 Gen1 Type-A+C ports
– MSI MAG B365M MORTAR Back Panel Ports:

Domensions:
– 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
– Micro-ATX Form Factor

Mounting:
– 8 Mounting: holes

Operating System:
– Support for Windows 10 64-bit

What’s in the box
B365m Mortar Motherboard, Sata Cables x 2
Driver disk x1
IO Plate x1
